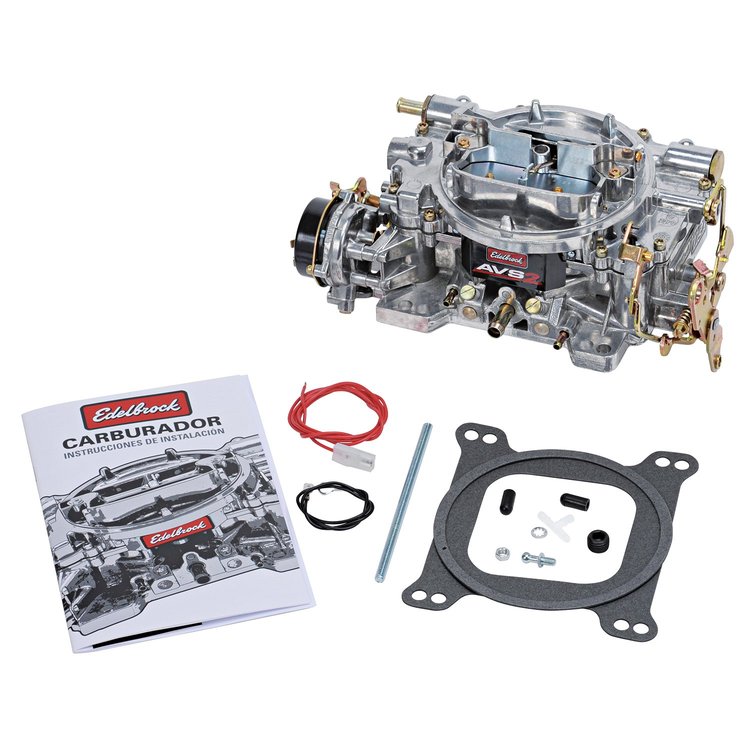

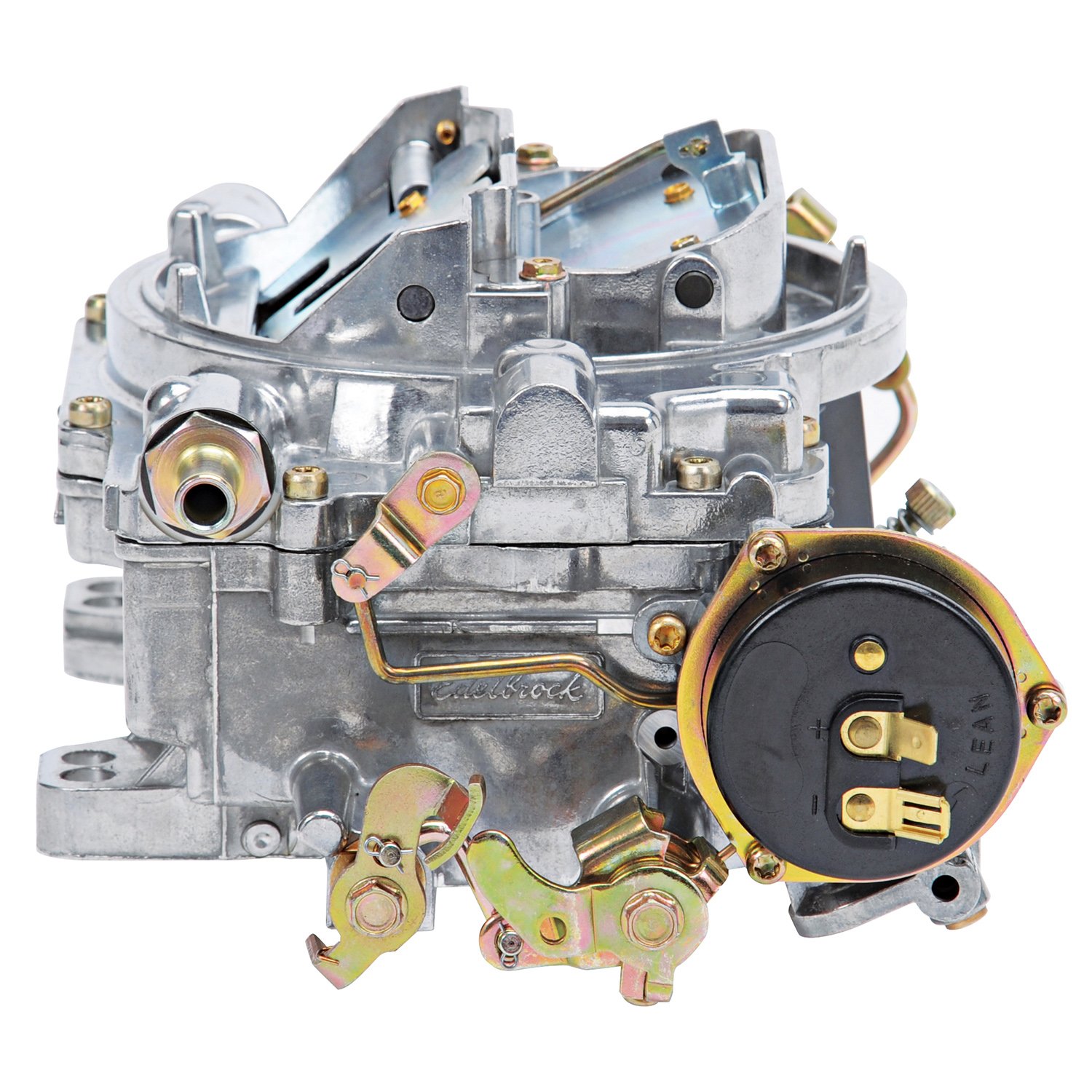

AVS2 800 CFM Four-Barrel Carburetor with Electric Choke [Satin]
InfoVehicle Info Needed
EDELBROCKPART NUMBER: 350-1913

AVS2 800 CFM Four-Barrel Carburetor with Electric Choke [Satin]

$56995
More than 10 available
ShippingShips Today
Lowest PriceLowest Price Guarantee

Items You Need

Single Feed Filtered Fuel Line for Edelbrock/Carter AFB Single Feed Carbs [Aluminum, Black]

JEGS

Single Feed Filtered Fuel Line for Edelbrock/Carter AFB Single Feed Carbs [Aluminum, Black]

Part Number : 555-15066
$4869$52.99
You Save$4.30
Single Feed Fuel Line for Edelbrock/Carter AFB Single Feed Carbs [Aluminum, Black]

JEGS

Single Feed Fuel Line for Edelbrock/Carter AFB Single Feed Carbs [Aluminum, Black]

Part Number : 555-15064
$4039$43.99
You Save$3.60
Red & Blue 5/8" Banjo Fitting -20 Thread to -06AN

JEGS

Red & Blue 5/8" Banjo Fitting -20 Thread to -06AN

Part Number : 555-100516
$1499$16.99
You Save$2.00
-06AN Carburetor to Mechanical Fuel Pump Line Kit

JEGS

-06AN Carburetor to Mechanical Fuel Pump Line Kit

Part Number : 555-100811
$5995

800 CFM
Electric Choke
AVS2 800 CFM Four-Barrel Carburetor
  • Electric Choke with Satin Aluminum Finish
  • Annular Flow Boosters for Better Fuel Atomization
  • Square Bore Flange with 1.75 in. Primary and Secondary Bores
  • Non-EGR Design
  • Gaskets Included

    Annular flow boosters are the reason this carburetor drives the way it does. Instead of a down-leg booster dumping raw fuel into the venturi, eight equally spaced orifices meter it in, which cleans up the flat spot most four-barrels have just off idle and sharpens throttle response through the midrange. There are no power valves to blow out on a backfire, and metering rods and springs can be swapped without pulling the carb or draining fuel.

    Edelbrock 1913 AVS2 Carburetor Features:

    • 800 CFM rating, four barrel, square bore flange.
    • Electric choke, satin aluminum finish, non-EGR.
    • 1.75 in. primary and secondary bores, 1.525 in. main venturi.
    • 0.104 in. primary and secondary jets, .065 x .052 metering rods.
    • Gaskets included. Calibrated for high-horsepower small-block and big-block builds.

    Emissions Note:

    This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

    CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

  • Since founder Vic Edelbrock Sr. began building performance intake manifolds in 1938, Edelbrock has grown into one of the most trusted names in American high-performance parts, from carburetors and intake manifolds to cylinder heads, crate engines, and EFI systems. JEGS has spent decades supplying Edelbrock components to racers, engine builders, and street enthusiasts, backing this extensive lineup with in-house technical support, fast shipping, and a Price Match Guarantee so you can choose proven Edelbrock parts with confidence.

    Show More

    AVS2 Series, The Next Generation Of Edelbrock Carburetors

    Edelbrock AVS2 carburetors feature annular flow primary boosters with enhanced calibration for improved off-idle and cruising performance. This design features eight equally spaced holes to improve fuel metering and atomization to eliminate any flat spots when transitioning from idle to throttle. Ideal for use with a wide variety of small-block and big-block engines with either dual-plane or single-plane intake manifolds. The AVS2 includes both timed and full vacuum ports for ignition advance.

    The elbrock AVS2 carburetors represent a refined evolution in fuel-delivery technology, engineered to eliminate flat spots and deliver smooth, efficient throttle response. These carbs feature annular-flow primary boosters—a design that utilizes eight uniformly spaced orifices to enhance fuel atomization and metering, resulting in seamless performance from idle through acceleration.

    Whether you're running a small-block or a big-block engine—paired with a dual-plane or single-plane intake—the AVS2 is calibrated for versatility and precision. It includes both timed and full vacuum ports to accommodate modern ignition systems.

    Why Choose AVS2?

    • Improved drivability: Annular boosters smooth out throttle transitions and offer crisp off-idle control.

    • Street-smart tuning: Compared to the older AVS model, the AVS2 shines in real-world driving conditions—offering better fuel economy, smoother cold starts, and superior low-RPM cruising.

    • Adaptable configurations: Available in 500-, 650-, and 800-CFM options, with choices in choke (manual or electric) and finish (satin, black, or chrome).

    This avs2 carburetor is a standout for anyone seeking a refined, all-around performance upgrade. If you’re installing an avs carb, you're gaining smoother throttle response, better fuel control, and street-ready flexibility. And if you're upgrading your ride with an avs2 carb, you’ll appreciate the combination of tunability, reliability, and drivability packed into these carbs.

    Experience a carburetor engineered not just for power, but for polished performance—every drive.

    Part TypeCarburetor
    Product LineEdelbrock AVS2 Carburetors
    BrandEDELBROCK
    Package Height6.6
    Package Width7.3
    Package Length13.4
    Weight8.8 PG
    Part CategoryPerformance Parts
    Secondary Jet Diameter0.104
    Flange ShapeSquare
    Gasket Or Seal IncludedYes
    Carburetor Height3.25 in (82.55 mm)
    Carburetor FinishSatin
    MaterialAluminum
    Maximum Flow Rating800
    Choke TypeElectric
    Barrel Quantity4 Barrel
    Booster Typeannular
    Body Height3.25
    Primary Jet Diameter0.104
    Main Venturi Diameter1.525
    Part FitmentSemi Universal
    FinishSatin
    Vendor Part Number1913
    Package Qty1
    Package TypeEA
