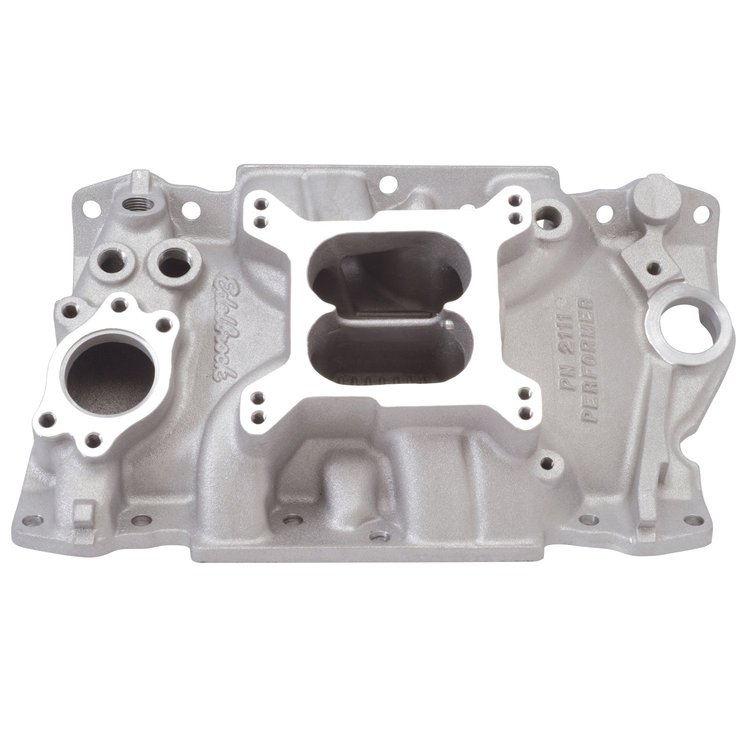

Performer 90° V6 Chevy Intake Manifold
- Performer Intake Manifold
- 1985-1995 Chevy 200/229/262 (3.8L and 4.3L)
- 4-bbl Square Bore Carb Flange (non-EGR)
- Idle-5500 RPM Range
- Satin Finish
Designed for street 1985-95 Chevy 3.8L and 4.3L V6 200/229/262ci. Does not accept stock automotive carbs or 262 TBI unit. Dual bolt pattern water neck fits both automotive and marine applications (produced 18 HP more than older manifold design on 4.3L marine engine)
Installation Notes: - Port Exit Dimensions: 1.15" x 1.87"
- Recommended Intake Gasket: Edelbrock p/n 350-7209 or Fel-Pro p/n 375-1202
- Manifold Height: (A) 3.50", (B) 4.18"
- Carb Pad Height: 3.84"Click here to determine carburetor pad height
Carb Recommendations for 4.3L Only - Edelbrock Performer 500cfm Carburetor Manual Choke p/n 350-1405 , Electric Choke p/n 350-1403
- Edelbrock Thunder AVS 500cfm Carburetor Manual Choke p/n 350-1904 , Electric Choke p/n 350-1903
- Holley 390 cfm Carburetor #510-0-8007
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
