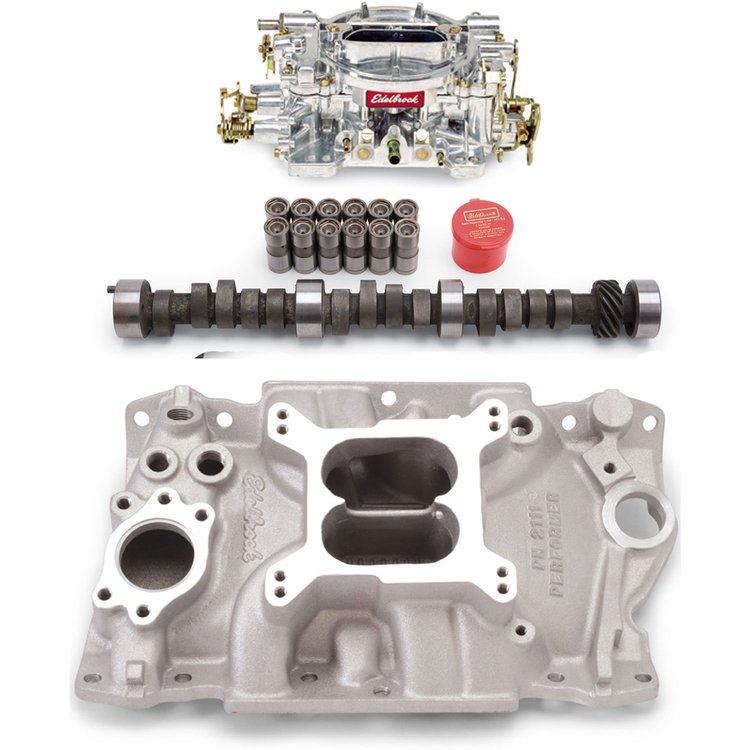

Chevy 3.8L V6 Performer Power Package
- Intake Manifold, Carburetor and Camshaft Kit
- Chevy 3.8L V6
- 4-bbl Square-Bore Carb Flange (non-EGR)
- Idle-5500 RPM Range
- Designed for street 1985-95 200-229 c.i.d. Chevy V6s.
- Dual bolt pattern waterneck fits both automotive and marine applications.
Power Package includes matching:
- Performer Intake Manifold 350-2111
- Edelbrock Performer 500cfm Carburetor 350-1404
- Performer-Plus Hydraulic Flat Tappet Camshaft & Lifters 350-2112.
Note: Camshaft will not fit 4.3L.
Installation Notes:
- Port exit dimensions: .88' x 1.77'
- Recommended intake gasket: Edelbrock 350-7209 or Fel-Pro 375-1202
- Manifold height: (A) 3.50' , (B) 4.18'; Carb pad height = 3.84'
- View Manifold 'A/B' Measurement Guide.
Camshaft Specs:
- Designed for optimum torque from the low-end to the mid-range.
- They are smooth idling cams for daily drivers, trucks, vans, RVs and 4x4s.
- You can expect a major improvement in throttle response and torque.
Note: For non computer-controlled vehicles. Not legal for sale or use on pollution controlled motor vehicles.
Duration Advertised: 270° Intake / 280° Exhaust Duration @ .050' Lift: 204° Intake / 214° Exhaust Valve Lift: .420' Intake / .443' Exhaust Lobe Separation Angle: 112° Open/Close @.050' Cam Lift: Intake - 5° ATDC (opens) / 29° ABDC (closes)
Exhaust - 44° BBDC (opens) / 10° BTDC (closes)Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
