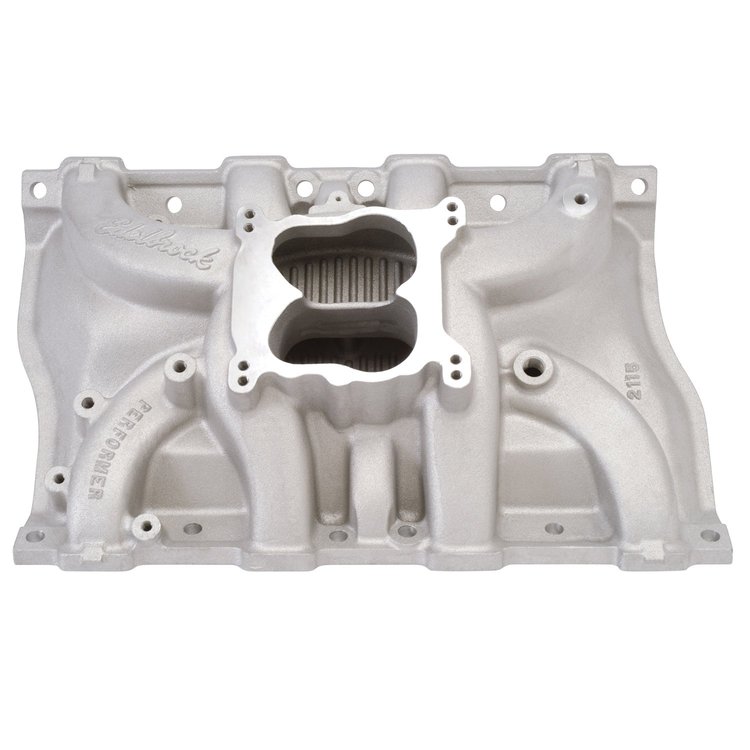

Performer Cadillac Intake Manifold
- Cadillac 472-500ci 1968-1976
- 4-bbl Spread-Bore Carb Flange (non-EGR)
- Idle-5500 RPM Range
- Satin Finish
This Performer is designed for 1968-76 Cadillac 472 and 500ci engines. For either square- or spread-bore carbs, This is the first intake designed specifically for high-performance Cadillacs using standard heads. Like all Edelbrock Performers, this manifold increases torque and horsepower from idle to 5500 rpm. The broad power band is ideal for high-performance street and engine swap applications. Specs on this non-EGR manifold include a carb pad height that's 3' taller than stock. Dropped divider wall evens air/fuel ratio throughout the rpm range. Stock air conditioning compressor will not fit.
Installation Notes: - Port exit dimensions: 1.25' x 2.00'
- Recommended Intake Gaskets: Fel-Pro 375-MS96028
- Manifold height: (A) 4.88' , (B) 5.81' (3" taller than stock)
- Carb pad height = 5.34' Click here to determine carburetor pad height.
- Stock A/C compressor will not fit
Carburetor Recommendations: - OEM 4-bbl
- Edelbrock Performer 750cfm Carburetor Manual Choke p/n 350-1407 , Electric Choke p/n 350-1411
- Edelbrock Performer 800cfm Carburetor Manual Choke p/n 350-1412 , Electric Choke p/n 350-1413
- Edelbrock Thunder AVS 800cfm Carburetor Manual Choke p/n 350-1812 , Electric Choke p/n 350-1813
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
