Performer AMC Intake Manifold with Installation Kit
Includes:
This is a great value! These kits ensure that you'll get the job done right. Each kit includes an Edelbrock intake manifold, quality intake bolts, intake gaskets, carb gaskets, a tube of blue gasket sealer and we also throw in a set of carburetor studs.

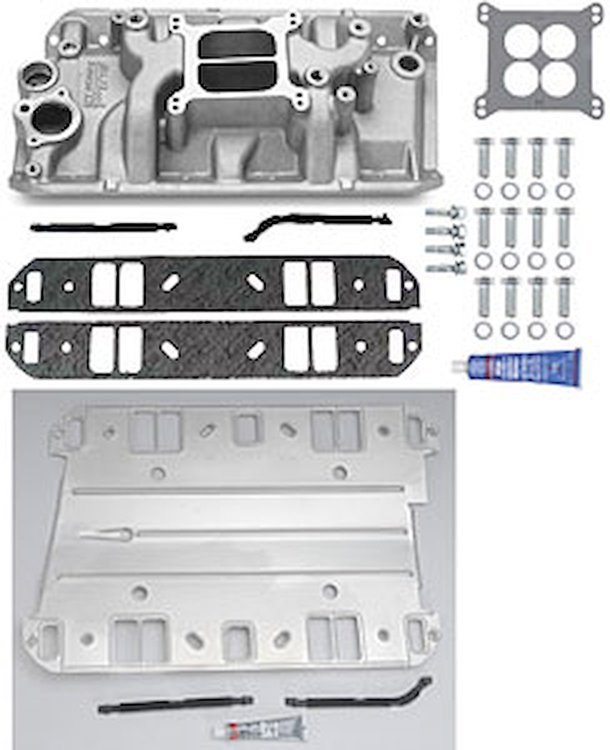

Kit Includes:
- Edelbrock Performer Intake Manifold (Satin) - 350-2131
- Mr. Gasket Intake Manifold Gaskets - 720-800g
- Fel-Pro Valley tray - 375-MS96011
- JEGS Intake Manifold Bolts - 555-83200
- JEGS Carburetor Studs - 555-15840
- JEGS Carb Gasket - 555-16105
- JEGS Blue RTV Gasket Sealer - 555-28030
Designed for 1970-91 street 290-304-343-360-390-401ci V8 engines without EGR. Will not accept stock Motorcraft spread-bore carburetor. This intake manifold is for 360-401ci V8s with OEM carb; 1970-72; except stock equipped EGR.
Installation Notes:
- Port exit dimensions: 1.03' x 2.07'
- Recommended intake gasket: Fel-Pro 375-MS96011 or Edelbrock 350-7213
- Manifold height: (A) 4.20' , (B) 5.50'
- Carb pad height: 4.85" Click here to determine carburetor pad height.
- Manifold has two center bolt holes offset
- Throttle cable adapter p/n 350-8034 required for 1979 and later vehicles.
- Must use factory style metal valley tray
Carburetor Recommendations:
- OEM 4-bbl. square-bore carb
- Edelbrock Performer 600cfm Carburetor Manual Choke p/n 350-1405 , Electric Choke p/n 350-1406.
- Edelbrock Thunder AVS 650cfm Carburetor Manual Choke p/n 350-1805 , Electric Choke p/n 350-1806
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
