AMC Performer Power Package
- Intake Manifold, Carburetor and Camshaft Kit
- AMC 290-401ci 1970-1991
- 4-bbl Square-Bore Carb Flange (non-EGR)
- Idle-5500 RPM Range
Designed for 1970-91 street 304-360-401ci V8 engines without EGR. Will not accept stock Motorcraft spread-bore carburetor.

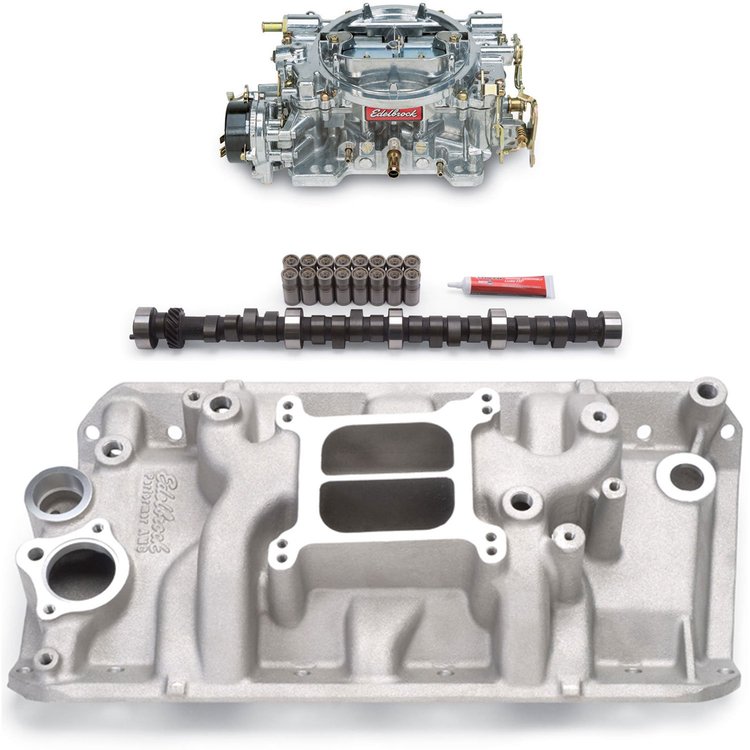

Power Package includes matching: - Performer Intake Manifold 350-2131
- Edelbrock Performer 600cfm Carburetor 350-1406
- Performer-Plus Hydraulic Flat Tappet Camshaft & Lifters 350-2132
Installation Notes: - Port exit dimensions: 1.03' x 2.07'
- Recommended intake gasket: Edelbrock 350-7213
- Manifold height: (A) 4.20' , (B) 5.50'; Carb pad height = 4.85'
- View Manifold 'A/B' Measurement Guide.
- Manifold has two center bolt holes offset
- Throttle cable adapter 350-8034 required for 1979 and later vehicles
Camshaft Specs: - Designed for optimum torque from the low-end to the mid-range.
- They are smooth idling cams for daily drivers, trucks, vans, RVs and 4x4s.
- You can expect a major improvement in throttle response and torque.
Note: Not legal for sale or use on pollution controlled motor vehicles.
Duration Advertised: 278° Intake / 288° Exhaust Duration @ .050' Lift: 204° Intake / 214° Exhaust Valve Lift: .448' Intake / .472' Exhaust Lobe Separation Angle: 110° Open/Close @.050' Cam Lift: Intake - 3° ATDC (opens) / 27° ABDC (closes)
Exhaust - 42° BBDC (opens) / 8° BTDC (closes)Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
