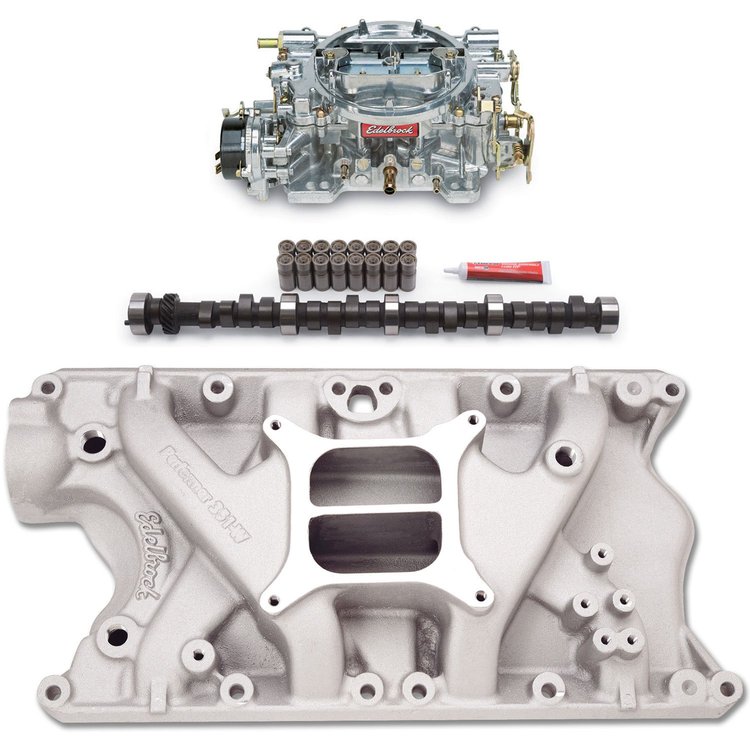

351W Ford Performer Power Package Kit
- Intake Manifold, Carburetor and Camshaft Kit
- Small Block Ford 351 Windsor
- 4-bbl Square-Bore Carb Flange (non-EGR)
- Idle-5500 RPM Range
Designed for street 351ci Small Block Ford Windsor V8s. This intake manifold is for 351W V8s with OEM carburetor 1969-72 (1973 non-CA) except stock equipped EGR. Will not fit Boss 351. Aftermarket 4-bbl carburetors are not compatible with Ford Automatic Overdrive Transmission (AOD) unless used with Lokar throttle cable bracket & springs 625-SRK-4000.
Power Package includes matching: - Performer Intake Manifold 350-2181,
- Edelbrock Performer 600cfm Carburetor 350-1406,
- Performer-Plus Hydraulic Flat Tappet Camshaft & Lifters 350-2182.
Installation Notes: - Port exit dimensions: 1.10' x 1.80'
- Recommended Intake Gaskets: JEGS p/n 555-210200 (For van installations use OEM Ford "van" intake gasket set)
- Will fit early 16-bolt head with use of a Ford 16-bolt intake gasket set
- Manifold height: (A) 3.40' , (B) 4.75'
- Carb Pad Height: 4.07' 350-8981 included.
Camshaft Specs: - Designed for optimum torque from the low-end to the mid-range.
- They are smooth idling cams for daily drivers, trucks, vans, RVs and 4x4s.
- You can expect a major improvement in throttle response and torque.
Note: Not legal for sale or use on pollution controlled motor vehicles.
Duration Advertised: 270° Intake / 280° Exhaust Duration @ .050' Lift: 204° Intake / 214° Exhaust Valve Lift: .448' Intake / .472' Exhaust Lobe Separation Angle: 112° Open/Close @.050' Cam Lift: Intake - 5° ATDC (opens) / 29° ABDC (closes)
Exhaust - 44° BBDC (opens) / 10° BTDC (closes)Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
