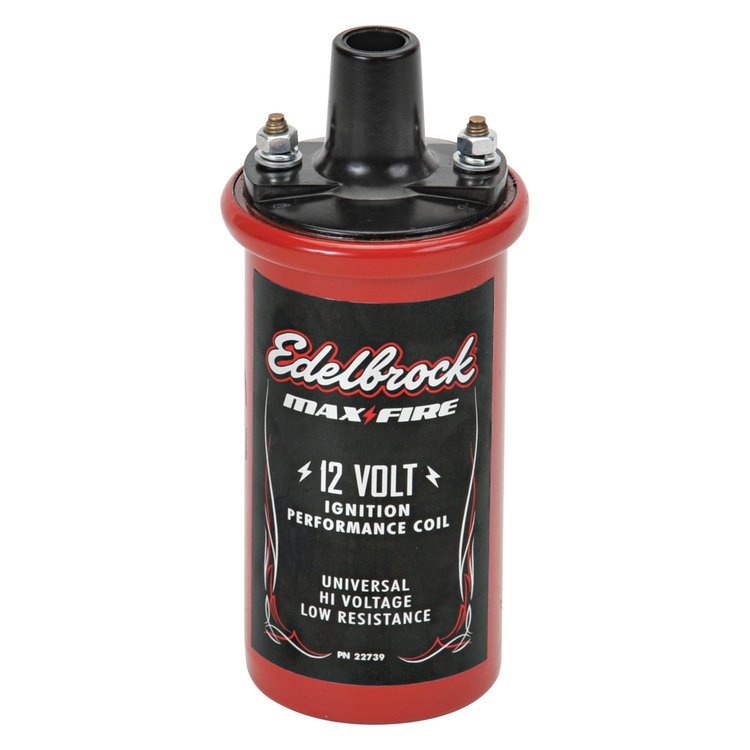

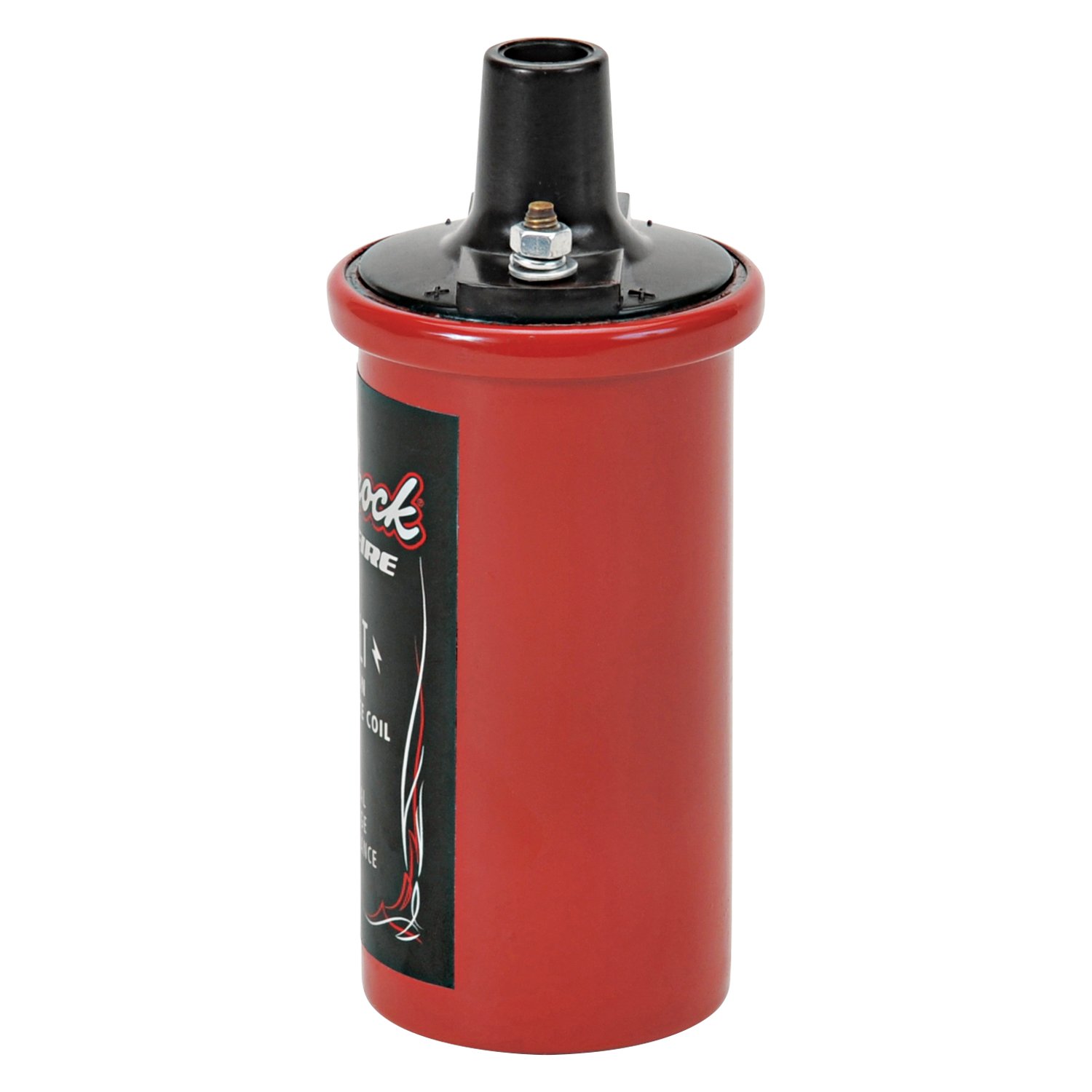

22739 Cannister-Style Ignition Coil [Red]
InfoVehicle Info Needed
EDELBROCKPART NUMBER: 350-22739

22739 Cannister-Style Ignition Coil [Red]

$4895
9 left in stock
ShippingShips Today
Lowest PriceLowest Price Guarantee

    Cannister-Style Ignition Coil
  • 12-Volt
  • 1.4 ohms Primary Resistance
  • 42000 Volt Output
  • High-Quality OEM Replacement
  • Heat, Shock, & Vibration Resistant
  • Oil-Filled Housing
  • 0-6500 RPM
  • Red

    Edelbrock 22739 Ignition Coil is a universal 12-volt canister-style coil designed as a high-quality direct bolt-on replacement for OEM ignition coils. This advanced coil has a primary resistance of 1.4 ohms with an output of 42,000 volts. Internally, each Edelbrock Coil features heavy-duty primary and secondary windings for higher energy and greater spark that can help to provide quicker starts with improved idle quality. With a durable oil-filled housing, Edelbrock Coils are resistant to heat, shock, and vibration with an effective operating range of 0 to 6,500 RPM.

Since founder Vic Edelbrock Sr. began building performance intake manifolds in 1938, Edelbrock has grown into one of the most trusted names in American high-performance parts, from carburetors and intake manifolds to cylinder heads, crate engines, and EFI systems. JEGS has spent decades supplying Edelbrock components to racers, engine builders, and street enthusiasts, backing this extensive lineup with in-house technical support, fast shipping, and a Price Match Guarantee so you can choose proven Edelbrock parts with confidence.

Electronic Oil-Filled Coils

Max-Fire ignition coils are perfect for use with electronic breakerless distributors, like Edelbrocks Max-Fire distributors. In fact, these electronic ignition coils are an excellent high performance ignition coil for any 12-volt vehicle converted from points to a breakerless electronic distributor or electronic ignition system where the look of a canister type coil is preferred. Special windings are used to provide maximum build-up of voltage and are kept cool and securely held in an oil-filled metal canister. The tower assembly is molded of durable alkyd material and wide spaced brass primary terminals prevent the possibility of spark. For use with ready-to-run distributors and 6-series CD ignition control boxes.

Show More

Features:

  • Engineered for high output at higher RPM
  • Improved throttle response
  • Classic appearance, modern performance
Part TypeIgnition Coil
Product LineEdelbrock Max-Fire Canister Ignition Coils
BrandEDELBROCK
Package Height3.5
Package Width3.5
Package Length6.0
Weight1.5 PG
Part CategoryPerformance Parts
Mounting Bracket IncludedNo
Coil Wire IncludedNo
Connector GenderFemale
Part FitmentSemi Universal
Coil ShapeRound
Oil FilledYes
Vendor Part Number22739
Package Qty1
Package TypeEA
