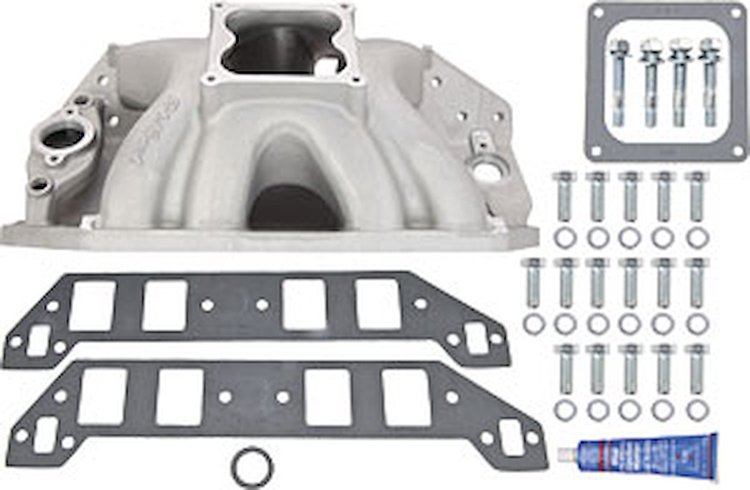

Big Victor Spread-Port Manifold Kit Big Block Chevy

Name: Big Victor Spread-Port Manifold Kit Big Block Chevy
Brand: EDELBROCK
SKU: 350-2802K
Price: 652.64 USD
Availability: InStock

^$652⁶⁴

Ships on 09/18/2026

Lowest Price Guarantee

For use with Edelbrock Big Victor, Profiler Raptor and Dart Big Chief Heads Only

Big Block Chevy
Big Victor, Profiler Raptor, and Dart Big Chief Heads
10.2" Deck Height
3500-8500 RPM Range

Designed for large cubic-inch or high rpm drag racing Big Block Chevy combinations, these manifolds have an average runner area of approximately 4.75 sq.in. The port exits have .090" per side reduction to accommodate the wide variety of intake port sizes and require port matching to the head being used. The runners have a minimum corner radius of .500" from the plenum to the exit allowing the popular oval port shape to be used. The outside runners are shorter and straighter than competitor's manifolds and the plenum is longer front to back. These features, combined with approximately 5% taper in runner cross-sectional area, give better top end horsepower while maintaining consistency and throttle response off the stop
Installation Notes
Deck Height: 10.2"
4500 Series Carburetor Flange
Manifold Height: (A) 8.47", (B) 8.47" Click here to determine carburetor pad height
Edelbrock Intake Manifold #350-2802
JEGS Intake Manifold Bolts #555-83205
Fel-Pro Intake Manifold Gaskets #375-1298
JEGSCarburetor Stud Kit #555-15841
JEGS Carburetor Base Gasket #555-16110
JEGS RTV Gasket Maker #555-28030
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
