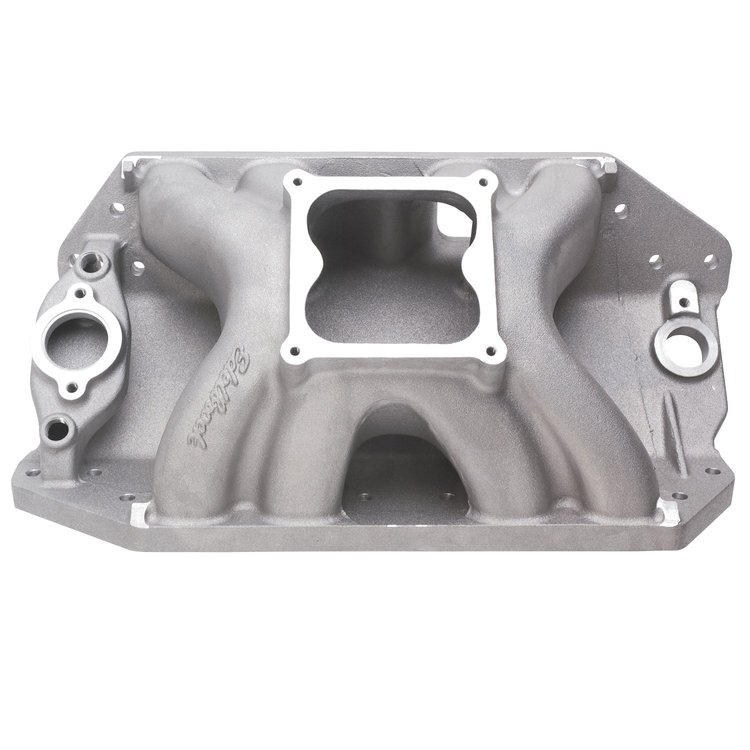

Big Victor Spread-Port Manifold Big Block Chevy

Name: Big Victor Spread-Port Manifold Big Block Chevy
Brand: EDELBROCK
SKU: 350-2806
Price: 539.99 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

For use with Brodix Big Duke Heads Only

Big Block Chevy
Brodix Big Duke Heads
10.2" Deck Height
4500 Carburetor Flange
3500-8500 RPM Range

Designed for large cubic-inch or high rpm drag racing Big Block Chevy combinations, these manifolds have an average runner area of approximately 4.75 sq.in. The port exits have .090" per side reduction to accommodate the wide variety of intake port sizes and require port matching to the head being used. The runners have a minimum corner radius of .500" from the plenum to the exit allowing the popular oval port shape to be used. The outside runners are shorter and straighter than competitor's manifolds and the plenum is longer front to back. These features, combined with approximately 5% taper in runner cross-sectional area, give better top end horsepower while maintaining consistency and throttle response off the stop
Installation Notes
Deck Height: 10.2"
4500 Series Carburetor Flange
Manifold Height: (A) 8.25", (B) 8.25" 375-1298
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Since founder Vic Edelbrock Sr. began building performance intake manifolds in 1938, Edelbrock has grown into one of the most trusted names in American high-performance parts, from carburetors and intake manifolds to cylinder heads, crate engines, and EFI systems. JEGS has spent decades supplying Edelbrock components to racers, engine builders, and street enthusiasts, backing this extensive lineup with in-house technical support, fast shipping, and a Price Match Guarantee so you can choose proven Edelbrock parts with confidence.

Designed for large cubic-inch or high rpm drag racing big-blocks with Big Duke Cylinder heads, the Big Victor Spread-Port manifold makes more horsepower than any other single-quad intake. We've heard from top racers and engine builders all around the country and the consensus is that the Edelbrock Big Victor Spread-Port manifold makes from 20 to 35 horsepower more than their previous manifold. One well-known racer even got a 50 horsepower increase after porting his new Big Victor intake. Top end horsepower is improved while maintaining consistency and response off the throttle stop.
