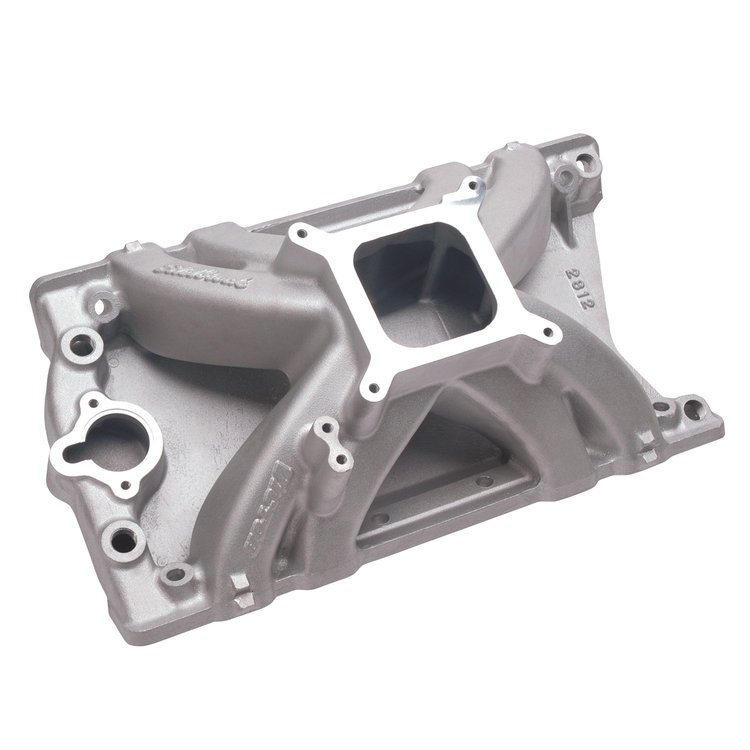

Victor Olds 350-403 Intake Manifold
- 1966-1985 Small Block Oldsmobile 350-403ci
- 4-bbl Square-Bore Carb Flange (non EGR)
- 4500-7500 RPM Range
- Satin Finish
The Edelbrock Victor Olds 350-403 intake manifold provides power levels never before available for competition single-carb 350-403 Olds engines. Featuring a single-plane "Air-Gap" design, it accepts square-bore carb and offers significant horsepower increases over existing intakes in the 4500 to 7500 rpm range. It features a carb mount pad height of 7" and high-flow constant area 3.2-square-inch runners. The runners have been optimized to match the flow characteristics of Edelbrock Performer RPM aluminum cylinder heads 350-60519 and the exit size, as-cast, is 1.28" by 1.94" with plenty of metal thickness for gasket matching and porting.
Installation Notes: - Carburetor pad height: 7"
- Runners have a 3.2 sq/in cross section
- Port exit dimensions 1.94" tall by 1.28" wide
- Recommended intake gasket; JEGS 555-210700 or Fel-Pro 375-MS96027
- Recommended cylinder heads: Performer RPM 350-60519
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Since founder Vic Edelbrock Sr. began building performance intake manifolds in 1938, Edelbrock has grown into one of the most trusted names in American high-performance parts, from carburetors and intake manifolds to cylinder heads, crate engines, and EFI systems. JEGS has spent decades supplying Edelbrock components to racers, engine builders, and street enthusiasts, backing this extensive lineup with in-house technical support, fast shipping, and a Price Match Guarantee so you can choose proven Edelbrock parts with confidence.
Victor Race Series
4500-7500+ RPM
Engineered for high rpm performance the Edelbrock Victor Series Intake Manifolds deliver levels of power previously unavailable to Oldsmobile engines. These intake manifolds feature cast aluminum construction and a single-plane raised carburetor pad with an air-gap runner design to produce significant horsepower increases in competition prepared engines. The intake bolt bosses between the intake runners have been eliminated and the runner shape has been optimized to allow unrestricted flow into Edelbrock Performer RPM cylinder heads. The race proven Victor series offers an intake for 350-403 Olds engines with a 4150 style carburetor flange and your choice of 4150 or 4500 style for 455 Olds engines giving you the opportunity to build your power plant for racing success!
