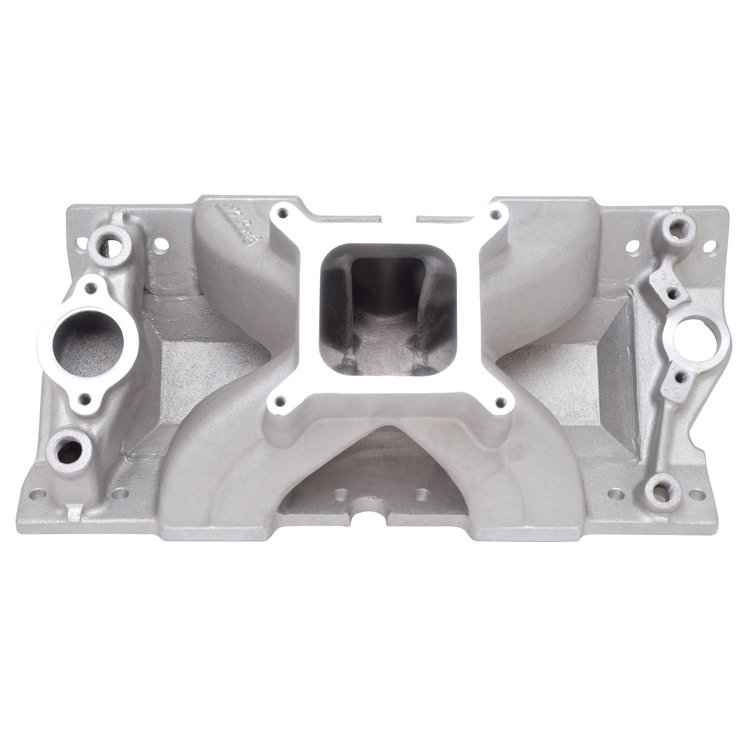

Super Victor Vortec Bowtie Intake Manifold Small Block for Small Block Chevy
InfoVehicle Info Needed
EDELBROCKPART NUMBER: 350-2814

Super Victor Vortec Bowtie Intake Manifold Small Block for Small Block Chevy

$54995
2 left in stock
ShippingShips Today
Lowest PriceLowest Price Guarantee

Super Victor Vortec Bowtie
  • Small Block Chevy
  • Cast-Iron Vortec Bowtie Cylinder Heads
  • 4150-style Square Bore Carb Flange
  • 4000-8000 RPM Range

    Designed specifically for use with GM cast-iron Vortec Bowtie cylinder heads #25534351 (185cc) and #25534371 (215cc). It features raised runners that closely match the port shape and location of these heads, and is the best choice for racing classes that prohibit modification to the manifold. It features the original 6-bolt pattern and 7/8 inch of additional carb pad height (compared to previous raised-runner manifolds such as 350-2926 Super Victor).

    Installation Notes:
  • Port exit dimensions: 1.14' x 2.20'
  • Distance from bolt hole centerline to port roof 1.13'; to port floor 1.07'
  • Carb pad height = 6.77' with 0° carb angle.
  • Recommended Intake Gasket: Fel-Pro p/n 350-7206, 350-7207 (thicker)

    Emissions Note:

    This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

    CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Part TypeIntake Manifold
BrandEDELBROCK
Package Height9.3
Package Width16.4
Package Length24.2
Weight22.15 PG
Part CategoryPerformance Parts
Engine Block StyleStock/OEM standard Deck
UsageRacing
Number Of CarbsOne
Intake MaterialAluminum
PositionN/A
Intake StyleSingle plane
EmissionWithout EGR
QuantitySold individually
Cylinder Head TypeGM Vortec/Edelbrock E-TEC
Intake FinishNatural
Carburetor QuantityOne
Engine Make/SizeChevy Small Block
Intake Section IncludedComplete
Basic Operating Rpm Range4,000-8,000
EgrWithout EGR
Rpm Range4000-8000
Intake Manifold Height6.77 in (171.958 mm)
Vendor Part Number2814
Package Qty1
Package TypeEA
