Vehicle Info NeededEDELBROCKPART NUMBER: 350-28155

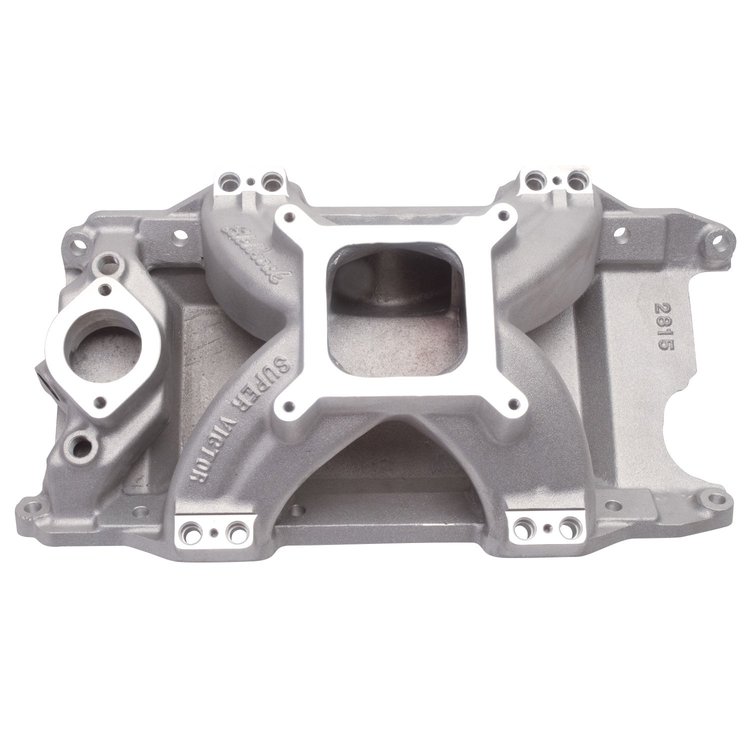

Super Victor EFI Small Block Chrysler 340-360
$57995
Ships on 09/08/2026
Lowest Price GuaranteeSmall Block Chrysler
- Super Victor EFI Intake Manifold
- Small Block Chrysler 340-360
- Standard 4150-Style Square Bore Carb Flange
- Standard Chrysler Rectangular-Port Heads
- 3500-8000 RPM Range
Super Victor Small Block Chrysler EFI is based on the Super Victor Small Block Chrysler manifold 350-2815. For high-rpm 340-360 c.i.d. Small Block Chrysler V8s with standard port location heads, it delivers maximum power from 5000 to 8000 rpm with peak torque at 5500-6000 rpm and peak power at 7000 rpm. Precisely positioned and machined injector bosses deliver excellent fuel spray patterns and maximum power. Universal 4-Barrel Throttle Bodies, fuel injectors, fuel pumps and regulators are also available to complete your EFI system.Installation Notes: - Port Exit Dimensions: 0.98" x 2.15"
- Recommended Intake Gasket: JEGS p/n 555-210400
- Distance from bolt hole centerline to port roof 1.21'; to port floor 0.94'
- Carb pad height = 6.30' with 0° carb angle. Click here to determine carburetor pad height
- Throttle Body Recommendations: Edelbrock 350-38783
- Recommended fuel rail: 350-3641
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeIntake Manifold
BrandEDELBROCK
Package Height9.6
Package Width16.3
Package Length24.1
Weight23.75 PG
Part CategoryPerformance Parts
Aftermarket Fuel Rail RequiredYes
Runners RemovableNo
Engine Block StyleStock/OEM standard Deck
UsageRacing
Number Of CarbsNone, For Fuel Injection
Throttle Body IncludedNo
Supplemental Bosses Cast-InNo
PositionN/A
EmissionWithout EGR
QuantitySold individually
Cylinder Head TypeStandard
Injectors IncludedNo
Fuel Rails IncludedNo
Engine Make/SizeMopar Small Block (LA)
Intake Section IncludedComplete
Basic Operating Rpm Range3,500-8,500
EgrWithout EGR
Supplemental Bosses MachinedYes
Runners IncludedNo
Base FinishNatural
Rpm Range3500-8500
Injection StyleMulti-port
Base MaterialAluminum
Vendor Part Number28155
Package Qty1
Package TypeEA
