Super Victor CNC Intake Manifold for Small Block Chevy
Product Discontinued
EDELBROCKPART NUMBER: 350-2825

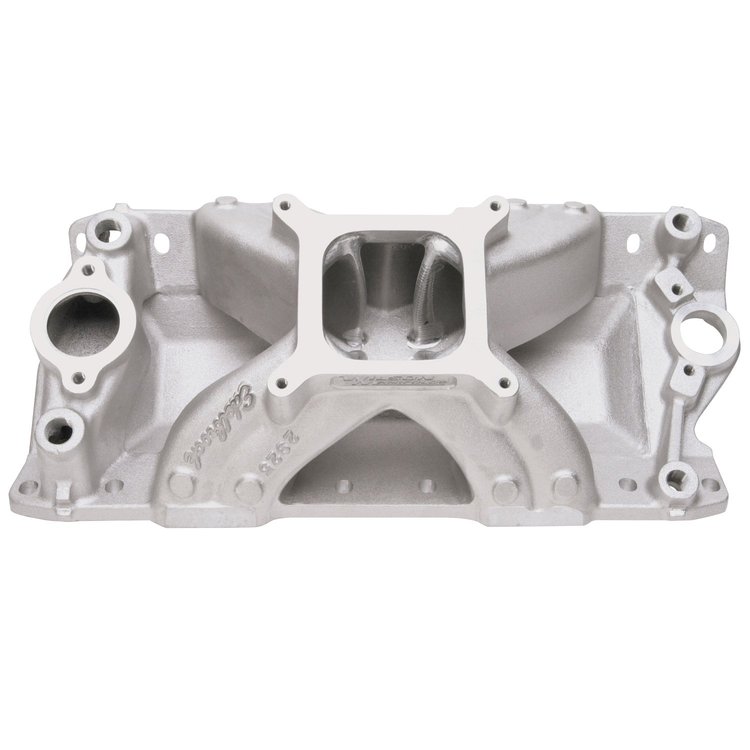

Super Victor CNC Intake Manifold for Small Block Chevy

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Super Victor
  • Small Block Chevy
  • Competition CNC-machined
  • 4150-style Square Bore Carb Flange
  • Standard Port Location
  • 3500-8000 RPM Range
  • Satin Finish

    This is a special version of the Super Victor p/n 350-2925. The Super Victor CNC is the same casting as the Super Victor but was developed for competition high rpm or large displacement small-blocks. It is CNC machined in all critical areas... plenum chamber, port exits, divider walls and runner roofs for optimum performance and out-of-the-box convenience.

    Installation Notes:
  • Port exit dimensions: 1.31' x 2.21' (compared to the Super Victor dimensions: 1.20' x 2.00')
  • Distance from bolt hole centerline to port roof 0.96'; to port floor 1.25'
  • Carb pad height = 5.50' with 0° carb angle.
  • Recommended Intake Gasket: JEGS p/n 555-210000

    Since founder Vic Edelbrock Sr. began building performance intake manifolds in 1938, Edelbrock has grown into one of the most trusted names in American high-performance parts, from carburetors and intake manifolds to cylinder heads, crate engines, and EFI systems. JEGS has spent decades supplying Edelbrock components to racers, engine builders, and street enthusiasts, backing this extensive lineup with in-house technical support, fast shipping, and a Price Match Guarantee so you can choose proven Edelbrock parts with confidence.

    Professionally Engineered Intake Manifolds

    Expertly crafted from cast aluminum, Edelbrock Victor Series Intake Manifolds are engineered in conjunction with leading engine builders and racers from all forms of competition to incorporate a modern design with the latest racing technology. JEGS offers a comprehensive selection of high-performance Edelbrock Victor-style manifolds, so you can choose the best "Victor" to match your carburetor, cams, and heads for a winning formula of horsepower, torque, and RPM. Victor Jr. manifolds are cast with excess mass in appropriate places for custom port matching.

Part TypeIntake Manifold
Product LineEdelbrock Victor Series Intake Manifolds for Small Block Chevy
BrandEDELBROCK
Package Height9.5
Package Width16.3
Package Length23.9
Weight21.65 PG
Part CategoryPerformance Parts
Engine Block StyleStock/OEM standard deck
UsageRacing
Number Of CarbsOne
Intake MaterialAluminum
PositionN/A
Intake StyleSingle plane
EmissionWithout EGR
QuantitySold individually
Cylinder Head TypeStandard
Intake FinishNatural
Carburetor QuantityOne
Engine Make/SizeChevy Small Block (262-400)
Intake Section IncludedComplete
Basic Operating Rpm Range3,500-8,000
EgrWithout EGR
Rpm Range3500-8500
Intake Manifold Height5.5 in (139.7 mm)
Vendor Part Number2825
Package Qty1
Package TypeEA
