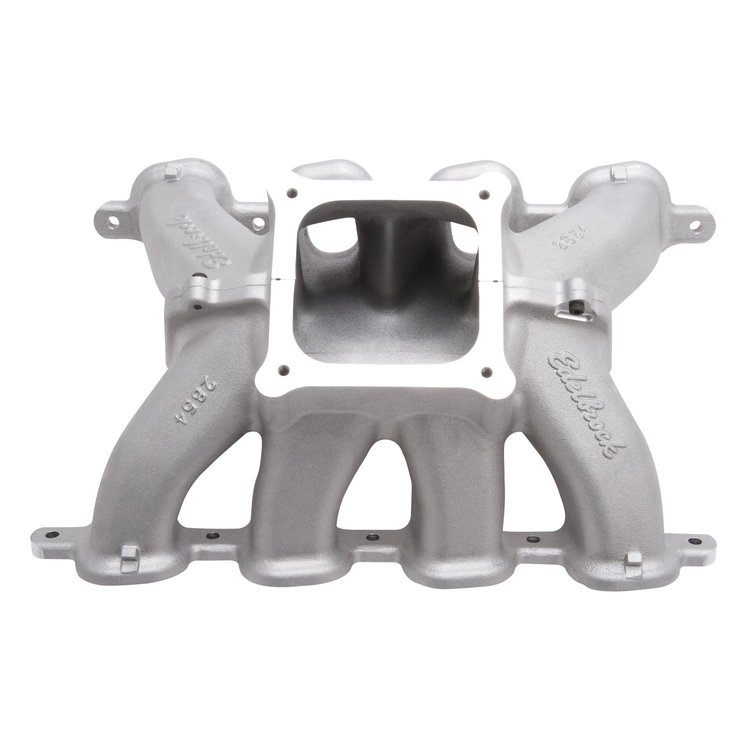

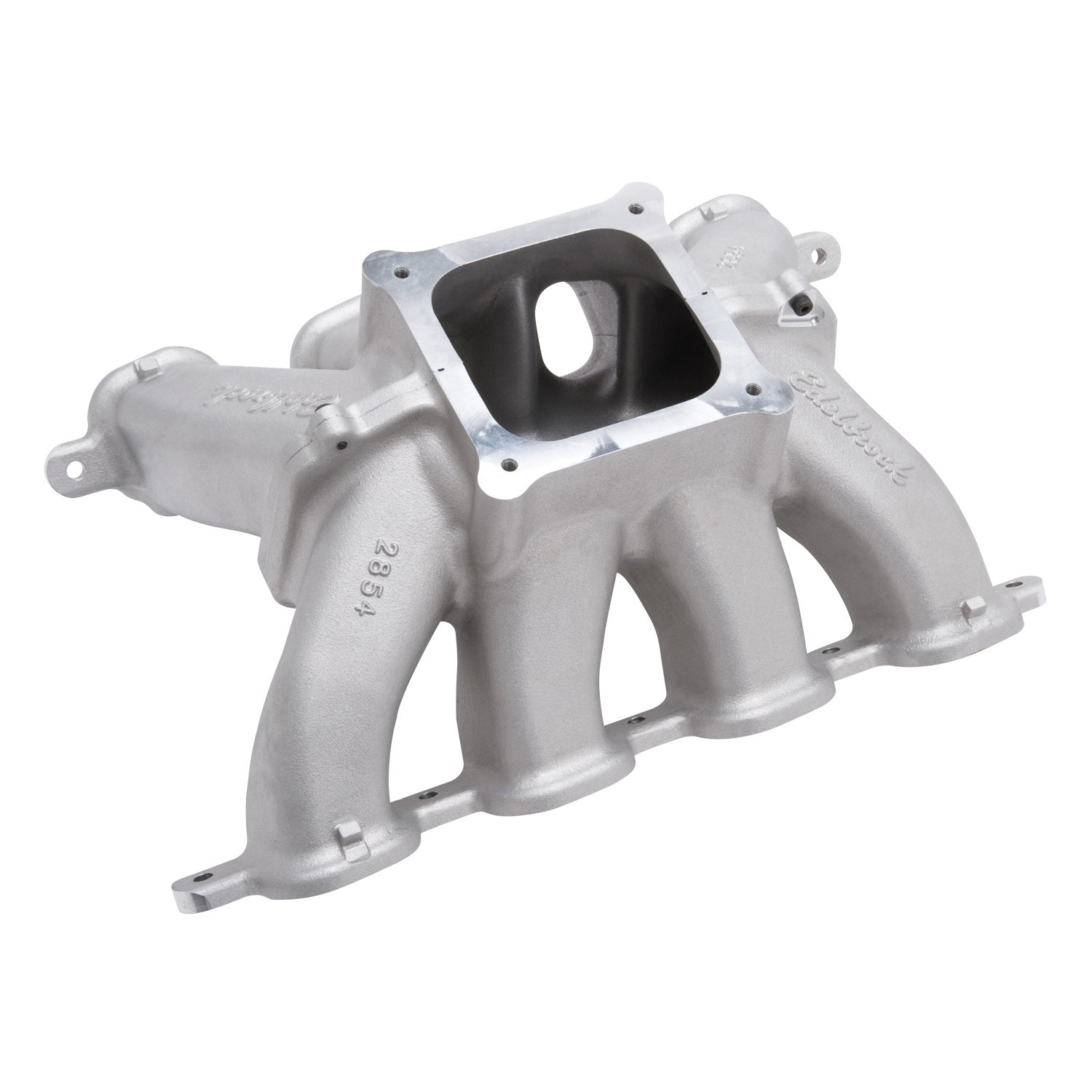

Big Victor 3 BV3 CNC Intake Manifold 9.8 Standard Deck 4.84 Bore Spacing
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
- Big Victor 3 BV3 CNC Intake Manifold
- Big Block Chevy, 9.8" Standard Deck Height w/ 4.84" Bore Spacing
- For Use with Edelbrock BV3 CNC Cylinder Heads
- 4500-series Carburetor Flange
- 3500-8500 RPM Range
- Satin Finish
These manifolds are designed and have been CNC port matched for use with Edelbrock BV3 cylinder heads which feature a unique symmetrical port layout for the 4.84" or 5.0" bore spacing big-block Chevrolet applications. These new manifolds feature a spider style single-plane design with efficient runners that are engineered to deliver peak performance across a wide range of applications. They have a lengthened plenum and a narrowed runner design to deliver equal length runners.These new manifolds are also the first in the Big Victor Series to feature Edelbrock's unique two-piece design. This unique design simplifies and reduces time in applications that require CNC porting. The manifolds are cast in two separate pieces, allowing them to be taken apart for better porting access and then they can bolted back together while maintaining a perfect match. Each piece has a precision machined o-ring groove to ensure a proper seal. High quality bolts and washers are supplied. Each manifold also has a matching valley plate with the proper flange thickness. These unique valley plates feature an highly efficient integrated water distribution system, reducing the need for external plumbing. All of these manifolds feature a carb pad with a 4500 Series flange that is also large enough to accommodate various throttle body and throttle stop applications on the market today.
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Since founder Vic Edelbrock Sr. began building performance intake manifolds in 1938, Edelbrock has grown into one of the most trusted names in American high-performance parts, from carburetors and intake manifolds to cylinder heads, crate engines, and EFI systems. JEGS has spent decades supplying Edelbrock components to racers, engine builders, and street enthusiasts, backing this extensive lineup with in-house technical support, fast shipping, and a Price Match Guarantee so you can choose proven Edelbrock parts with confidence.
Big Victor 3 Symmetrical Port Race Series
3500-8500 RPM Range
The BV3 intake manifold is designed for use with Edelbrock BV3 symmetrical port cylinder heads on 4.84" or 5.0" bore spacing big-block Chevrolet applications. These intake manifolds feature a spider style single-plane design with efficient runners that are engineered to deliver peak performance across a wide range of applications. They feature a lengthened plenum and a narrowed runner design to deliver equal length intake runners.
Show More
These manifolds are also the first in the Big Victor Series to feature Edelbrock's unique two-piece design. This unique design simplifies and reduces time in applications that require CNC porting. The manifolds are cast in two separate pieces, allowing them to be taken apart for better porting access and then they can bolted back together while maintaining a perfect match. Each piece has a precision machined o-ring groove to ensure a proper seal. High quality bolts and washers are supplied. Each manifold also has a unique matching valley plate with the proper flange thickness. The valley plates feature highly efficient integrated water distribution system, reducing the need for external plumbing. All of these manifolds feature a carb pad with a 4500 Series carb flange that is also large enough to accommodate various throttle body and throttle stop applications on the market.
Features:
- A356 Aluminum Construction
- Two-Piece Design Simplifies the Porting Process
- Designed for Use with Edelbrock BV3 Symmetrical Port Cylinder Heads
