Vehicle Info NeededEDELBROCKPART NUMBER: 350-2859

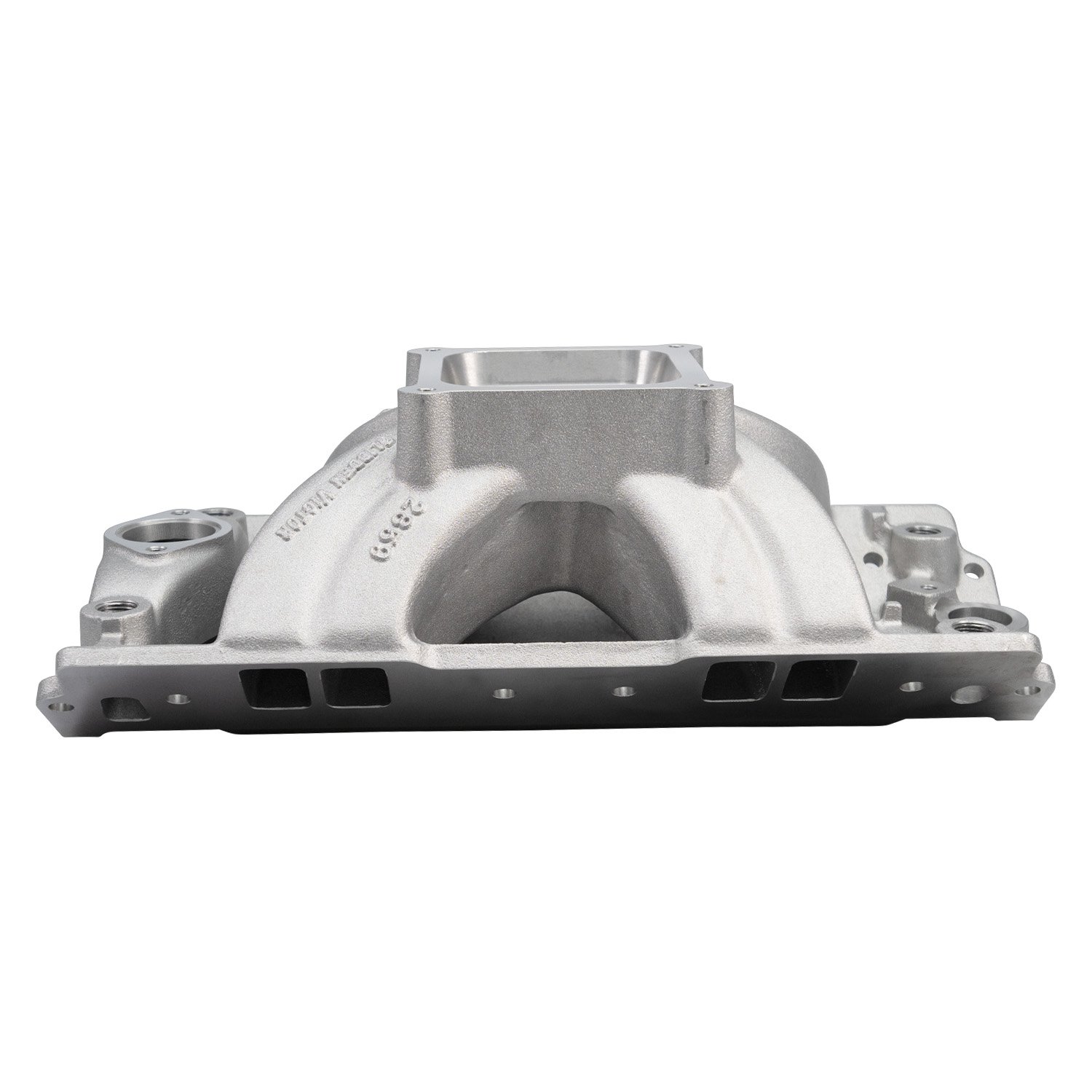

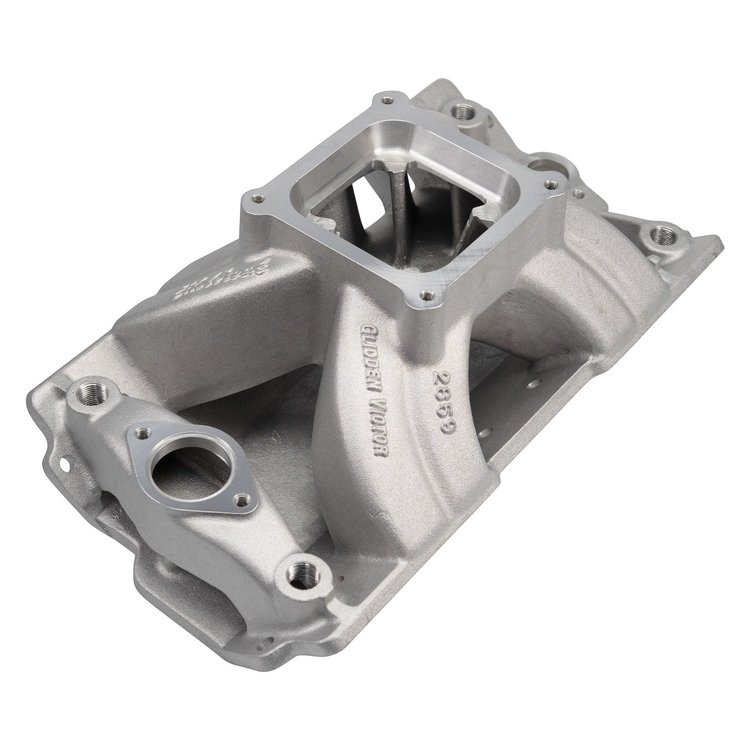

Victor Glidden 15°-18° Intake Manifold for Small Block Chevy
$65995
Ships on 10/19/2026
Lowest Price GuaranteeVictor Glidden
- Small Block Chevy
- 18° Cylinder Heads
- 4500-style Square Bore Carb Flange
- 5000-8500 RPM Range
- One-Piece Design
Designed in conjunction with noted drag racer Billy Glidden, Victor Glidden is for all-out nitrous-assisted drag race applications. It features intake runners with a large cross-section area of 3.2 square-inches for maximum high-end horsepower in engines operating from 5000 to 8500 rpm with GM or Edelbrock 18° heads. Carb mount flange and plenum are machined for 4500 Series carbs and require port matching and blending prior to use.Installation Notes: - Port exit dimensions: 1.20' x 2.02'
- Distance from bolt hole centerline to port roof 1.76'; to port floor 0.26'
- Carb pad height = 7.03' with 0° carb angle.
- Recommended intake gasket: Fel-Pro p/n 375-1282
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeIntake Manifold
BrandEDELBROCK
Package Height9.4
Package Width16.1
Package Length23.8
Weight26.4 PG
Part CategoryPerformance Parts
Engine Block StyleStock/OEM standard deck
UsageRacing
Number Of CarbsOne
Intake MaterialAluminum
PositionN/A
Intake StyleSingle plane
EmissionWithout EGR
QuantitySold individually
Cylinder Head TypeEdelbrock 18 Deg.
Intake FinishNatural
Carburetor QuantityOne
Engine Make/SizeChevy Small Block
Intake Section IncludedComplete
Basic Operating Rpm Range5,000-8,500
EgrWithout EGR
Rpm Range5000-8500
Intake Manifold Height7.03 in (178.562 mm)
Vendor Part Number2859
Package Qty1
Package TypeEA
