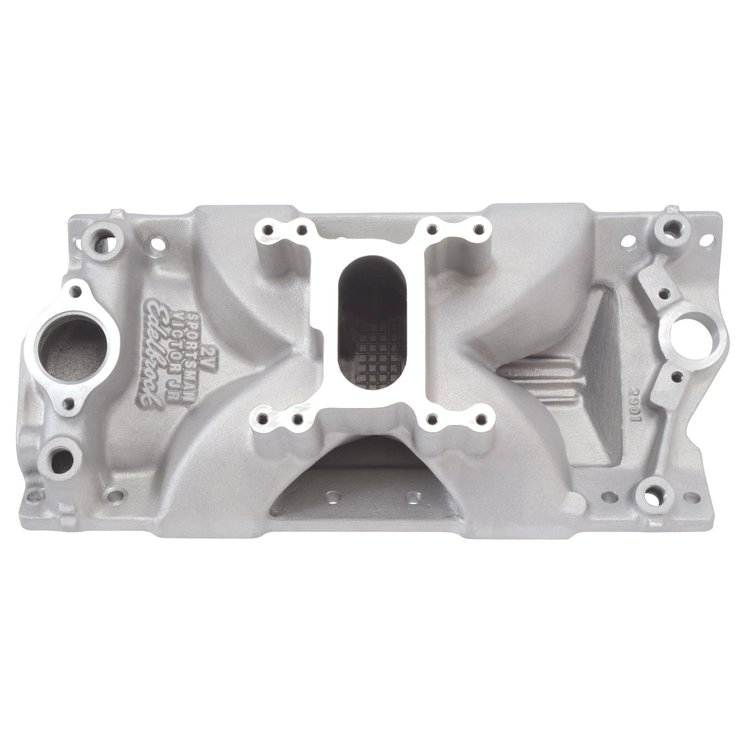

Victor Jr. Sportsman 2V Intake Manifold for Small Block Chevy
Items You Need
- Small Block Chevy 1955-1986
- 2-bbl Carb Flange
- 3500-7000 RPM Range
The Victor Jr. Sportsman 2V manifold is a dedicated design for the 2V racer and provides outstanding performance from 3500 to 7000 rpm. The runners are sized especially for 2V racing engines for the ultimate combination of torque and horsepower with better fuel distribution. An extra tall carburetor pad eliminates the need for spacers, and rear water outlets allow for a four corner coolant flow path if desired. It features dual distributor clamp locations, and port exits are sized to match cast iron Chevrolet Bowtie heads. The Victor Jr. Sportsman 2V p/n 350-2912 for Vortec heads has all the features of p/n 350-2901 for the racer using the popular GM (Vortec L31) cast iron cylinder heads. Both manifolds accept standard restrictor plates and carb adapters.Installation Notes: - Port exit dimensions: 1.18' x 2.04'
- Distance from bolt hole centerline to port roof 0.89'; to port floor 1.15'
- Carb pad height = 5.98' with 0° carb angle.
- Recommended intake gasket; JEGS 555-210000
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Since founder Vic Edelbrock Sr. began building performance intake manifolds in 1938, Edelbrock has grown into one of the most trusted names in American high-performance parts, from carburetors and intake manifolds to cylinder heads, crate engines, and EFI systems. JEGS has spent decades supplying Edelbrock components to racers, engine builders, and street enthusiasts, backing this extensive lineup with in-house technical support, fast shipping, and a Price Match Guarantee so you can choose proven Edelbrock parts with confidence.
Professionally Engineered Intake Manifolds
Expertly crafted from cast aluminum, Edelbrock Victor Series Intake Manifolds are engineered in conjunction with leading engine builders and racers from all forms of competition to incorporate a modern design with the latest racing technology. JEGS offers a comprehensive selection of high-performance Edelbrock Victor-style manifolds, so you can choose the best "Victor" to match your carburetor, cams, and heads for a winning formula of horsepower, torque, and RPM. Victor Jr. manifolds are cast with excess mass in appropriate places for custom port matching.
