Vehicle Info NeededEDELBROCKPART NUMBER: 350-29045

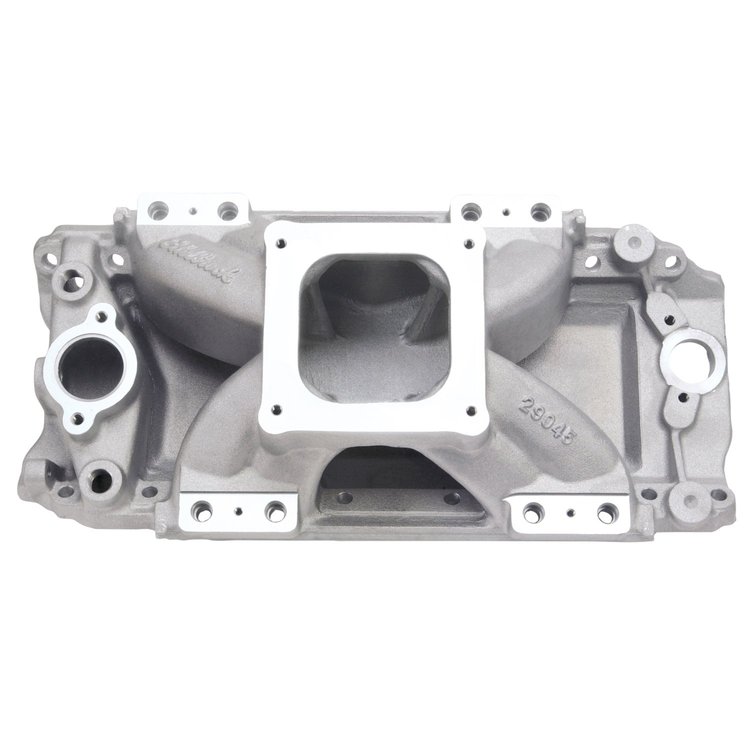

Victor Jr. 454-O Intake Manifold Big Block Chevy w/pre-1975 Large Oval Port Heads
$54995
Ships on 09/15/2026
Lowest Price GuaranteeChevy Big Block Victor Series EFI
- Victor Jr. 454-O Intake Manifold
- Big Block Chevy
- Oval Port Heads
- 3500-7500 RPM Range
- EFI
Installation notes - Big Block Chevy Standard Deck (9.8")
- Recommended intake gasket; Jegs 555-210102 or Fel-Pro 375-1212
- Manifold Height: (A) 5.90", (B) 5.90"
- Click here to determine throttle body pad height
- Recommended fuel rail: 350-3633
- Square bore throttle body flange
- Use 350-3878 4-bbl throttle body
- Or 350-3849 Elbow with 350-3869 90mm throttle body
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeIntake Manifold
BrandEDELBROCK
Package Height7.1
Package Width14.5
Package Length23.8
Weight24.56 PG
Part CategoryPerformance Parts
Aftermarket Fuel Rail RequiredYes
Runners RemovableNo
Engine Block StyleStock/OEM standard deck
UsageRacing
Number Of CarbsNone, For Fuel Injection
Throttle Body IncludedNo
Supplemental Bosses Cast-InYes
PositionN/A
EmissionWithout EGR
QuantitySold individually
Cylinder Head TypeOval Port- Standard
Injectors IncludedNo
Fuel Rails IncludedNo
Engine Make/SizeChevy Big Block
Intake Section IncludedComplete
Basic Operating Rpm Range3,500-7,500
EgrWithout EGR
Supplemental Bosses MachinedNo
Runners IncludedNo
Base FinishNatural
Rpm RangeIdle-8500
Injection StyleMulti-port
Base MaterialAluminum
Vendor Part Number29045
Package Qty1
Package TypeEA
