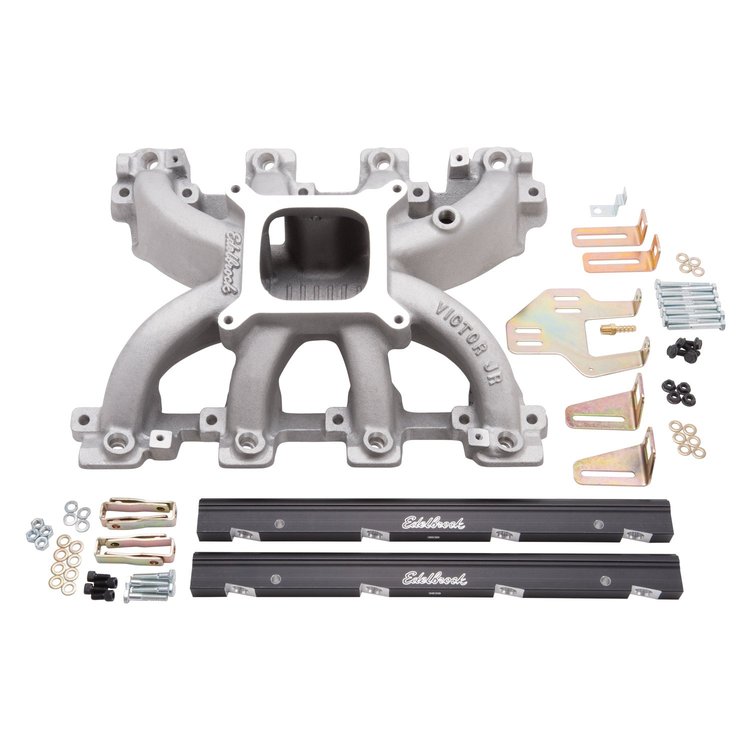

Victor Jr. LS1 Competition EFI Intake Manifold & Fuel Rail Kit

Name: Victor Jr. LS1 Competition EFI Intake Manifold & Fuel Rail Kit
Brand: EDELBROCK
SKU: 350-29086
Price: 638.95 USD
Availability: InStock

^$638⁹⁵

2 left in stock

Ships Today

Lowest Price Guarantee

Chevy LS Victor Jr.

GM Gen III LS
Cathedral Port
4-bbl Square-bore Throttle Body Flange
3500 to 7500 RPM Range
Fuel Rails use 6an ORB Fitting

This high-rise single plane intake is capable of supporting up to 600 hp. Like our Performer RPM LS1 intake, the Victor Jr. LS1 EFI accepts a standard flange throttle body. Includes a throttle bracket designed to work with 700R-4, 200R-4 and Turbo 350 transmissions. Most applications will require hood modification.
Installation Notes:
Port exit dimensions: 0.98' x 2.74'
Distance from bolt hole centerline to port roof 1.39'; to port floor 1.35'
Carb pad height = 4.95' with 0° carb angle.
Recommended Intake Gasket: Uses LS1/LS6 style individual port O-ring seals. Fel-Pro p/n 555-210800
Technical Note
Edelbrock LS1 Timing Control Module p/n 350-91238 or MSD p/n 121-6010 ignition controller works on LS1 24x reluctor wheel (crank trigger) applications only;
LS2 applications with 58x reluctor (crank trigger) requires MSD p/n 121-6012 ignition controller.
LS1 (24x) applications can be recognized by the rear mounted cam position sensor (black in color), while LS2 (58x) cam sensor is mounted in the timing cover and is gray in color.
Crankshaft sleeve from Hughes Performance p/n 512-HP3795 and Flexplate p/n 512-HP4004 is recommended when using a TH350, TH400 or 700R4 on a LS1.

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Part TypeIntake Manifold

BrandEDELBROCK

Package Height7.5

Package Width15.3

Package Length23.3

Weight19.95 PG

Part CategoryPerformance Parts

Runners RemovableNo

Number Of CarbsNone, For Fuel Injection

Supplemental Bosses Cast-InNo

Plenum MaterialAluminum
