Made in USA
Victor 454-O Intake Manifold Big Block Chevy with 1975-Earlier large oval port heads
Product Discontinued
EDELBROCKPART NUMBER: 350-2909

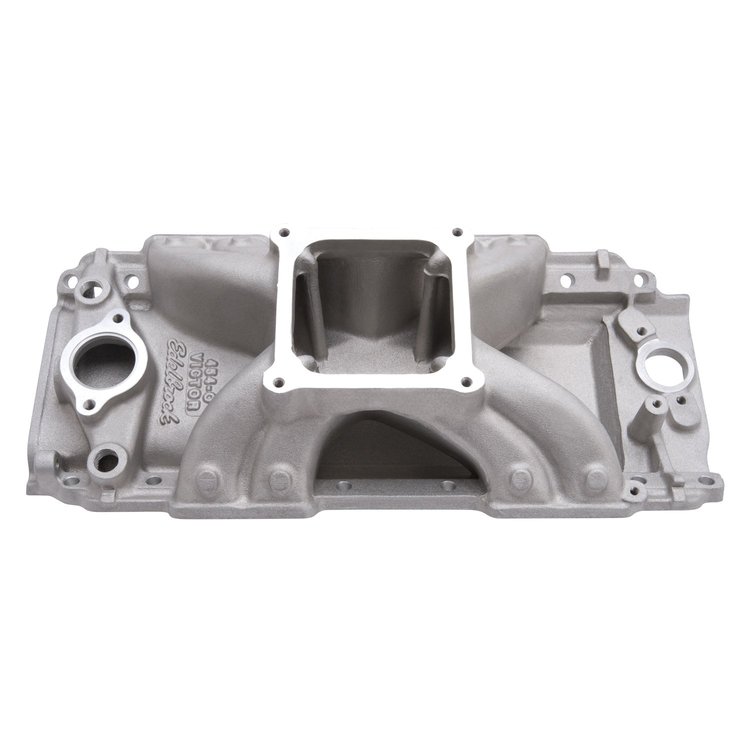

Victor 454-O Intake Manifold Big Block Chevy with 1975-Earlier large oval port heads

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Chevy Big Block Victor 454-O
    Victor 454-O Intake Manifold
  • Big Block Chevy
  • Oval Port Heads
  • 4500 Carburetor Flange
  • 3000-7500 RPM Range

    Installation notes
  • Big Block Chevy Standard Deck (9.8")
  • Recommended intake gasket; Jegs 555-210102 or Fel-Pro 375-1212
  • Manifold Height: (A) 5.90", (B) 5.90"350-8716 for 4150 Carburetor
  • For maximum power use with 1" spacer 350-8717

Since founder Vic Edelbrock Sr. began building performance intake manifolds in 1938, Edelbrock has grown into one of the most trusted names in American high-performance parts, from carburetors and intake manifolds to cylinder heads, crate engines, and EFI systems. JEGS has spent decades supplying Edelbrock components to racers, engine builders, and street enthusiasts, backing this extensive lineup with in-house technical support, fast shipping, and a Price Match Guarantee so you can choose proven Edelbrock parts with confidence.

Victor Race Series

3000-8000+ RPM

The Edelbrock Victor Series intake Manifolds for Big Block Chevy engines are designed for high rpm performance right out of the box. Constructed from cast aluminum for reduced weight and better heat dissipation the raised air-gap style single-plane carburetor mounting pad, straight runner design and unique runner dividers offer increased power and better 60-foot times. With a wide variety of products developed by top engine builders available in single 4-bbl Victor Jr and Victor series as well as the dual 4-bbl Victor Ram the possibilities of creating maximum power from your application are endless.

Show More

Designed by JEGS professionals so you get all the parts needed, Intake Manifold Kits include:

  • Edelbrock Intake Manifold (varies based on application)
  • Intake Manifold Bolts
  • Intake Manifold Gaskets
  • Carburetor Stud Kit
  • Carburetor Base Gasket
  • RTV Gasket Maker
Part TypeIntake Manifold
Product LineEdelbrock Victor Series Intake Manifolds for Big Block Chevy
BrandEDELBROCK
Package Height7.6
Package Width15.1
Package Length23.4
Weight22.06 PG
Part CategoryPerformance Parts
Engine Block StyleStock/OEM standard deck
UsageRacing
Number Of CarbsOne
Intake MaterialAluminum
PositionN/A
Intake StyleSingle plane
EmissionWithout EGR
QuantitySold individually
Cylinder Head TypeOval Port- Large Aftermarket
Intake FinishNatural
Carburetor QuantityOne
Engine Make/SizeChevy Big Block (396-502)
Intake Section IncludedComplete
Basic Operating Rpm Range3,500-8,000
EgrWithout EGR
Rpm Range3000-7500
Intake Manifold Height5.9 in (149.86 mm)
Vendor Part Number2909
Package Qty1
Package TypeEA
