Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Small Block Chevy

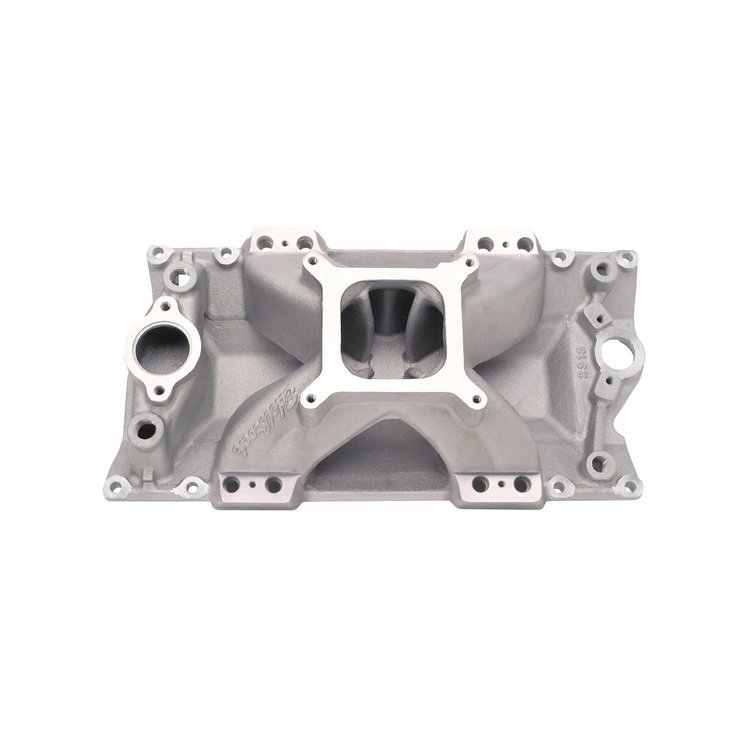

- Super Victor Vortec EFI Intake Manifold
- Small Block Chevy
- Vortec / E-Tec Cylinder Head
- 4150-Style Square Bore Flange
- 4000-8000 RPM Range
- Satin Finish
Designed for racers using Vortec cast iron or Edelbrock E-Tec aluminum cylinder heads, this manifold offers awesome top-end horsepower, throttle response and advanced design features. Designed specifically to enhance the performance of the Vortec cylinder heads (also known as L31), the 350-29135 is the most powerful EFI intake available for these Chevy production heads. Runners have a 2.60 square-inch cross-section. Installation Notes: - Use Super Victor EFI Fuel Rail kit p/n 350-3631, compatible with standard injectors.
- Port exit dimensions: 2.09 tall'
- Distance from bolt hole centerline to port roof 0.18'; to port floor 1.91'
- Carb pad height = 5.63' with 0° carb angle.
- Recommended intake gasket: JEGS p/n 555-210003
Part TypeIntake Manifold
BrandEDELBROCK
Package Height9.3
Package Width16.5
Package Length23.9
Weight23.65 PG
Part CategoryPerformance Parts
Runners RemovableNo
Number Of CarbsOne
Supplemental Bosses Cast-InNo
Plenum MaterialAluminum
EmissionWithout EGR
Engine Make/SizeChevy Small Block (262-400)
Basic Operating Rpm Range3,500-8,000
Base FinishNatural
Rpm Range3500-8000
Injection StyleMulti-port
Base MaterialAluminum
Plenum FinishNatural
Aftermarket Fuel Rail RequiredYes
Engine Block StyleStock/OEM standard deck
UsageRacing
Throttle Body IncludedNo
PositionN/A
QuantitySold individually
Cylinder Head TypeGM Vortec/Edelbrock E-TEC
Injectors IncludedNo
Fuel Rails IncludedNo
Intake Section IncludedComplete
EgrWithout EGR
Supplemental Bosses MachinedNo
Runners IncludedYes
Vendor Part Number29135
Package Qty1
Package TypeEA
No Questions
No Reviews
Items You Need
![Carburetor Stud Kit [1 1/2 in. Long]](https://www.jegs.com/images/mini_200/500/555/555-15840.jpg)
![Carburetor Stud Kit [2 in. long]](https://www.jegs.com/images/mini_200/500/555/555-15841.jpg)
![Carburetor Stud Kit [2 1/2 in. Long]](https://www.jegs.com/images/mini_200/500/555/555-15842.jpg)
![Carburetor Stud Kit [2 3/4 in. Long]](https://www.jegs.com/images/mini_200/500/555/555-15845.jpg)
![Carburetor Stud Kit [3 1/2 in. Long]](https://www.jegs.com/images/mini_200/500/555/555-15846.jpg)
![Carburetor Stud Kit [3 3/4 in. Long]](https://www.jegs.com/images/mini_200/500/555/555-15847.jpg)
Some parts are not legal for use in California or other states with similar laws / regulations
