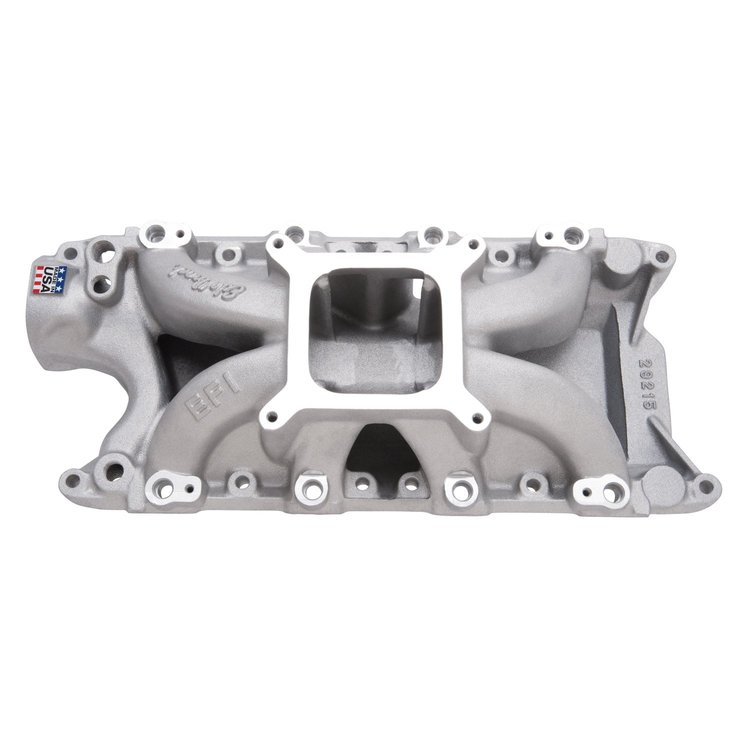

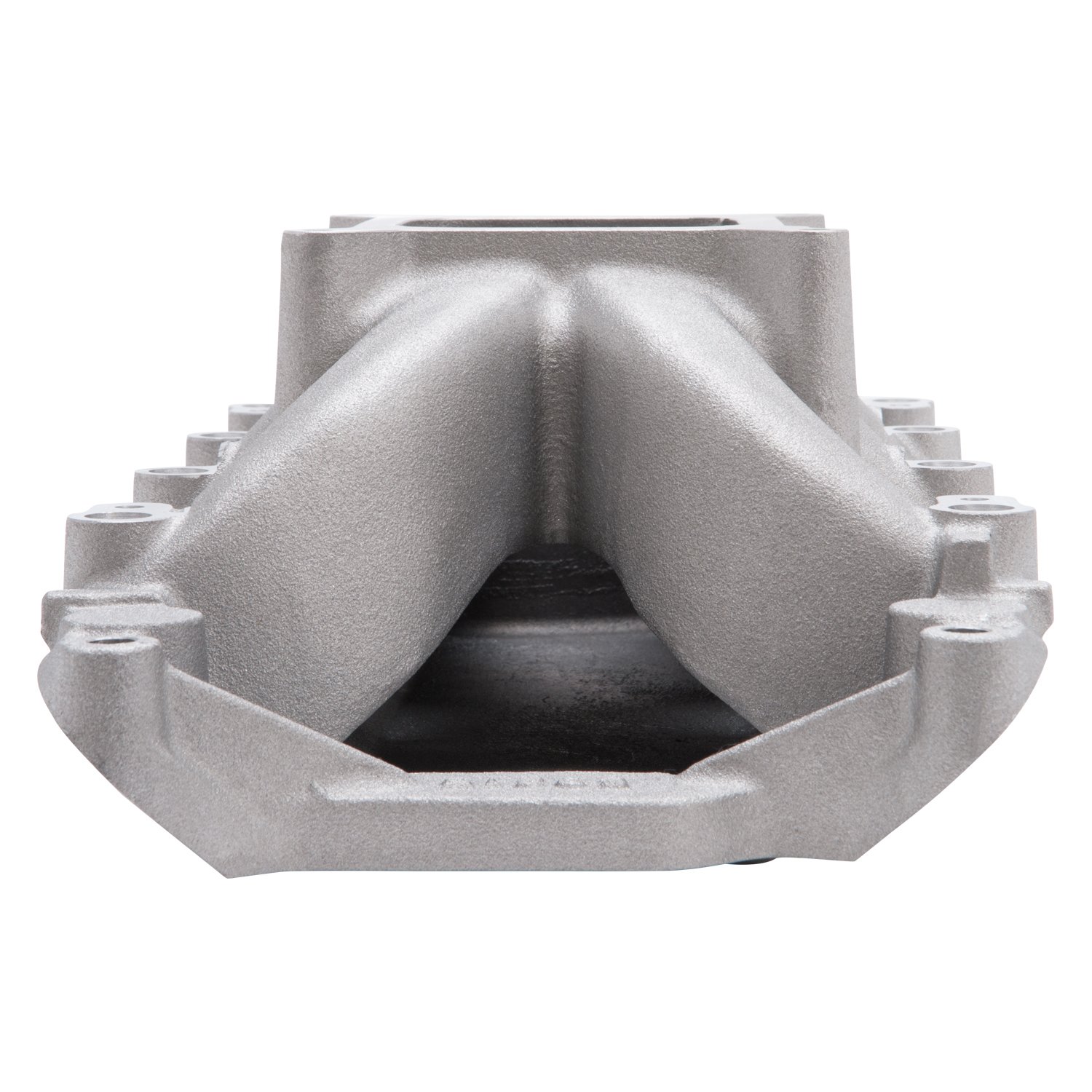

• Designed for Ford 289/302 competition engines using modified stock cast iron or aftermarket Windsor-style cylinder heads such as Edelbrock Performer RPM heads 350-60259, Victor Jr. heads 350-77169, Victor heads 350-77219 or equivalent.

  Installation Notes:

  • Port exit dimensions: 1.08" x 1.90" with extra material for porting to 1.18" x 2.10"
  • Recommended intake gasket: Edelbrock 350-7220, Fel-Pro 375-1250, Jegs 555-210200
  • Manifold height: (A) 5.50' , (B) 5.50'
  • Carb pad height: 5.50'
  • View Manifold 'A/B' Measurement Guide.
  • Square bore 4150 style carb flange
  • Includes Nitrous Bosses
  • Bosses for rear water crossover

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
