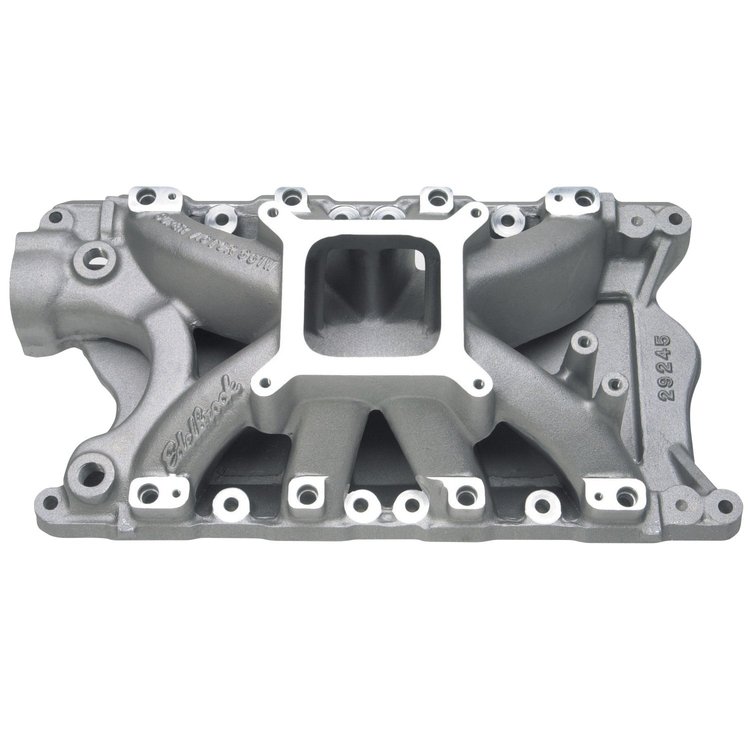

Super Victor 351W EFI Ford Intake Manifold
InfoVehicle Info Needed
EDELBROCKPART NUMBER: 350-29245

Super Victor 351W EFI Ford Intake Manifold

$58995
1 left in stock
ShippingShips Today
Lowest PriceLowest Price Guarantee

Small Block Ford Super Victor EFI
  • Small Block Ford 351 Windsor
  • With 9.5" deck standard block
  • 4150 Throttle Body Flange
  • 4500-8500 RPM Range
  • EFI

    Designed for high rpm or large displacement competition 351 Windsor Ford V8s with a deck height of 9.5" which are used in drag racing or oval track engines operating between 4500 and 8500 rpm. This intake can be used with ported factory cast iron heads, however aftermarket aluminum heads are recommended, such as Edelbrock Victor Jr. heads 350-77169, Victor heads 350-77219 or equivalent for ultra high-horsepower. Runners have a 3.20 square-inch cross sectional area.

    Installation Notes:
  • Recommended intake gasket: Fel-Pro 375-1262, Fel-Pro 375-1262R or Jegs 555-210201
  • Manifold height: (A) 6.25', (B) 6.25'
  • Carb pad height = 6.25' View Manifold 'A/B' Measurement Guide.
  • Square bore 4150 style throttle body flange
  • Includes Nitrous Bosses
  • No rear water crossover
  • MSD distributor 121-8578 must be used to clear the front water crossover
  • Use with Edelbrock Ford Fuel Rail Kit 350-3620
  • Throttle body recommendations: 4150 4V throttle body 350-38783 or EFI elbow 350-3849 with
    90mm Ford style throttle body 350-3818

    • Emissions Note:

    This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

    CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Part TypeIntake Manifold
BrandEDELBROCK
Package Height7.1
Package Width14.7
Package Length23.7
Weight26.1 PG
Part CategoryPerformance Parts
Runners RemovableNo
Number Of CarbsNone, For Fuel Injection
Supplemental Bosses Cast-InYes
Plenum MaterialAluminum
EmissionWithout EGR
Engine Make/SizeFord Small Block
Basic Operating Rpm Range4,500-8,500
Base FinishNatural
Rpm Range4500-8500
Injection StyleMulti-port
Supplemental Boss QuantityEight
Base MaterialAluminum
Plenum FinishNatural
Aftermarket Fuel Rail RequiredYes
Engine Block StyleStock/OEM standard Deck
UsageRacing
Throttle Body IncludedNo
PositionN/A
QuantitySold individually
Cylinder Head TypeStandard
Injectors IncludedNo
Fuel Rails IncludedNo
Intake Section IncludedComplete
EgrWithout EGR
Supplemental Bosses MachinedNo
Runners IncludedNo
Vendor Part Number29245
Package Qty1
Package TypeEA
No Questions
No Reviews
Please click here to download the instructions PDF file
