Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Super Victor
- Small Block Chevy
- 4150-style Square Bore Carb Flange
- Standard Port Location
- 3500-8000 RPM Range
- EnduraShine Finish

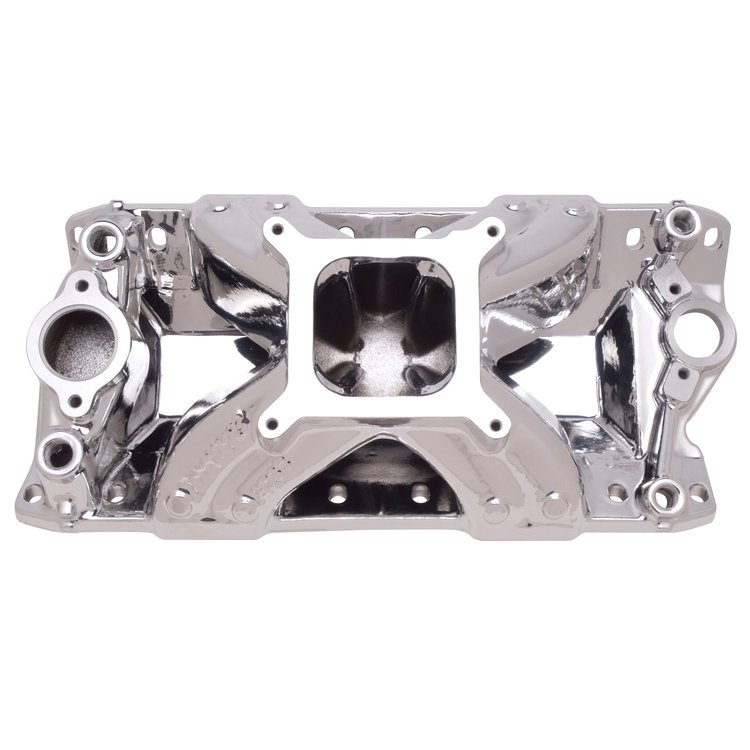

The Super Victor p/n 350-2925 is a high performance feature packed small-block racing manifold for standard port location 23-degree cylinder heads. A taller profile with extra long runners that extend into the plenum offers increased volume. The cross-sectional area of the runners are tuned to complement the runner length creating substantial torque increases at 4500-5500 rpm. The Super Victor also has many features that will be appreciated by the serious engine builder, including: Slotted flange bolt holes to allow mating on decked blocks or milled heads. Rear water outlets allow custom cooling system routing. The flange above the intake ports is machined flat to provide a straight-line reference for port-matching layout. A boss for a distributor clamp has been added on the left side, for easier to access when timing an engine. Each runner has a nitrous boss to aid in fogger nozzle installation.Installation Notes: - Port exit dimensions: 1.20' x 2.00'
- Distance from bolt hole centerline to port roof 0.85'; to port floor 1.15'
- Carb pad height = 5.50' with 0° carb angle.
- Recommended intake gasket: JEGS p/n 555-210001
Part TypeIntake Manifold
BrandEDELBROCK
Package Height7.8
Package Width15.0
Package Length23.6
Weight20.935 PG
Part CategoryPerformance Parts
Engine Block StyleStock/OEM standard deck
UsageRacing
Number Of CarbsOne
Intake MaterialAluminum
PositionN/A
Intake StyleSingle plane
EmissionWithout EGR
QuantitySold individually
Cylinder Head TypeRaised Port 23 Deg.
Intake FinishEnduraShine
Carburetor QuantityOne
Engine Make/SizeChevy Small Block (262-400)
Intake Section IncludedComplete
Basic Operating Rpm Range3,500-8,000
EgrWithout EGR
Rpm Range3500-8000
Intake Manifold Height5.5 in (139.7 mm)
Vendor Part Number29254
Package Qty1
Package TypeEA
