Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Victor 18°
One-Piece Design
One-Piece Design

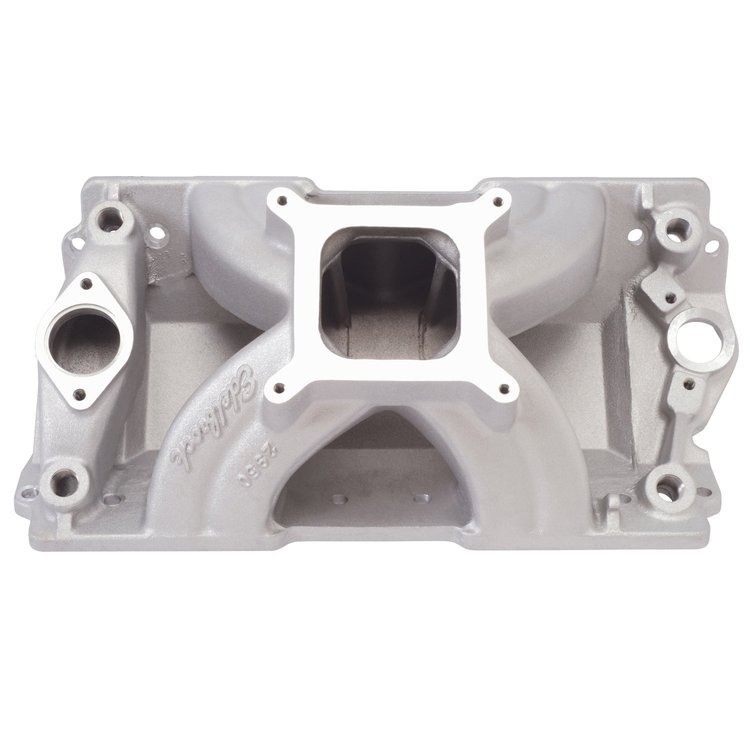

- Victor 18° Intake Manifold
- One-Piece Design
- Small Block Chevy w/ 18° Cylinder Heads
- 2.9 Square-Inch Cross-Section Runners
- 4150-style Square Bore Carb Flange
- 5000-8500 RPM Range
Designed for use on 9.5:1 compression engines with 390 cfm carbs and GM or Edelbrock 18° heads. Intake runners have a 2.9 square-inch cross-section. Features 1/2' female pipe bosses over rear water outlets to allow for customization of cooling system and dual distributor clamp locations for ease of timing adjustment. Relief for center water outlets included.Installation Notes: - Port exit dimensions: 1.20' x 2.02'
- Distance from bolt hole centerline to port roof 1.76'; to port floor 0.26'
- Carb pad height = 7.03' with 0° carb angle.
- Recommended intake gasket: JEGS p/n 555-210007
Part TypeIntake Manifold
BrandEDELBROCK
Package Height9.0
Package Width15.75
Package Length22.06
Weight21.56 PG
Part CategoryPerformance Parts
Engine Block StyleStock/OEM standard deck
UsageRacing
Number Of CarbsOne
Intake MaterialAluminum
PositionN/A
Intake StyleSingle plane
EmissionWithout EGR
QuantitySold individually
Cylinder Head TypeEdelbrock 18 Deg.
Intake FinishNatural
Carburetor QuantityOne
Engine Make/SizeChevy Small Block (262-400)
Intake Section IncludedComplete
Basic Operating Rpm Range5,000-8,500
EgrWithout EGR
Rpm Range5000-8500
Intake Manifold Height7.03 in (178.562 mm)
Vendor Part Number2950
Package Qty1
Package TypeEA
