Product Discontinued
EDELBROCKPART NUMBER: 350-2967

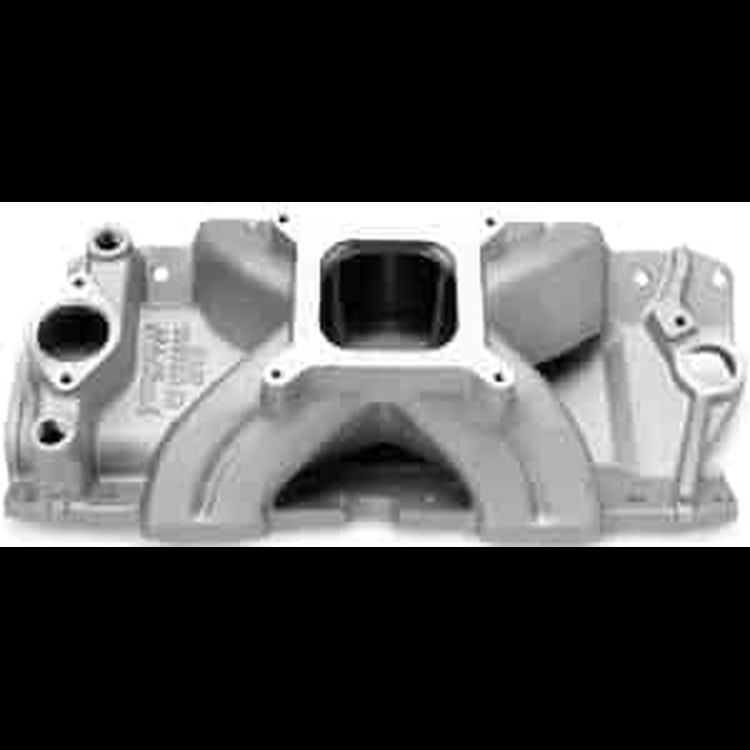

Victor Jr. High-Port Intake Manifold Small Block Chevy Raised Port 23° Cylinder Heads
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Victor Jr.
- Victor Jr. High-Port Intake Manifold
- Small Block Chevy Raised Port 23° Cylinder Heads
- 4150-style Square Bore Carb Flange
- 4000-8000 RPM Range
Ideal for bracket race and 9:1 compression, 390 cfm carb oval track applications, this manifold provides excellent mid-range to top-end power for engines with raised-port 23° heads such as Pontiac #10045434, #10033867 and Chevrolet Raised Runner Bowtie heads #10051101. Runners have a 2.80 square-inch cross-section. Relief for center water outlets included.Installation Notes: - Port exit dimensions: 1.18' x 1.85'
- Distance from bolt hole centerline to port roof 1.10'; to port floor 0.75'
- Carb pad height = 5.35' with 0° carb angle.
- Recommended intake gasket; Felpro 375-1263
Part TypeIntake Manifold
BrandEDELBROCK
Package Height6.1
Package Width11.3
Package Length23.8
Weight18.9 PG
Part CategoryPerformance Parts
UsageRacing
Number Of CarbsOne
EmissionWithout EGR
Rpm Range4000-8000
Cylinder Head TypeStandard
Engine Make/SizeChevy Small Block (262-400)
Package Qty1
Package TypeEA
