Vehicle Info NeededEDELBROCKPART NUMBER: 350-2971

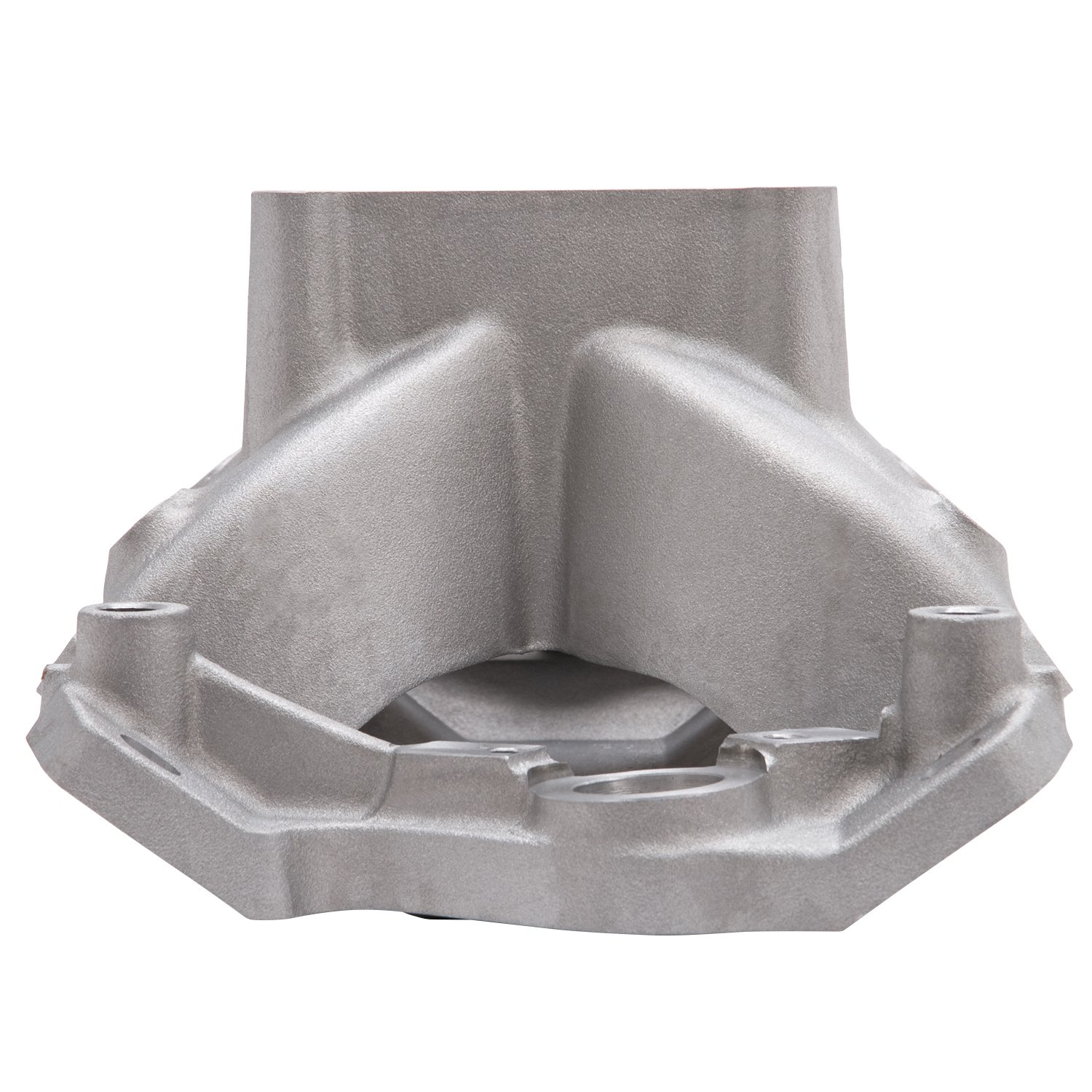

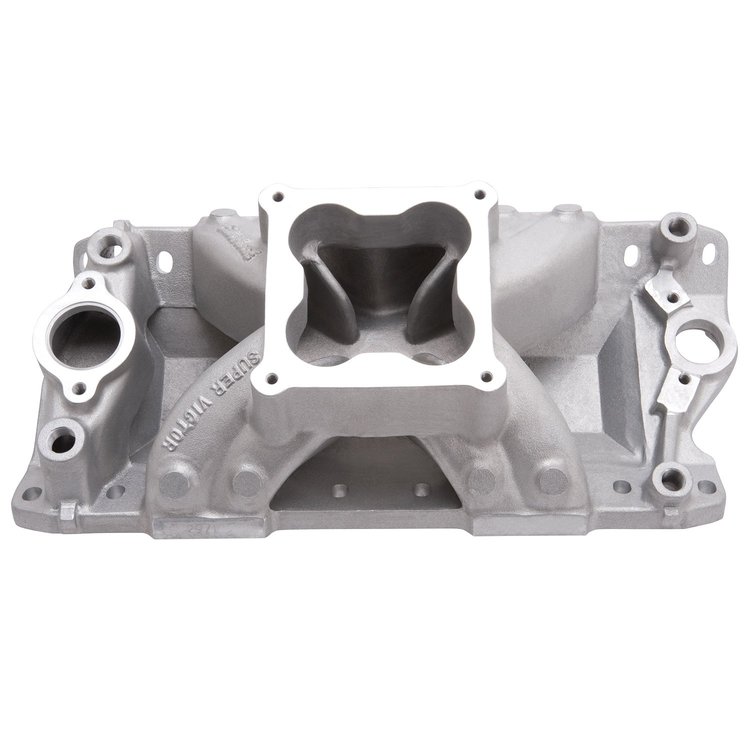

Super Victor 4500 Intake Manifold Small Block Chevy w/Raised Intake Port Location 23° Cylinder Heads
$56995
Ships on 09/15/2026
Lowest Price GuaranteeSuper Victor 4500
- Super Victor 4500 Intake Manifold
- Small Block Chevy w/Raised Intake Port Location 23° Cylinder Heads
- 4500-style Square Bore Carb Flange
- 3500-8000 RPM Range
Designed for small-block Chevys with 4500 series carburetors and 23° cylinder heads. They have a large runner cross-sectional area (3.2 square inches) and a highly efficient cloverleaf plenum design.Installation Notes: - Port exit dimensions: 1.21' x 2.02'
- Distance from bolt hole centerline to port roof 1.06'; to port floor 0.96'
- Carb pad height = 6.77' with 0° carb angle.
- Recommended intake gasket: Fel-Pro p/n 375-1263
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeIntake Manifold
BrandEDELBROCK
Package Height7.6
Package Width15.0
Package Length23.6
Weight23.98 PG
Part CategoryPerformance Parts
Engine Block StyleStock/OEM standard Deck
UsageRacing
Number Of CarbsOne
Intake MaterialAluminum
PositionN/A
Intake StyleSingle plane
EmissionWithout EGR
QuantitySold individually
Cylinder Head TypeStandard
Intake FinishNatural
Carburetor QuantityOne
Engine Make/SizeChevy Small Block
Intake Section IncludedComplete
Basic Operating Rpm Range3,500-8,000
EgrWithout EGR
Rpm Range3500-8000
Intake Manifold Height6.77 in (171.958 mm)
Vendor Part Number2971
Package Qty1
Package TypeEA
