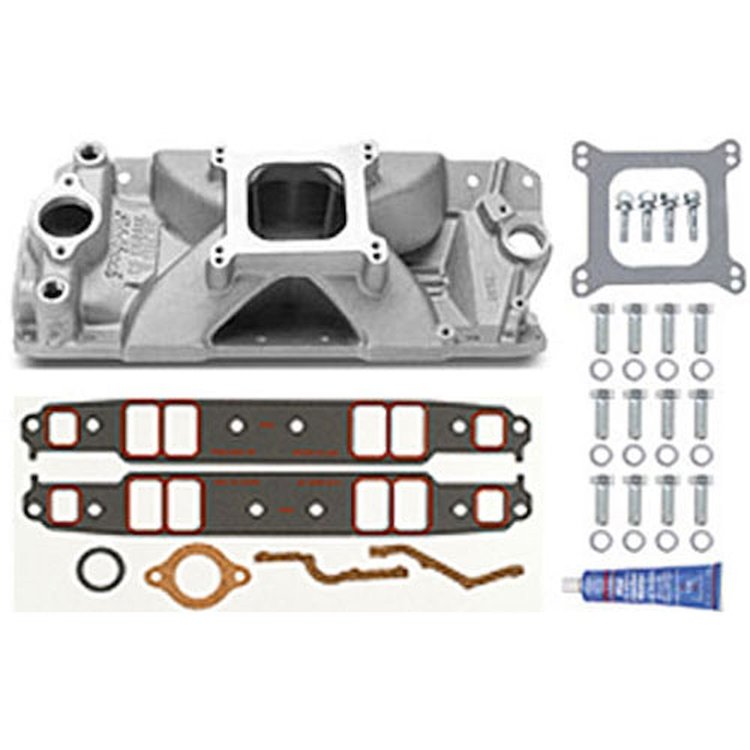

Bowtie II Victor Jr. 23° Intake Manifold w/Installation Kit
- Small Block Chevy using Unported Cheverolet Bowtie Cast Iron Cylinder Heads
Includes: - Bowtie II Victor Jr. Intake Manifold
- Intake Gasket
- Carb Gasket
- Carb Studs
- Intake Bolts
- Blue RTV Silicone
This is a great value! These kits ensure that you'll get the job done right. Each kit includes an Edelbrock intake manifold, quality intake bolts, intake gaskets, carb gaskets, a tube of blue gasket sealer and we also throw in a set of carburetor studs.Bowtie II intakes provide maximum performance for engines using unported Chevrolet Bowtie cast iron heads #14011058, #14011034 and #10134392. The intake manifold port exits match up to these heads with little or no matching required. This is ideal for classes where rules restrict the porting of intake manifolds to match cylinder heads. The 350-2972 can be tuned for greater performance gains when used with 1" or 2" carb spacers. In classes where spacers are not allowed, the 350-2996 should be used.
Installation Notes: - Port exit dimensions: 1.18' x 2.04'
- Distance from bolt hole centerline to port roof 0.89'; to port floor 1.15'
- Carb pad height = 4.58' with 3° carb angle.
INTAKE MANIFOLD W/ INSTALLATION KIT INCLUDES Kit Part Number Intake Manifold Intake Gaskets Intake
Bolt KitCarb Stud Kit Carb Gasket Silicone 350-2972K 350-2972 555-210001 555-83200 555-15840 555-16100 555-28030 Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
