Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

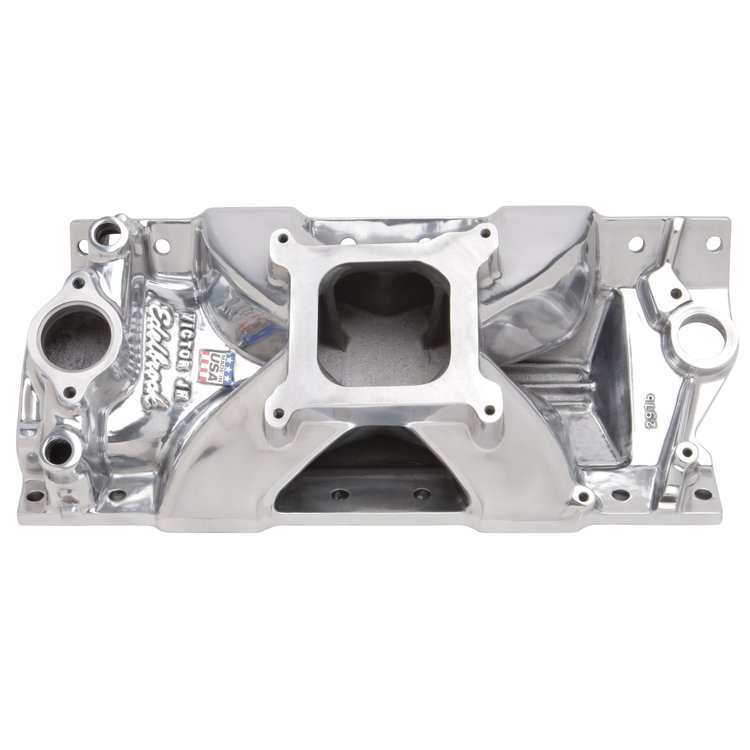

Victor Jr.
- Victor Jr. Intake Manifold
- Small Block Chevy
- 4150-style Square Bore Carb Flange
- 3500-8000 RPM Range
- Polished Finish
These versatile manifolds are excellent for many applications from high-performance street to drag/circle track racing. They provide maximum performance for engines with standard port location, iron and aluminum cylinder heads. The low-profile of the #2975 works well in applications with minimal hood clearance and where 1" or 2" spacers can be used for performance tuning. When carb spacers are not allowed, the #2999 should be used. The Victor Jr. Port Matched manifold has CNC-blended port exits that match any competition head using Fel-Pro gasket p/n 375-1206 or JEGS gasket p/n 555-210001Installation Notes: - Port exit dimensions: 1.10' x 1.90'
- Distance from bolt hole centerline to port roof 0.80'; to port floor 1.10'
- Carb pad height = 4.58' with 3° carb angle.
- Recommended intake gasket; JEGS 555-210001
Part TypeIntake Manifold
BrandEDELBROCK
Package Height8.1
Package Width15.4
Package Length23.4
Weight20.8 PG
Part CategoryPerformance Parts
Engine Block StyleStock/OEM standard Deck
UsageRacing
Number Of CarbsOne
Intake MaterialAluminum
PositionN/A
Intake StyleSingle plane
EmissionWithout EGR
QuantitySold individually
Cylinder Head TypeStandard
Intake FinishPolished
Carburetor QuantityOne
Engine Make/SizeChevy Small Block (262-400)
Intake Section IncludedComplete
Basic Operating Rpm Range3,500-8,000
EgrWithout EGR
Rpm Range3500-8000
Intake Manifold Height4.58 in (116.332 mm)
Vendor Part Number29751
Package Qty1
Package TypeEA
