Vehicle Info NeededEDELBROCKPART NUMBER: 350-29785K
Victor E 23° EFI Intake Manifold with Installation Kit for Small Block Chevy
$66258
Ships on 10/19/2026
Lowest Price GuaranteeSmall Block Chevy
- Small Block Chevy
- 23° Standard Port Location Cylinder Heads

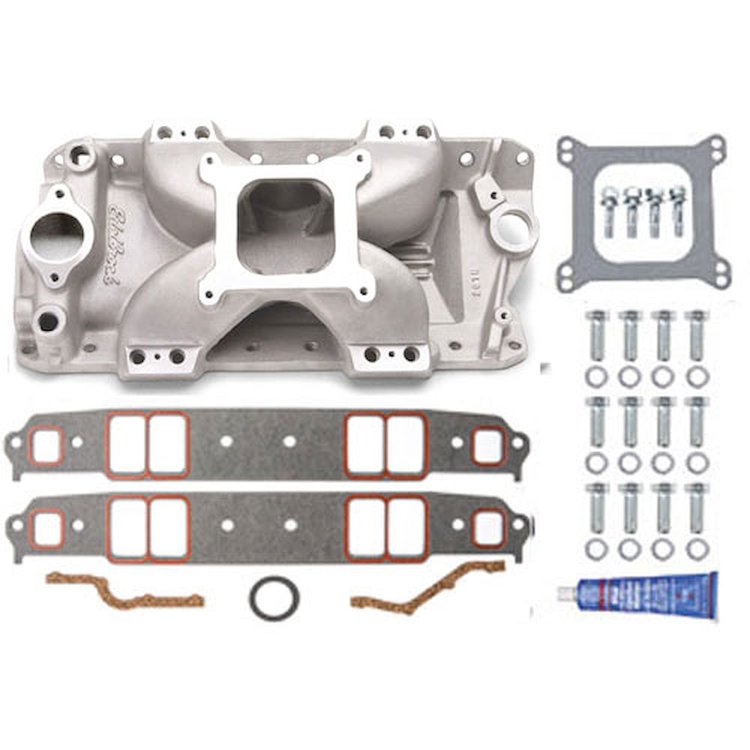

Includes: - Victor E 23° EFI Intake Manifold
- Intake Gasket
- Carb Gasket
- Carb Studs
- Intake Bolts
- Blue RTV Silicone
Ideal for high-rpm drag race applications, the Victor E EFI has a larger and deeper plenum than the Edelbrock p/n 350-2975. It provides maximum power in the higher rpm range for engines with standard port location iron and aluminum heads. Runners have a tapered cross-section, and plenty of material at the manifold port exit allows port matching to the small port heads used in NHRA Super Stock classes. 1' or 2' spacers can be used for performance tuning. Compatible with Standard or Pico injectors.Installation Notes:
- Port exit dimensions: 1.10' x 1.90'
- Distance from bolt hole centerline to port roof 0.80'; to port floor 1.10'
- Carb pad height = 4.58' with 3° carb angle.
- Recommended intake gasket; JEGS 555-210001
- Use with Edelbrock Victor E EFI Fuel Rail Kit p/n 350-3630.
This is a great value! These kits ensure that you'll get the job done right. Each kit includes an Edelbrock intake manifold, quality intake bolts, intake gaskets, a tube of blue gasket sealer, carb/throttle body studs and base gasket. INTAKE MANIFOLD W/ INSTALLATION KIT INCLUDES Kit Part Number Intake Manifold Intake Gaskets Intake
Bolt KitCarb Stud Kit Carb Gasket Silicone 350-29785K 350-2978 555-210001 555-83200 720-59 720-54 555-28030 Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeIntake Manifold
BrandEDELBROCK
Part CategoryPerformance Parts
Package Qty1
Package TypeEA
