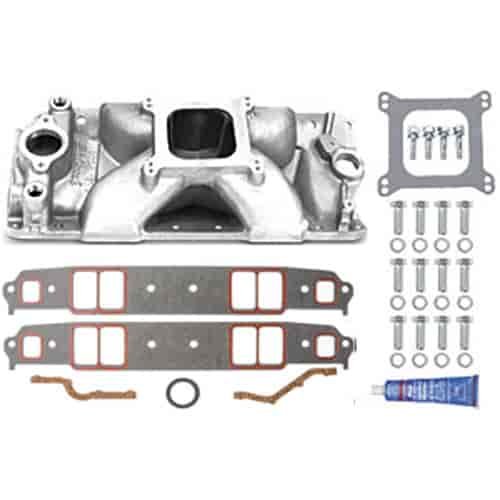

Victor E 23° Intake Manifold with Installation Kit for Small Block Chevy
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
- Small Block Chevy
- 23° Standard Port Location Cylinder Heads
Includes: - Victor E Intake Manifold
- Intake Gasket
- Carb Gasket
- Carb Studs
- Intake Bolts
- Blue RTV Silicone
This is a great value! These kits ensure that you'll get the job done right. Each kit includes an Edelbrock intake manifold, quality intake bolts, intake gaskets, carb gaskets, a tube of blue gasket sealer and we also throw in a set of carburetor studs.Ideal for high-rpm drag race applications, the Victor E has a larger and deeper plenum than the Edelbrock p/n 350-2975. It provides maximum power in the higher rpm range for engines with standard port location iron and aluminum heads. Runners have a tapered cross-section, and plenty of material at the manifold port exit allows port matching to the small port heads used in NHRA Super Stock classes. 1' or 2' spacers can be used for performance tuning. The large plenum and runner volume of this manifold is also ideal for alcohol-fueled applications.
Installation Notes: - Port exit dimensions: 1.10' x 1.90'
- Distance from bolt hole centerline to port roof 0.80'; to port floor 1.10'
- Carb pad height = 4.58' with 3° carb angle.
- Recommended intake gasket; JEGS 555-210000>
INTAKE MANIFOLD W/ INSTALLATION KIT INCLUDES Kit Part Number Intake Manifold Intake Gaskets Intake
Bolt KitCarb Stud Kit Carb Gasket Silicone 350-2978K 350-2978 555-210000 555-83200 555-15840 555-16100 555-28030
Since founder Vic Edelbrock Sr. began building performance intake manifolds in 1938, Edelbrock has grown into one of the most trusted names in American high-performance parts, from carburetors and intake manifolds to cylinder heads, crate engines, and EFI systems. JEGS has spent decades supplying Edelbrock components to racers, engine builders, and street enthusiasts, backing this extensive lineup with in-house technical support, fast shipping, and a Price Match Guarantee so you can choose proven Edelbrock parts with confidence.
Professionally Engineered Intake Manifolds
Expertly crafted from cast aluminum, Edelbrock Victor Series Intake Manifolds are engineered in conjunction with leading engine builders and racers from all forms of competition to incorporate a modern design with the latest racing technology. JEGS offers a comprehensive selection of high-performance Edelbrock Victor-style manifolds, so you can choose the best "Victor" to match your carburetor, cams, and heads for a winning formula of horsepower, torque, and RPM. Victor Jr. manifolds are cast with excess mass in appropriate places for custom port matching.
