Wide Band Air/Fuel Ratio Interface

Name: Wide Band Air/Fuel Ratio Interface
Brand: EDELBROCK
SKU: 350-3532
Price: 444.99 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Air/Fuel Ratio Monitor

Includes Single O2 Sensor

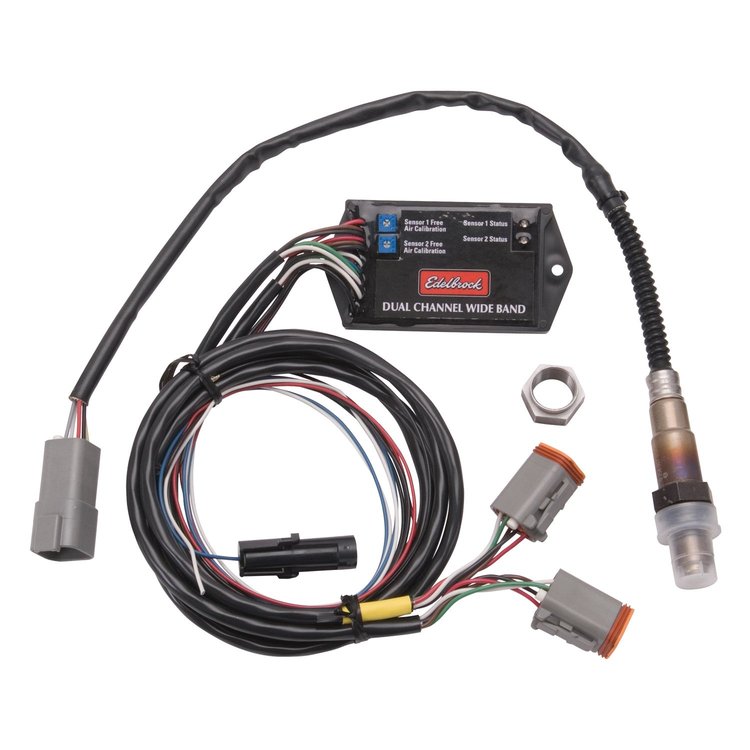

This Edelbrock Wide Band Air/Fuel Ratio interface unit will not only work with all current Edelbrock EFI systems, but with any aftermarket EFI system that can accept a 0-5 volt input for monitoring Air Fuel Ratios. Features two independent 0-5V analog outputs that are linearly scaled with 0V=10.0 AFR and 5V=20.0 AFR. Includes interface unit, sensor, weld-in bungs and all necessary wiring. Does not have internal data logging capability and only includes a single oxygen sensor. For data acquisition applications requiring two oxygen sensors, use Dual Channel Wide Band kit #91170.
Allows improved Closed Loop control of the current Pro-Flo EFI systems
Suitable for automotive, motorcycle, and other 4-Stroke engine applications
Highly accurate with less than +/- 0.10 AFR error over 10.3 - 19.5 AFR range
Easy free-air calibration procedure corrects for sensor aging effects
0-5V analog AFR output for interface to EFI, Data or Dyno instrumentation.
Wide supply voltage range from 11-18V allows operation from battery on small engines or race vehicles with out an alternator
Current draw is approx. 1 amp
Features compact 4" x 2" x 0.5" water-proof enclosure

Part TypeGauge

BrandEDELBROCK

Package Height3.2

Package Width9.7

Package Length13.2

Weight1.58 PG

Part CategoryPerformance Parts

Bezel ColorNA

SizeN/A

QuantitySold as a kit

Voltage Range0-5 V

Dial (Face Color)Black

Vendor Part Number3532

Package Qty1

Package TypeEA

No Questions

No Reviews

Some parts are not legal for use in California or other states with similar laws / regulations
