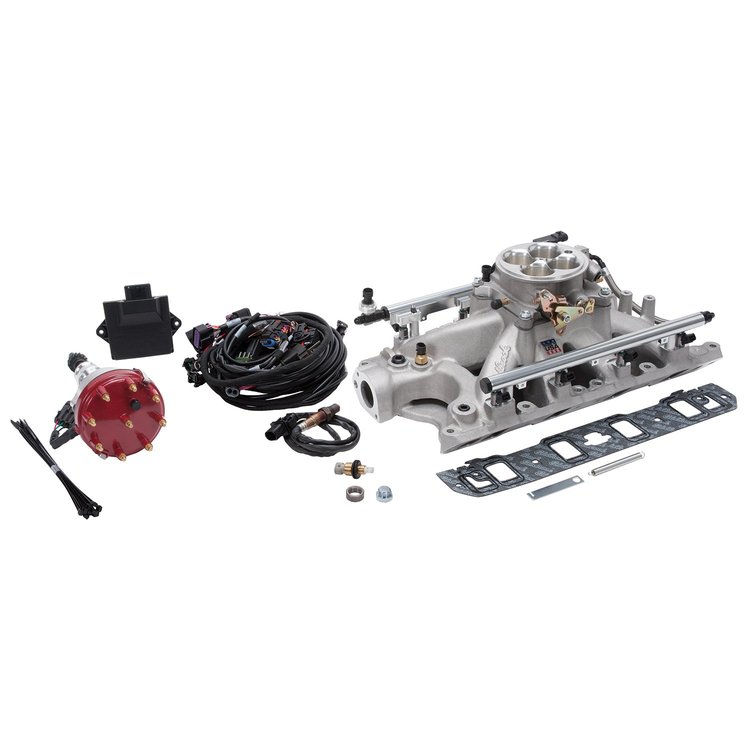

Breakdown of Included Items

Features:

• For Small Block Ford 351W V8 engines
• Traditional 4150-style single plane intake manifold in satin finish
• 4-barrel throttle body with up to 1000 CFM flow
• 35 lbs./hr. fuel injectors support up to 550 hp maximum
• Fuel pressure port: 1/8 in.-27 NPT
• Intake manifold height: 6.250 in.
• Throttle body height: 2.250 in.
• Throttle body bore diameter: 1.750 in.
• Ready-to-run right out of the box with dyno developed base calibrations*
• No tuning experience or laptop tuning required
• Adjusts calibration continually as the vehicle is driven
• Automatically compensates for altitude and weather changes
• Air-fuel ratios, ignition curve, idle speed, acceleration fuel, coolant fans, and rev limiter adjustability
• Works with a return-style fuel system or can be used with a universal EFI fuel sump
• Self-learn is compatible with boost from turbochargers, positive displacement, and centrifugal superchargers

Note:

• Will require a high-pressure EFI fuel delivery system (sold separately)
• Can support up to 1,000 HP or 15 psi in boosted applications but may require the following components
  • 80 lb. Fuel Injectors 350-3522
  • 60 lb. Fuel Injectors 350-3697
  • 2-Bar Map Sensor 350-3542
  • TMap Sensor and Harness 350-3547
• Controlled via Bluetooth connectivity and app installed on iPhone or Android compatible device*

*E-Tuner 4 App: A key component to the Pro-Flo 4 EFI System is the E-Tuner 4 app. This app features dyno-developed base calibration which makes each system ready-to-run right out of the box. The E-Tuner 4 app uses a Bluetooth wireless connection to communicate with the ECU's self-learning capability to continually adjust the calibration to get maximum performance and multiple dash-displays that monitor engine vitals. The E-Tuner 4 app is free and can be downloaded from the Google Play Store, allowing the use of most personal Android-based smartphones or tablets.

E-Tuner 4 App Link:

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
