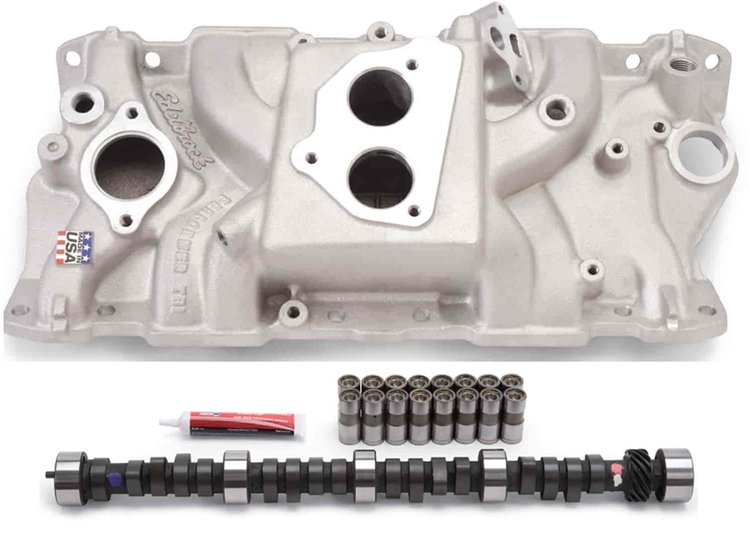

Small Block Chevy T.B.I Performer Power Package 1987-1995 Small Block Chevy TBI 305/350ci (EGR)
InfoVehicle Info Needed
EDELBROCKPART NUMBER: 350-3704PK

Small Block Chevy T.B.I Performer Power Package 1987-1995 Small Block Chevy TBI 305/350ci (EGR)

$93290
ShippingShips Today
Lowest PriceLowest Price Guarantee

Small Block Chevy 305/350ci TBI 1987-95
Intake Manifold and Camshaft Kit
  • 1987-1995 Small Block Chevy TBI 305/350ci (EGR)
  • Lift: 0.398 in./0.442 in.
  • Duration @ .050: 194 Degrees/214 Degrees
  • Advertised Duration: 244 Degrees/264 Degrees
  • Idle-5500 RPM Range
  • Satin Finish

    Edelbrock 3704PK Small Block Chevy T.B.I Performer Power Package Includes:

    • (1) Edelbrock Performer T.B.I. Small Block Chevy Intake Manifold - 3704
    • (1) Edelbrock Performer-Plus Camshaft Kit Small Block Chevy 305-350 (TBI/LG4) - 3702

    Emissions Note:

    This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

    CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

    • Part TypeIntake Manifold
    BrandEDELBROCK
    Exh. Duration @ .050 In. (Deg)214
    Exh. Duration Advertised (Deg)264
    Retainers IncludedNo
    Int. Duration @ .050 In. (Deg)194
    Assembly Lubricant IncludedYes
    Basic Operating Rpm RangeIdle-5,500
    Pushrods IncludedNo
    Computer-Controlled CompatibleYes
    Int. Duration Advertised (Deg)244
    Lobe Separation (Deg)112
    Lifter StyleHydraulic flat tappet
    Injection StyleThrottle body
    Exhaust Valve Lift With Factory Rocker Arm Ratio (0.442
    Base MaterialAluminum
    Plenum FinishNatural
    Valve Lift With Factory Rocker Arm Ratio0.398 int./0.442 exh.
    Throttle Body IncludedNo
    PositionN/A
    Cylinder Head TypeStandard
    Valve Stem Seals IncludedNo
    Fuel Rails IncludedNo
    Exhaust Valve Lift0.442 in (11.227 mm)
    Advertised Intake Duration244
    Intake Section IncludedComplete
    Intake Duration At 050 Inch Lift194
    Exhaust Duration At 050 Inch Lift214
    Supplemental Bosses MachinedNo
    Advertised Exhaust Duration264
    Duration At 050 Inch Lift194 int./214 exh.
    Lifters IncludedYes
    Part CategoryPerformance Parts
    Runners RemovableNo
    Number Of CarbsNone, For Fuel Injection
    Supplemental Bosses Cast-InNo
    Plenum MaterialAluminum
    Cam StyleHydraulic flat tappet
    EmissionWith EGR
    Locks IncludedNo
    Engine Make/SizeChevy Small Block (262-400)
    Intake Valve Lift With Factory Rocker Arm Ratio (I0.398
    Gaskets IncludedNo
    Rocker Arms IncludedNo
    Intake Valve Lift0.398 in (10.109 mm)
    Base FinishNatural
    Rpm RangeIdle -5500
    Advertised Duration244 int./264 exh.
    Valve Springs IncludedNo
    Aftermarket Fuel Rail RequiredNo
    Engine Block StyleStock/OEM standard deck
    UsageStreet/Performance
    QuantitySold individually
    Injectors IncludedNo
    EgrYes
    Timing Chain And Gears IncludedNo
    Runners IncludedNo
    Lifter TypeHydraulic Flat Tappet
    Part FitmentSemi Universal
    Valve Springs RequiredYes
    Package Qty1
    Package TypeEA
    No Questions
    No Reviews
    Please click here to download the instructions PDF file
