Performer 302 Intake Manifold w/Installation Kit SB-Ford 302ci

Name: Performer 302 Intake Manifold w/Installation Kit SB-Ford 302ci
Brand: EDELBROCK
SKU: 350-3721K
Price: 485.30 USD
Availability: InStock

^$485³⁰

2 left in stock

Ships Today

Lowest Price Guarantee

Ford 260-302ci Small Block V8

Small Block Ford 302ci
4-bbl Square-Bore Carb Flange (EGR)
Idle-5500 RPM Range

This is a great value! These kits ensure that you'll get the job done right. Each kit includes an Edelbrock intake manifold, quality intake bolts, intake gaskets, carb gaskets, a tube of blue gasket sealer and we also throw in a set of carburetor studs.
Designed for carbureted 302ci Ford V8s with EGR. This intake manifold is for 302 4-V V8s; 1983-85. Replaces the stock 4V EGR manifold using the stock 4V adapter. Can be adapted for 4V use by using Edelbrock's 4V EGR plate p/n 350-8053 and the OEM EGR valve and gasket. Edelbrock's EGR adapter kit p/n 350-8017 and Ford p/n E4ZZ9A-589E spacer may be substituted for p/n 350-8053 EGR plate (1983-85 H.O. Mustangs/Capris come with this Ford spacer). For 4V off-highway non-EGR applications, use Edelbrock's carb spacer p/n 350-8714. Aftermarket 4-bbl. carbs are not compatible with Automatic Overdrive Transmission (AOD).

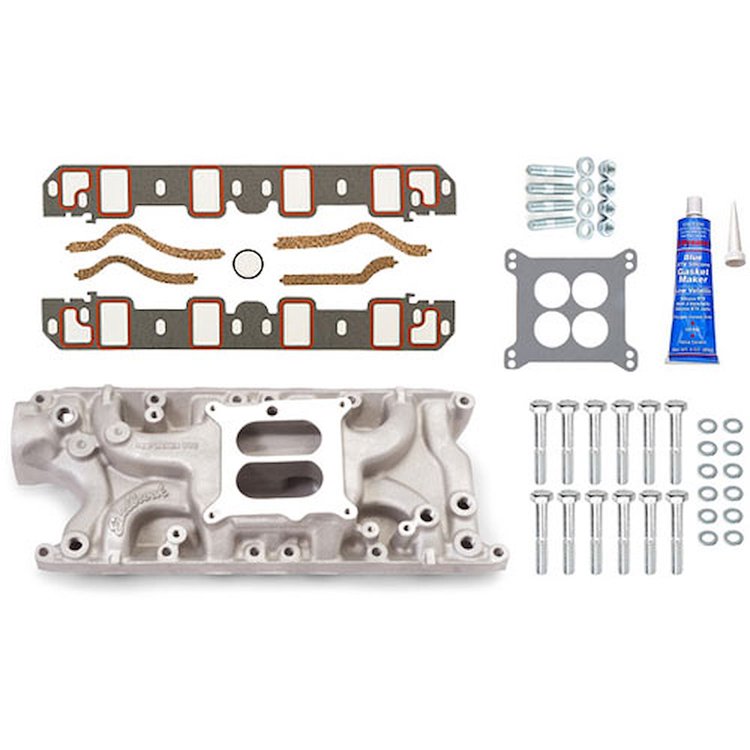

Kit Includes:
Edelbrock Performer Intake Manifold - 350-3721
JEGS Intake Gasket - 555-210200
JEGS Intake Bolts - 555-83210
JEGS Carb Stud Kit - 555-15840
JEGS Carb Gasket - 555-16105
JEGS Blue RTV Gasket Sealer - 555-28030

Installation Notes:
this intake manifold includes gaskets & 4-bbl plate p/n 350-8017 for sealing of OEM EGR plate & carb.
Port exit dimensions: .90' x 1.09'
Manifold height without EGR plates installed: (A) 3.13' , (B) 4.31'; Carb Pad Height: 3.72"
Manifold height with EGR plates installed: (A) 4.00' , (B) 5.19'; Carb Pad Height: 4.59"
Click here to determine carburetor pad height.
Recommended Intake Gasket: JEGS p/n 555-210200

Carburetor Recommendations:
OEM 4-bbl.
use automatic transmission rod extension kit p/n 350-8011 (if necessary).

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Since founder Vic Edelbrock Sr. began building performance intake manifolds in 1938, Edelbrock has grown into one of the most trusted names in American high-performance parts, from carburetors and intake manifolds to cylinder heads, crate engines, and EFI systems. JEGS has spent decades supplying Edelbrock components to racers, engine builders, and street enthusiasts, backing this extensive lineup with in-house technical support, fast shipping, and a Price Match Guarantee so you can choose proven Edelbrock parts with confidence.

Idle-5500 RPM Power!

Performer manifolds are dual-plane, low-rise intake manifolds with a 180° firing order and a patented runner design that delivers outstanding performance. This patented design greatly improves torque over a wide rpm range, especially off-idle through 5500 rpm. Provides crisp throttle response.
