This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

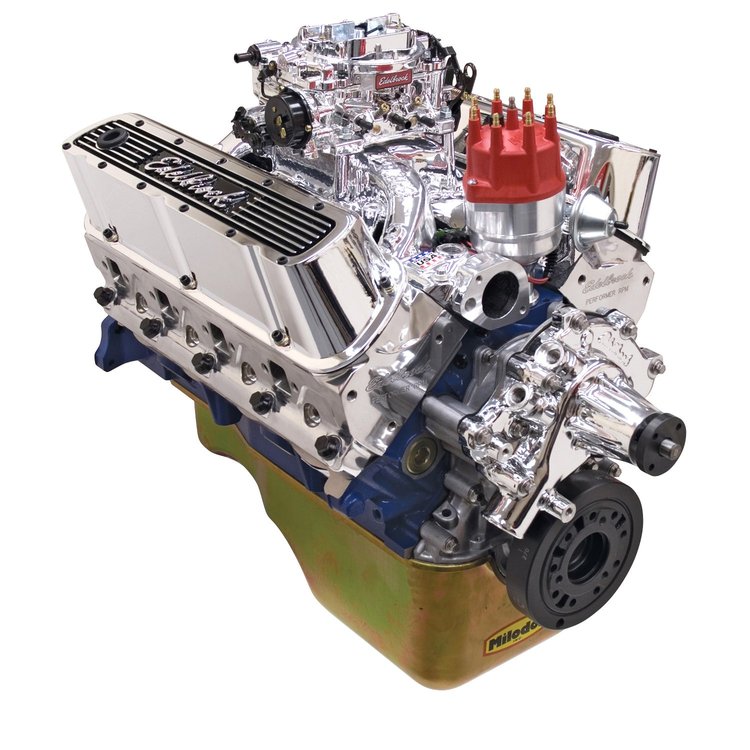

- Performer RPM Crate Engine
- Small Block Ford 347ci
- 438HP , 413TQ
- Front Sump Oil Pan
- Performer RPM Air-Gap Intake
- Performer RPM Heads
- Endurashine Finish
- 438 HP and 413 ft/lbs. of Torque
- Performer RPM Intake Manifold
- Thunder Series AVS 800 cfm Carb
- Aluminum Valve Covers w/Custom Badge
- Custom Assembled By Edelbrock Technicians
- High Quality Edelbrock Aluminum Heads
- 24 Month/Unlimited Mileage Warranty
ENGINE OIL: The engine is supplied with Edelbrock Break-In Oil in the crate. Before starting the engine, you will need to prime the oil system. Do not turn the engine over with starter motor for priming. Mark the distributor, as it comes preset on #1 cylinder. Then, remove and use a priming tool to turn the pump shaft.
Change the engine oil no more than 300 miles after break-in. Use of oil with zinc or a zinc additive for the life of your engine is recommended.
Edelbrock Ford crate engines are an exciting new addition to the popular Edelbrock crate engine line. These small-block Ford offerings are 100% brand new - no reconditioned parts - and deliver the quality and performance you've come to expect from Edelbrock!
Additional qualities include Edelbrock 1.6:1 roller rockers, MSD distributor and a Milodon oil pan. A two year, unlimited warranty is included and administered through Edelbrock. All Edelbrock crate enginies are hand assembled by dedicated Edelbrock technicians
Show More
| Engine Specifications | ||
| 347ci Performer RPM | 347ci Performer RPM Dual-Quad | |
| Displacement | 350 cid | 350 cid |
| Horsepower | 438 | 449 |
| Torque | 413 ft.lb | 417 ft.lb |
| Compression | 9.5:1 | 9.5:1 |
| Block | Small Block (8.2" Deck Height) | Small Block (8.2" Deck Height) |
| Crankshaft | Forged Steel | Forged Steel |
| Pistons | Forged | Forged |
| Camshaft | Rollin' Thunder Hydraulic Roller 350-2281 | Rollin' Thunder Hydraulic Roller 350-2281 |
| Rocker Arms | 1.6:1 Roller | 1.6:1 Roller |
| Intake Manifold | RPM Air Gap 350-75214 | RPM Air Gap Dual-Quad 350-75354 |
| Cylinder Heads | Performer RPM 350-60259 | Performer RPM 350-60259 |
| Carburetor | Thunder Series AVS | Thunder Series AVS |
| Water Pump | Victor Series Aluminum | Victor Series Aluminum |
| Distributor | Included | Included |
| Valve Covers | Cast Aluminum | Elite Series - EnduraShine |
| Finish | Satin, Polished & EnduraShine | EnduraShine |
| Break-In Oil | Includes 6 Quarts of Edelbrock SAE30 350-1070 NOTE: customer must add oil before start-up | Includes 6 Quarts of Edelbrock SAE30 350-1070 NOTE: customer must add oil before start-up |
| Warranty | Manufacturers 2-Year, Unlimited Mileage | Manufacturers 2-Year, Unlimited Mileage |
Tech Note
All 347ci Ford crate engines come equipped with 3-bolt pulley damper, right-hand inlet water pump and left-hand timing pointer. Optional 4-bolt pulley damper, left-hand inlet water pump, and right-hand timing pointer are available by request.
