Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

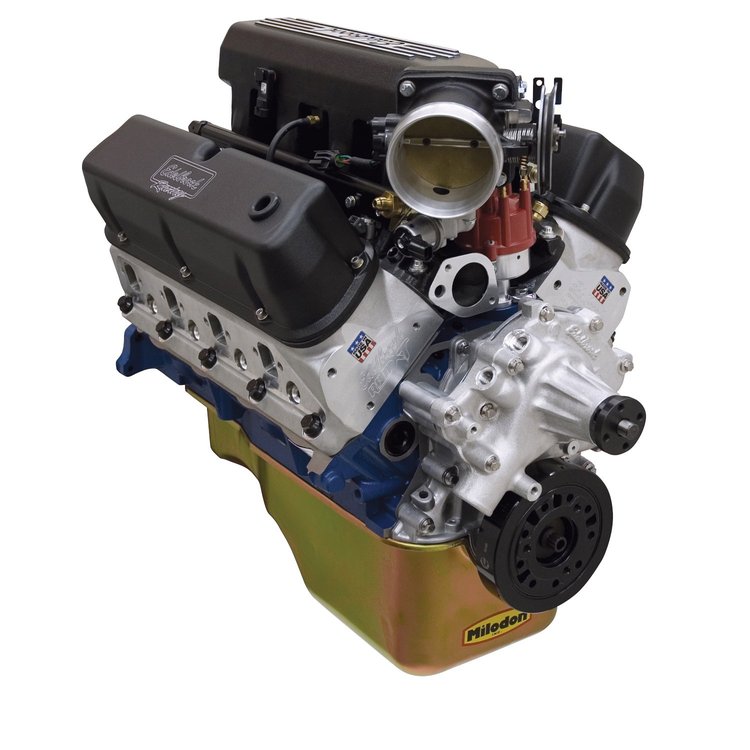

- Performer RPM XT EFI Small Block Ford Engine
- 347ci / 503HP / 445TQ
Engine Specifications Displacement 347 cid Horsepower 503HP Torque 445TQ Compression 9.9:1 Block NEW Ford Boss 4-Bolt Main Crankshaft Forged Steel Pistons Forged Aluminum Camshaft Rollin' Thunder 350-2281 Rocker Arms 1.6:1 Roller Intake Manifold Pro-Flo XT 350-35203 Cylinder Heads E-CNC 350-79259 Throttle Body Pro-Flo XT 90mm Water Pump Victor Series Aluminum 350-8841 Distributor Mallory Valve Covers Cast Aluminum Finish Black powder Coated Break-In Oil Includes 6 Quarts of Edelbrock SAE30 350-1070
NOTE: customer must add oil before start-upWarranty Manufacturers 2-Year, Unlimited Mileage ENGINE OIL: The engine is supplied with Edelbrock Break-In Oil in the crate. Before starting the engine, you will need to prime the oil system. Do not turn the engine over with starter motor for priming. Mark the distributor, as it comes preset on #1 cylinder. Then, remove and use a priming tool to turn the pump shaft.
Change the engine oil no more than 300 miles after break-in. Use of oil with zinc or a zinc additive for the life of your engine is recommended.
Part TypeEngine
BrandEDELBROCK
Package Height27.0
Package Width31.0
Package Length40.0
Weight430.0 PG
Part CategoryPerformance Parts
Wiring Harness IncludedYes
Spark Plug Wires IncludedNo
Cylinder Head MaterialAluminum
Air Cleaner IncludedNo
Carburetor IncludedNo
Carb Eo NumberN/A
Water Pump IncludedYes
EmissionNot Legal
Flexplate IncludedNo
AssembledYes
Engine Assembly StyleLong block
Intake Manifold IncludedYes
Engine Make/SizeFord Small Block
Flywheel IncludedNo
Engine TypeHigh-Performance Crate Engine
Rear Main Seal Style1-piece
Valve Covers IncludedYes
Horsepower503
Distributor IncludedYes
FinishBlack Powder Coated
Camshaft StyleHydraulic roller tappet
Engine Block MaterialCast iron
Cylinder Heads IncludedYes
Computer IncludedYes
Throttle Body IncludedYes
Harmonic Balancer IncludedYes
QuantitySold individually
Rpm Power RangeIdle-7800
Engine BalanceInternal
Oil Pan IncludedYes
Part FitmentSemi Universal
Engine Displacement347 ci.
Timing Cover IncludedYes
Spark Plugs IncludedNo
Vendor Part Number45363
Package Qty1
Package TypeEA
No Questions
No Reviews
Items You Need
![Break-In Oil, 10W30 [1 Quart, 32 oz.]](https://www.jegs.com/images/mini_200/500/555/555-28067.jpg)
Some parts are not legal for use in California or other states with similar laws / regulations
