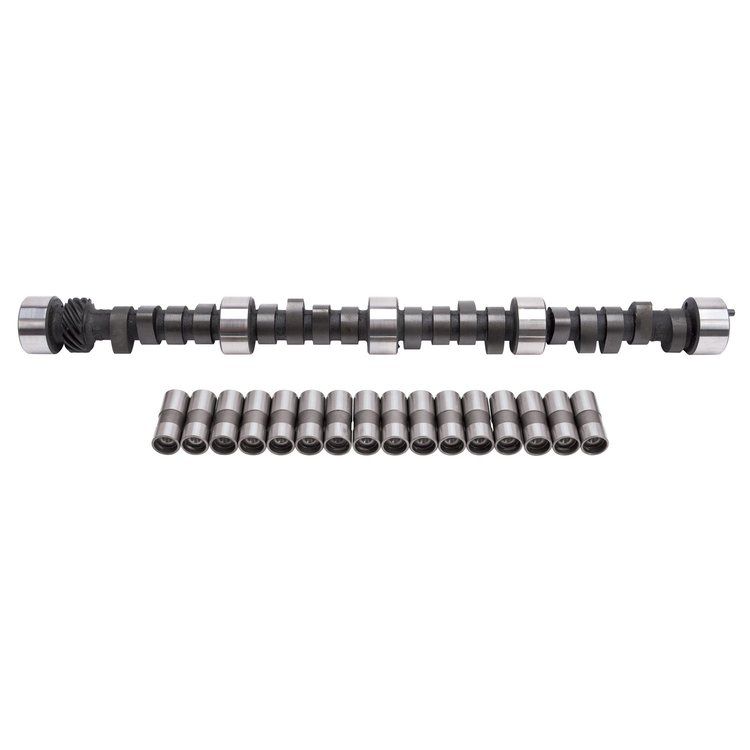

Torker-Plus Cam & Lifter Kit for Big Block Chevy

Vehicle Info Needed

EDELBROCKPART NUMBER: 350-5062

Torker-Plus Cam & Lifter Kit for Big Block Chevy

Name: Torker-Plus Cam & Lifter Kit for Big Block Chevy
Brand: EDELBROCK
SKU: 350-5062
Price: 505.95 USD
Availability: InStock

^$505⁹⁵

Ships on 09/09/2026

Lowest Price Guarantee

Chevy Big Block V8 396-502ci

Big Block Chevy 396-454ci
Lift: .527''/.553"
Duration @ .050: 224°/232°
Advertised Duration: 302°/304°

2500-6500 RPM Range

Operating Range	2500-6500 RPM
Duration Advertised	302° Intake/304° Exhaust
Duration @ .050'	224° Intake/232° Exhaust
Lift @ Valve	.527' Intake/.553' Exhaust
Lift @ Cam	.31' Intake/.325' Exhaust
Lobe Separation Angle	114°
Intake Centerline	109°
Intake Timing @ .050"	Open 2° BTDC Close 42° ABDC
Exhaust Timing @ .050"	Open 54° BBDC Close 2° ATDC

INSTALLATION NOTES:

Do not use late model timing chain and gear sets that are designed for emission-controlled engines. They are machined in a retarded position and are not recommended for this camshaft installation. Use Performer-Link Timing Chain Gear Set 350-7810 or Accu-Drive 350-7891.
Not for 1965-66 big-block Chevys requiring a grooved rear cam journal
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Part TypeCamshaft Kit

BrandEDELBROCK

Package Height3.7

Package Width7.9

Package Length26.6

Weight15.0 PG

Part CategoryPerformance Parts

Exh. Duration @ .050 In. (Deg)232

Cam StyleHydraulic flat tappet

Exh. Duration Advertised (Deg)304

Locks IncludedNo

Engine Make/SizeChevy Big Block (396-502)

Retainers IncludedNo

Intake Valve Lift With Factory Rocker Arm Ratio (I0.527

Int. Duration @ .050 In. (Deg)224

Assembly Lubricant IncludedYes

Basic Operating Rpm Range2,500-6,500

Pushrods IncludedNo

Gaskets IncludedNo

Rocker Arms IncludedNo

Intake Valve Lift0.527 in (13.386 mm)

Computer-Controlled CompatibleNo

Int. Duration Advertised (Deg)302

Lobe Separation (Deg)114

Rpm Range2000-9000

Lifter StyleHydraulic flat tappet

Advertised Duration302 int./304 exh.

Exhaust Valve Lift With Factory Rocker Arm Ratio (0.553

Valve Springs IncludedNo

UsageStreet/Performance

Valve Lift With Factory Rocker Arm Ratio0.527 int./0.553 exh.

QuantitySold as a kit

Valve Stem Seals IncludedNo

Exhaust Valve Lift0.553 in (14.046 mm)

Advertised Intake Duration302

Intake Duration At 050 Inch Lift224

Exhaust Duration At 050 Inch Lift232

Timing Chain And Gears IncludedNo

Advertised Exhaust Duration304

Lifter TypeHydraulic Flat Tappet

Part FitmentSemi Universal

Duration At 050 Inch Lift224 int./232 exh.

Valve Springs RequiredYes

Lifters IncludedYes

Vendor Part Number5062

Package Qty1

Package TypeEA

No Questions

No Reviews

Please click here to download the instructions PDF file
