Ford 289-302-347ci Small Block V8

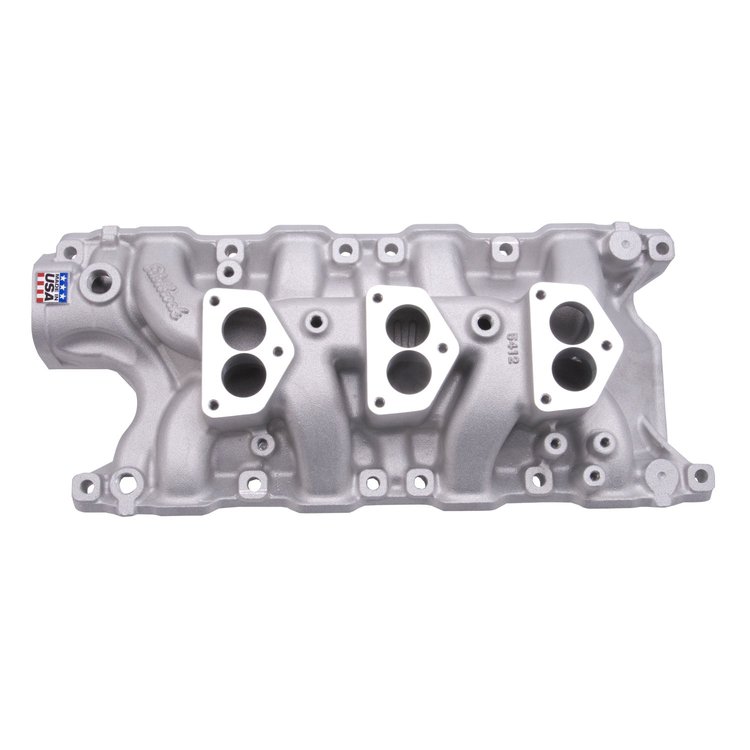

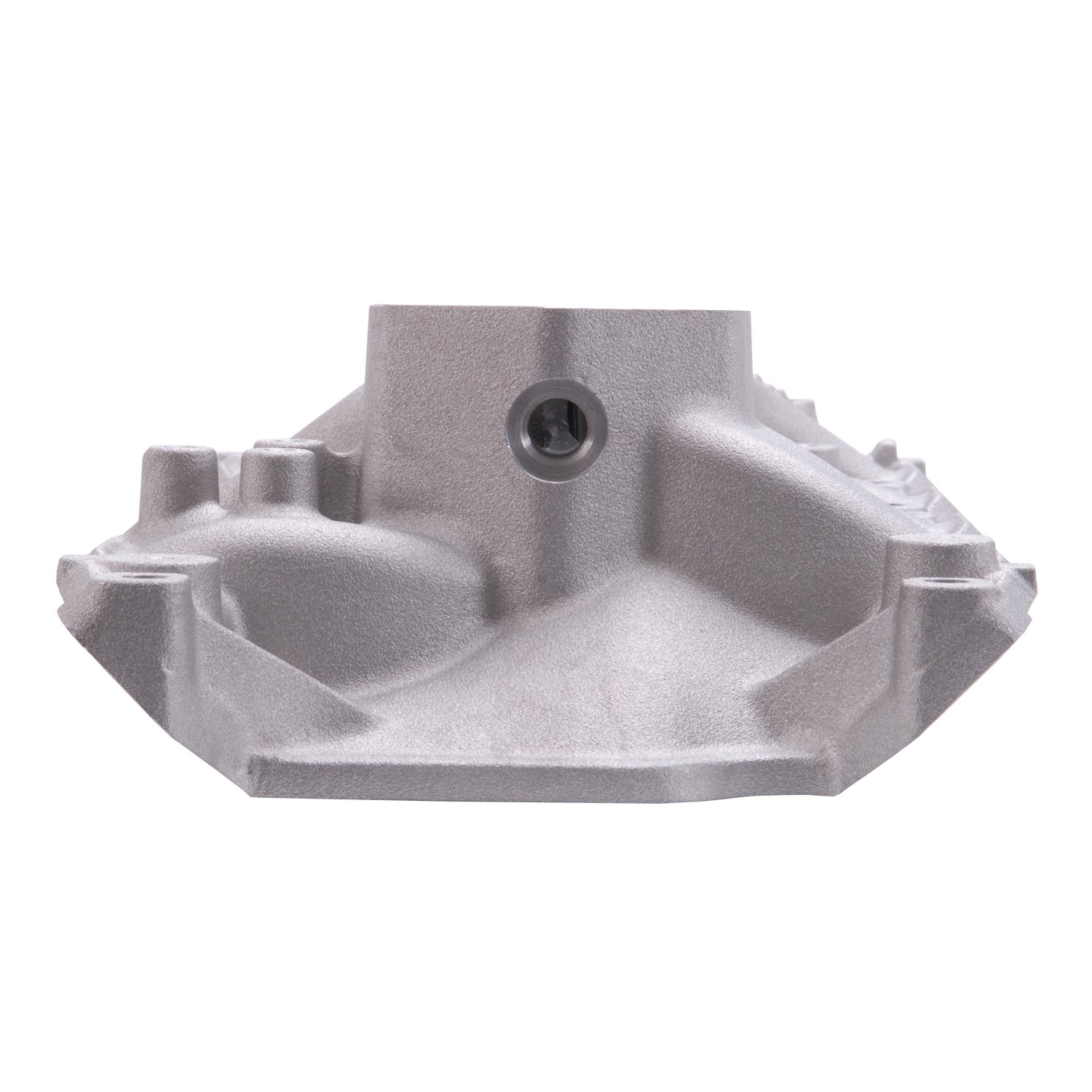

- Performer 289 Triple Deuce Intake Manifold
- Small Block Ford 289-302ci
- 3x2 Carburetor Flange
- Idle-5500 RPM Range
This intake is designed for 289-302-347 small-block Fords (Non-EGR) for triple-deuce applications. This manifold offers excellent performance out-of-the-box as well as a great vintage look. Use with Edelbrock 94 p/n 350-1151 and p/n 350-1152 carbs, progressive throttle linkage p/n 350-1033 and chrome air cleaners p/n 350-1202for great driveability and looks. Match with our Performer-Plus cam p/n 350-2122 for low-end torque.The 3-bolt carb flange has 1.25' machined bores and 4.81' spacing.
Installation Notes: - Recommended intake gasket: Edelbrock p/n 350-7220.
- Manifold height: A-3.93', B-4.56'
- Carb pad height: 4.25' Click here to determine carburetor pad height
- Port exit dimensions: 1.04' x 1.86'
Carburetor Recommendations: (1) Edelbrock 94 p/n 350-1151 and (2) Edelbrock 94 p/n 350-1152.
Part TypeIntake Manifold
BrandEDELBROCK
Package Height5.7
Package Width11.4
Package Length21.8
Weight17.04 PG
Part CategoryPerformance Parts
Engine Block StyleStock/OEM standard Deck
UsageStreet/Hi-Performance
Number Of CarbsThree
Intake MaterialAluminum
PositionN/A
Intake StyleThree 2-barrels
EmissionWithout EGR
QuantitySold individually
Cylinder Head TypeStandard
Intake FinishNatural
Carburetor QuantityThree
Engine Make/SizeFord Small Block 302
Intake Section IncludedComplete
Basic Operating Rpm RangeIdle-5,500
EgrWithout EGR
Rpm RangeIdle-6200
Vendor Part Number5412
Package Qty1
Package TypeEA
