Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

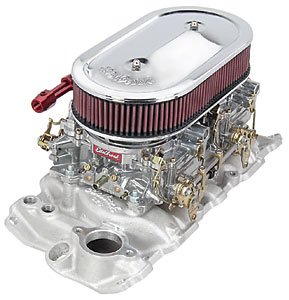

Small Block Ford
- Small Block Ford 289-302ci
- F-28 Dual Quad Intake Manifold
- 500 cfm Perfomer Carburetors
- 1500-6500 RPM Range
- Satin Finish
Designed for 289-302 c.i.d. Ford V8s. This manifold offers excellent performance as well as a hot looking package. With two Edelbrock carbs in-line, progressive throttle linkage and braided fuel line, this low-profile design allows adequate hood clearance and maintains great driveability. Mounting bosses for throttle cable brackets make the F-28 suitable for late-model applications. Use Performer-Plus cam #350-2122 for low-end torque or Torker-Plus cam #350-5022 for top-end power.
Installation Notes - Recommended Intake Gasket: JEGS p/n 555-210200
- Carb center to carb center distance: 6-7/16'
- Port exit dimensions: 1.03' x 1.92'
- Manifold height: (A) 3.90' , (B) 4.75'
- Carb pad height = 4.32' Click here to determine carburetor pad height
Kit Includes - Edelbrock Intake Manifold 350-5435
- Edelbrock Throttle Linkage 350-7094
- Edelbrock Fuel Line 350-8088
- Edelbrock Carburetors 350-1404 (Qty. 2)
- Edelbrock Air Cleaner 350-1235
- Jegs Intake Manifold Gaskets 555-210200
- Jegs Intake Bolts555-83210
- Jegs Carburetor Stud Kits 555-15840 (Qty. 2)
Part TypeIntake Manifold
BrandEDELBROCK
Part CategoryPerformance Parts
Package Qty1
Package TypeEA
No Questions
No Reviews
