Vehicle Info NeededEDELBROCKPART NUMBER: 350-60599

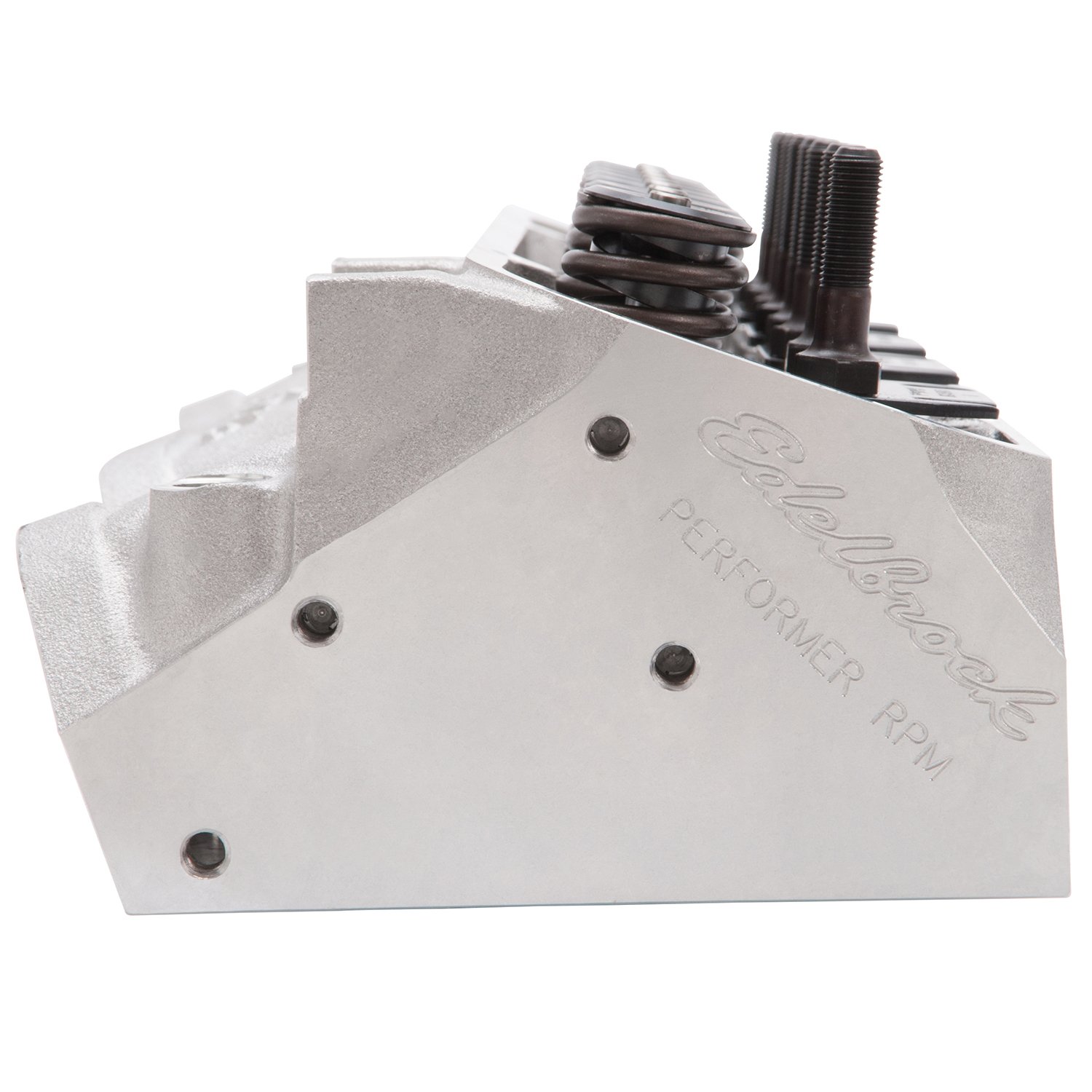

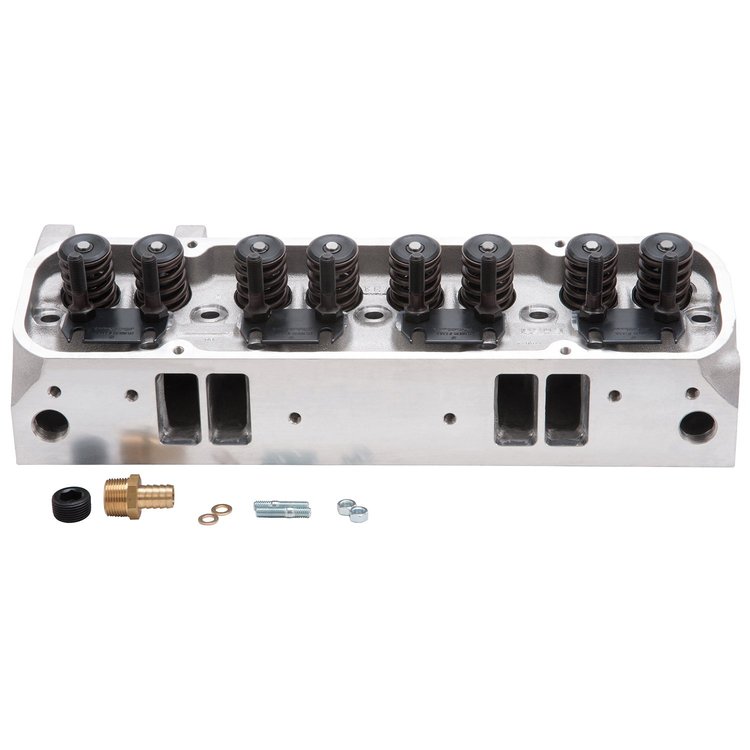

Performer RPM Cylinder Head for Pontiac V8
$1,49195
6 left in stock
Ships Today
Lowest Price GuaranteePontiac Performer RPM Aluminum Cylinder Heads
- Pontiac Performer RPM Cylinder Head
- 1962-1979 Pontiac 389-455ci
- Valve Springs for Hydraulic Flat Tappet
- Round Exhaust Port (Ram Air)
- Port Volume: 215cc/175cc
- Valve Size: 2.11"/1.66"
- 72cc Combustion Chambers
- Assembled, Sold Each
These cylinder heads are designed for outstanding performance gains in 1962-1979 389-455 c.i.d. Pontiac engines. They are patterned after the 1969-70 Ram Air IV Pontiac cylinder head with the 72cc combustion chamber for higher compression engines.
Tech Tip: These heads require Ram Air IV (round port) style exhaust manifolds or headers and Edelbrock head bolt kit 350-8549.
To gain more spark plug clearance, Edelbrock recommends using Champion RC Series plugs, such as the RC12YC. They are 0.230' shorter than conventional spark plugs and have a 5/8' hex for easier access.Combustion Chamber Volume: 72cc Intake Runner Volume: 215cc Exhaust Runner Volume: 175cc Intake Valve Diameter: 2.11' Exhaust Valve Diameter: 1.66' Valve Stem Diameter: 11/32' Valve Guides: Manganese Bronze Deck Thickness: 5/8' Valve Spring Diameter: 1.46' Valve Spring Maximum Lift: 0.575' Rocker Stud: 7/16' Guideplate: Hardened Steel Pushrod Diameter: 5/16' Valve Angle: 14° Exhaust Port Location: Stock Ram Air IV Spark Plug Fitment: 14mm x 3/4' Reach,
Gasket SeatValve Lift Intake Exhaust .100' 71 69 .200' 143 120 .300' 208 151 .400' 253 173 .500' 264 191 .600' 286 199 .700' N/A N/A Flow Numbers as tested by Edelbrock's SuperFlo SF-1020 flow bench @ 28' H2O Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCylinder Head
BrandEDELBROCK
Package Height8.9
Package Width11.4
Package Length26.0
Weight36.95 PG
Retainers IncludedYes
Guideplates IncludedYes
Oiling StyleThrough pushrod
Valve Seats MachinedYes
Heat CrossoverYes
Number Of Springs Per ValveSingle
Damper Spring IncludedYes
Cylinder Head TypeStandard
Valve Stem Seals IncludedYes
Intake Valve Diameter2.11 in (53.594 mm)
Valve Guide MaterialManganese bronze
Outside Diameter Of Outer Spring1.46 in (37.1 mm)
Steam Holes DrilledNo
Rocker Arm Studs IncludedYes
Retainer MaterialSteel
Cnc-Machined Combustion ChamberNo
Exhaust Valve Diameter1.66 in (42.164 mm)
Part CategoryPerformance Parts
Cylinder Head MaterialAluminum
Intake Port LocationStandard
Rocker Arm Nut Thread Size (In.)7/16"-20
EmissionNon-Emissions
Exhaust Valves IncludedYes
Locks IncludedYes
Engine Make/SizePontiac 326-455
Lock Style7 degree
Rocker Arms IncludedNo
Rocker Arm Nuts IncludedNo
Cylinder Head FinishNatural
Intake Valve Angle14
Maximum Valve Lift0.575 in (14.605 mm)
Valve Seat MaterialDuctile iron
FinishCast Aluminum
Valve Springs IncludedYes
UsageStreet/Performance
Valve Seat Machine Style3-angle
Valve Guides IncludedYes
Cnc-Machined Intake RunnerNo
Intake Valves IncludedYes
QuantitySold individually
Accessory Bolt Holes DrilledYes
Exhaust Runner Volume (Cc)175
Exhaust Port LocationStandard
TypeComplete
Combustion Chamber Volume (Cc)72
Machined For O-RingNo
PreparationBolt On (Not Required)
Cylinder Head StyleAssembled
Part FitmentSemi Universal
Valve Cover Mounting StylePerimeter bolt
Valve Stem Seal StylePositive stop
Intake Runner Volume (Cc)215
Cnc-Machined Exhaust RunnerNo
Vendor Part Number60599
Package Qty1
Package TypeEA
