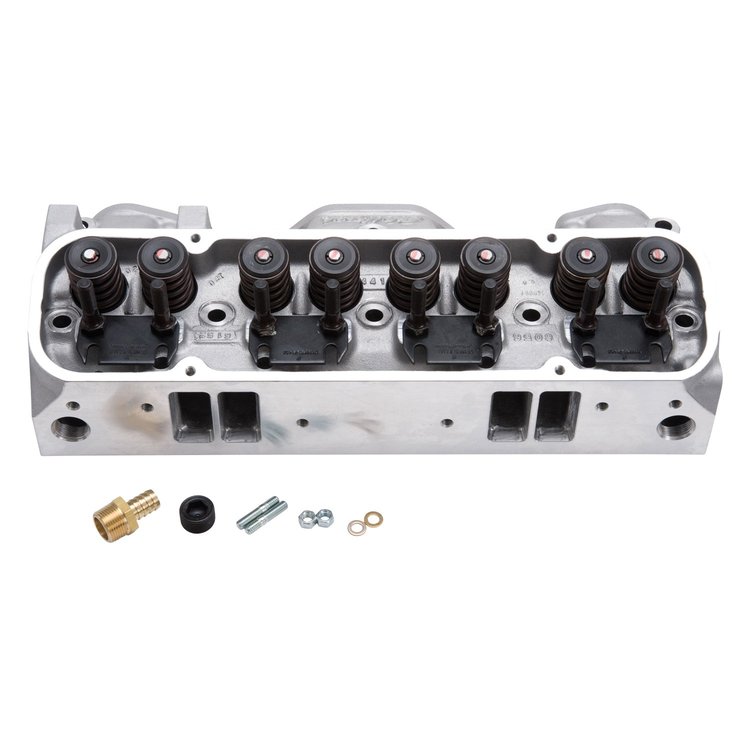

Vehicle Info NeededPerformer RPM CNC Cylinder Head for Pontiac V8
Ships Today
Lowest Price Guarantee- Pontiac Performer RPM Cylinder Head
- 1962-1979 Pontiac 389-455ci
- Valve Springs for Hydraulic Roller
- Round Exhaust Port (Ram Air)
- Port Volume: 215cc/175cc
- Valve Size: 2.11"/1.66"
- 72cc Combustion Chambers
- Assembled, Sold Each
Performer RPM CNC Cylinder Heads have the same specifications as the popular Performer RPM cylinder heads for 389-455 Pontiac engines, but feature a CNC machined combustion chamber. The CNC machined chamber results in a consistent and precise chamber for improved flow performance. Performer RPM CNC cylinder heads are available in two chamber sizes. The 87cc chamber version is ideal for 9.5:1 engines and will deliver excellent street performance on low octane fuel. Performer RPM CNC cylinder heads with 72cc chambers are best for higher compression engines. Both are patterned after the same port flange configuration as the 1969-1970 Ram-Air IV Pontiac Cylinder Head.
INSTALLATION NOTE: These heads require Ram Air IV (round port) style exhaust manifolds or headers and Edelbrock head bolt kit 350-8549. Match with Edelbrock complete head gasket set 350-7382.Combustion Chamber Volume: 87cc Intake Runner Volume: 215cc Exhaust Runner Volume: 175cc Intake Valve Diameter: 2.11' Exhaust Valve Diameter: 1.66' Valve Stem Diameter: 11/32' Valve Guides: Manganese Bronze Deck Thickness: 5/8' Valve Spring Diameter: 1.46' Valve Spring Maximum Lift: 0.575' Rocker Stud: 7/16' Guideplate: Hardened Steel Pushrod Diameter: 5/16' Valve Angle: 14° Exhaust Port Location: Stock Ram Air IV Spark Plug Fitment: 14mm x 3/4' Reach,
Gasket SeatEmissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
