Vehicle Info NeededEDELBROCKPART NUMBER: 350-60899

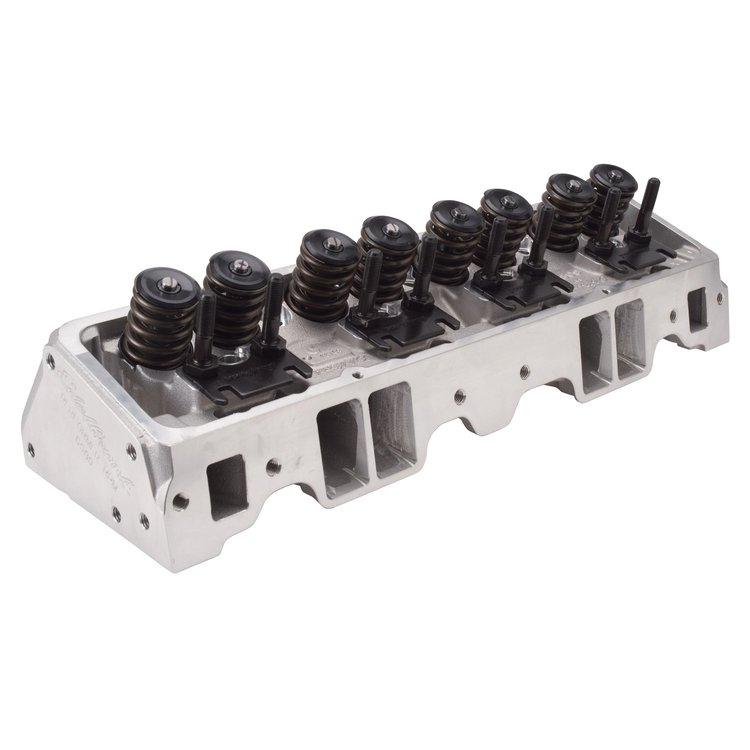

Performer RPM Cylinder Head for Small Block Chevy
$1,36895
5 left in stock
Ships Today
Lowest Price GuaranteePerformer RPM Small Block Aluminum Straight Plug Cylinder Heads
- 1986 & Earlier Small Block Chevy 302-400ci
- Valve Springs for Hydraulic Flat Tappet
- Port Volumes: 195cc/65cc
- Combustion Chamber size: 64cc
- Valve Sizes: 2.02"/1.60"
- Straight Spark Plug
- Assembled, Sold Each
Designed for non-emissions 302, 327, 350 and 400 c.i.d. engines up to 1986, these heads made 420 horsepower with the Performer RPM Power Package for small-block Chevys. Hardened pushrods are required.
Installation Notes: When using stock rockers on SB-Chevy Performer & Performer RPM heads, .100' longer than stock pushrods are required. Due to valve-to-cylinder bore interference, SB-Chevy heads may not be used on engines with less than 4' bore (262, 265, 283, 305, 307 c.i.d.) except with camshafts having less than .450' valve lift.
Tech Tip: To gain more spark plug clearance, Edelbrock recommends using Champion RC Series plugs such as the RC12YC (P/N 192-49776). They are 0.230' shorter than a conventional spark plug and have a 5/8' hex for easier access.Combustion Chamber Volume: 64cc Intake Runner Volume: 195cc Exhaust Runner Volume: 65cc Intake Valve Diameter: 2.02' Exhaust Valve Diameter: 1.60' Valve Stem Diameter: 11/32' Valve Guides: Manganese Bronze Deck Thickness: 9/16' Valve Spring Diameter: 1.46' Valve Spring Maximum Lift: 0.575' Rocker Stud: 3/8' Guideplate: Hardened Steel Pushrod Diameter: 5/16' Valve Angle: 23° Exhaust Port Location: Stock Spark Plug Fitment: 14mm x 3/4' Reach,
Gasket SeatValve Lift Intake Exhaust .100' 63 51 .200' 124 94 .300' 181 128 .400' 227 146 .500' 253 157 .600' 253 163 .700' N/A N/A Flow Numbers as tested by Edelbrock's SuperFlo SF-1020 flow bench @ 28' H2O Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCylinder Head
BrandEDELBROCK
Package Height7.3
Package Width10.7
Package Length22.1
Weight30.1 PG
Retainers IncludedYes
Guideplates IncludedYes
Oiling StyleThrough pushrod
Valve Seats MachinedYes
Heat CrossoverNo
Number Of Springs Per ValveSingle
Spark Plug StyleStraight
Damper Spring IncludedYes
Cylinder Head TypeStandard
Valve Stem Seals IncludedYes
Intake Valve Diameter2.02 in (51.308 mm)
Valve Guide MaterialManganese bronze
Outside Diameter Of Outer Spring1.46 in (37.1 mm)
Steam Holes DrilledNo
Rocker Arm Studs IncludedYes
Retainer MaterialSteel
Cnc-Machined Combustion ChamberNo
Exhaust Valve Diameter1.6 in (40.64 mm)
Part CategoryPerformance Parts
Cylinder Head MaterialAluminum
Intake Port LocationStandard
EmissionNon-Emissions
Exhaust Valves IncludedYes
Locks IncludedYes
Engine Make/SizeChevy Small Block (262-400)
Lock Style7 degree
Rocker Arms IncludedNo
Rocker Arm Nuts IncludedNo
Cylinder Head FinishNatural
Intake Valve Angle23
Maximum Valve Lift0.575 in (14.605 mm)
Valve Seat MaterialPowdered metal
FinishCast Aluminum
Valve Springs IncludedYes
UsageStreet/Performance
Valve Seat Machine Style3-angle
Valve Guides IncludedYes
Cnc-Machined Intake RunnerNo
Intake Valves IncludedYes
QuantitySold individually
Accessory Bolt Holes DrilledYes
Exhaust Runner Volume (Cc)65
Exhaust Port LocationStandard
TypeComplete
Combustion Chamber Volume (Cc)64
Machined For O-RingNo
PreparationBolt On (Not Required)
Cylinder Head StyleAssembled
Part FitmentSemi Universal
Valve Cover Mounting StylePerimeter bolt
Valve Stem Seal StylePositive stop
Intake Runner Volume (Cc)185
Cnc-Machined Exhaust RunnerNo
Vendor Part Number60899
Package Qty1
Package TypeEA
