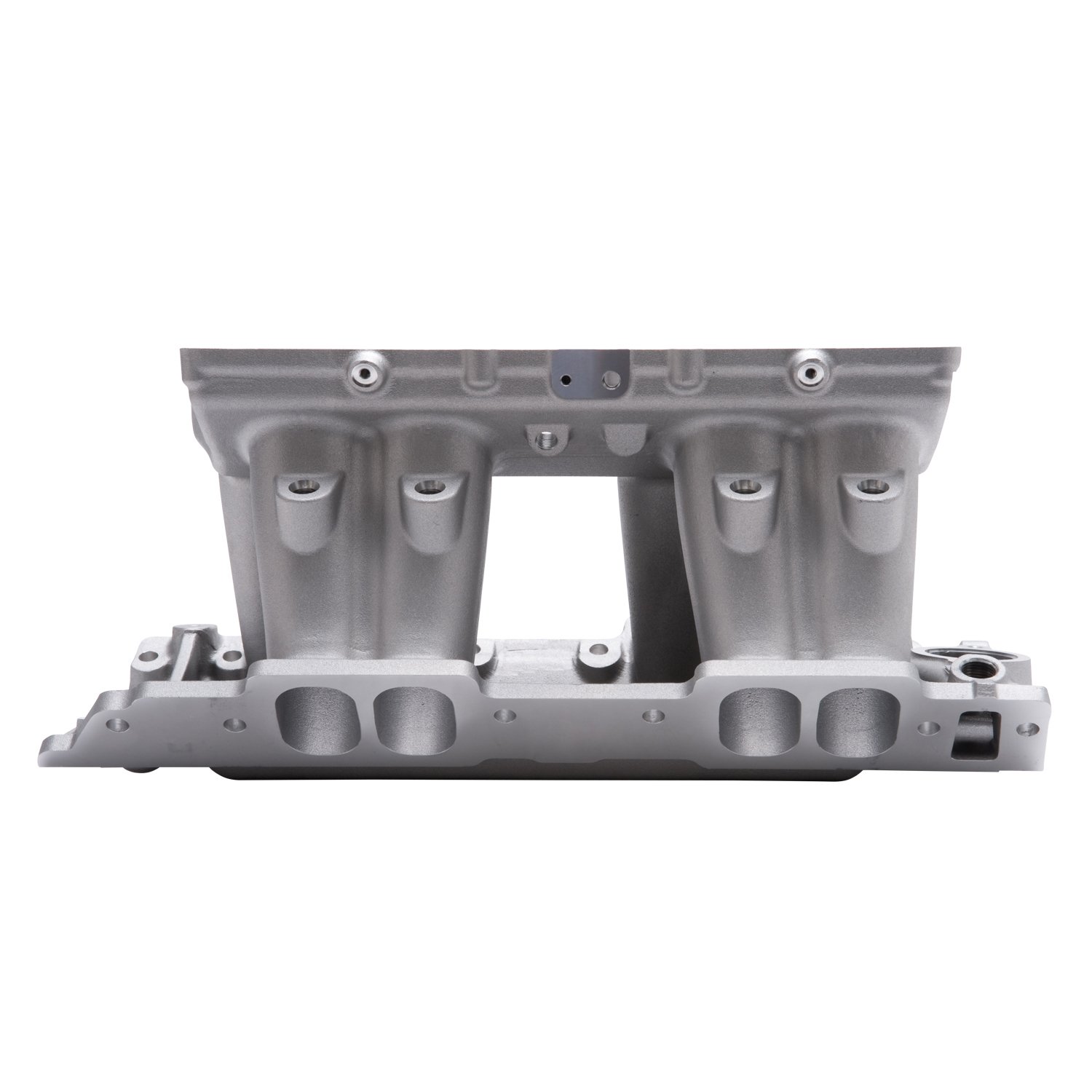

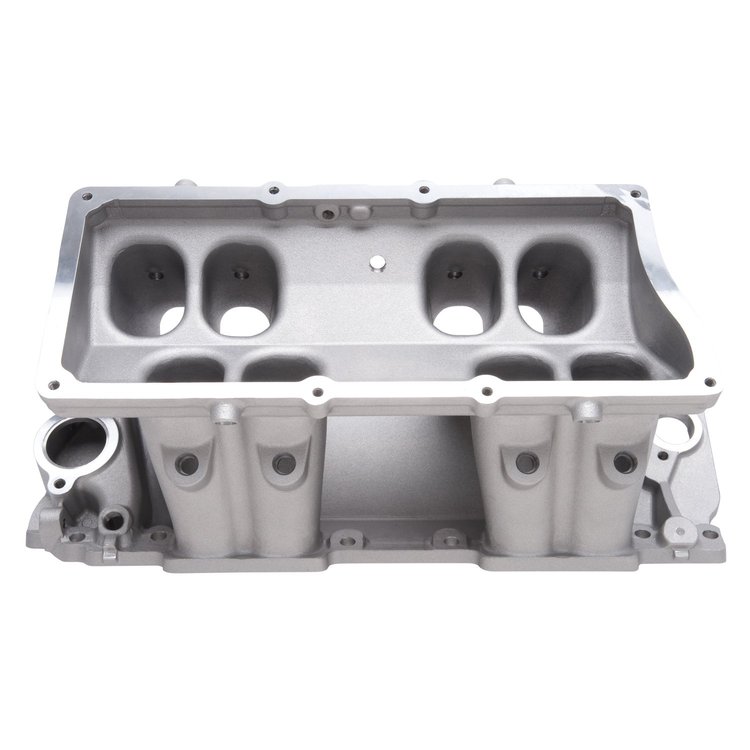

Vehicle Info NeededVictor Tunnel Ram Intake Manifold Base Big Block Chevy EFI
Ships on 09/09/2026
Lowest Price Guarantee- Victor Tunnel Ram Intake Manifold Base
- Big Block Chevy
- Rectangle Port Heads
- 4500-8500 RPM Range
This Victor Tunnel Ram is a modern updated design to the very successful Victor Ram 2-R Tunnel Ram, which was first released over 35 years ago. It's designed for use with 468-582 c.i.d. standard-deck Chevrolet V8 engines with conventional rectangular port cylinder heads. This new and improved design has 7" long runners with close to 5.5 square-inches at the plenum, making it 25% larger than the current Victor Ram 2-R Tunnel Ram base. This is the ideal intake manifold for any modern high horsepower demanding application.
Installation notes- Big Block Chevy Standard Deck (9.8")
- Manifold Height: 10.75"
- Port Exit Dimensions: 1.78" x 2.5"
- Carb Center to Carb Center Distance: 9.4"
- Generous Port Exits: R=1.44", F=1.06", W=1.78", H=2.5"
- Recommended intake gasket; Jegs 555-210100 or Fel-Pro 375-1275
- Fuel Rail Kit 350-3659
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Items You Need
