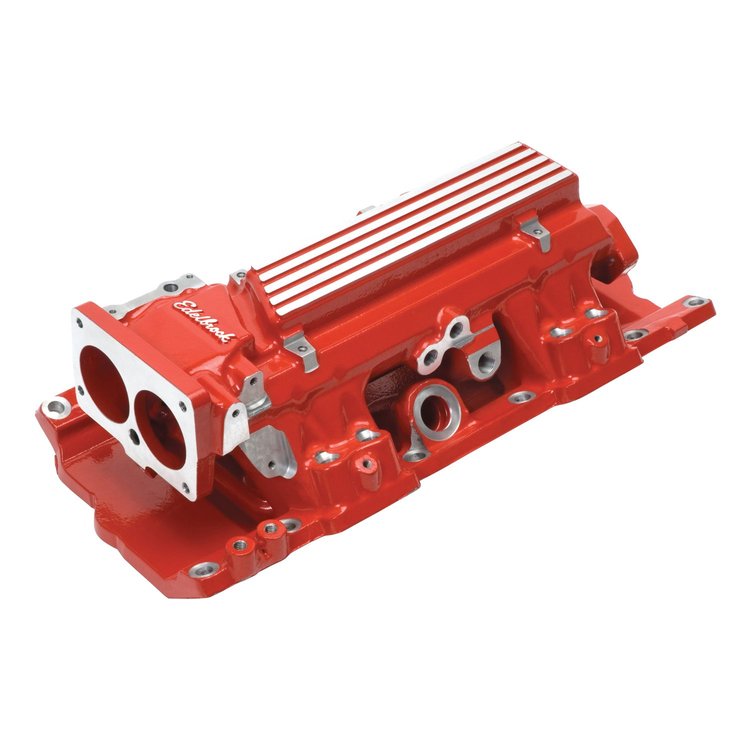

Performer RPM Air-Gap LT1/LT4
- 1996-97 LT4
- 1992-1997 LT1 (Needs Port Matching)
- Red Powder Coated Finish
This intake is designed for 1994-95 LT4 engines but will also fit the 1992-97 LT1 engines with LT4 style cylinder heads. It is port matched to the factory LT4 cylinder heads and Edelbrock RPM XT 350-61939 heads. This intake may also be used with Edelbrock Performer LT1 cylinder heads 350-61909 or factory/OEM cylinder heads but gasket matching is recommended for optimum performance.Installation Notes:
- Port exit dimensions: 2.12" x 1.20"
- Recommended intake gaskets: Edelbrock 350-7244 or Chevrolet Performance 809-12367777
- Requires 94-96 Late Model Fuel rails
- 1992-93 LT1 Recommended throttle bodies:
Twin 52mm Throttle Body - BBK 129-1540
Twin 58mm Throttle Body - BBK 129-1542 - 1994-97 LT1/LT4 Recommended throttle bodies:
Twin 52mm Throttle Body - Edelbrock 350-3809 or BBK 129-1543
Twin 58mm Throttle Body - Edelbrock 350-3810 or BBK 129-1544
Part TypeIntake Manifold
BrandEDELBROCK
Package Height12.5
Package Width14.0
Package Length24.8
Weight22.95 PG
Part CategoryPerformance Parts
Runners RemovableNo
Number Of CarbsNone, For Fuel Injection
Supplemental Bosses Cast-InNo
Plenum MaterialAluminum
EmissionWithout EGR
Engine Make/SizeChevy Small Block LS1
Basic Operating Rpm Range1,500-6,500
Base FinishRed powdercoated
Rpm Range1500-6500
Injection StyleMulti-port
Base MaterialAluminum
Plenum FinishNatural
Aftermarket Fuel Rail RequiredNo
Engine Block StyleStock/OEM standard Deck
UsageStreet/Hi-Performance
Throttle Body IncludedNo
PositionN/A
QuantitySold individually
Cylinder Head TypeLT4
Injectors IncludedNo
Fuel Rails IncludedNo
Intake Section IncludedComplete
EgrYes
Supplemental Bosses MachinedNo
Runners IncludedYes
Vendor Part Number7109
Package Qty1
Package TypeEA
