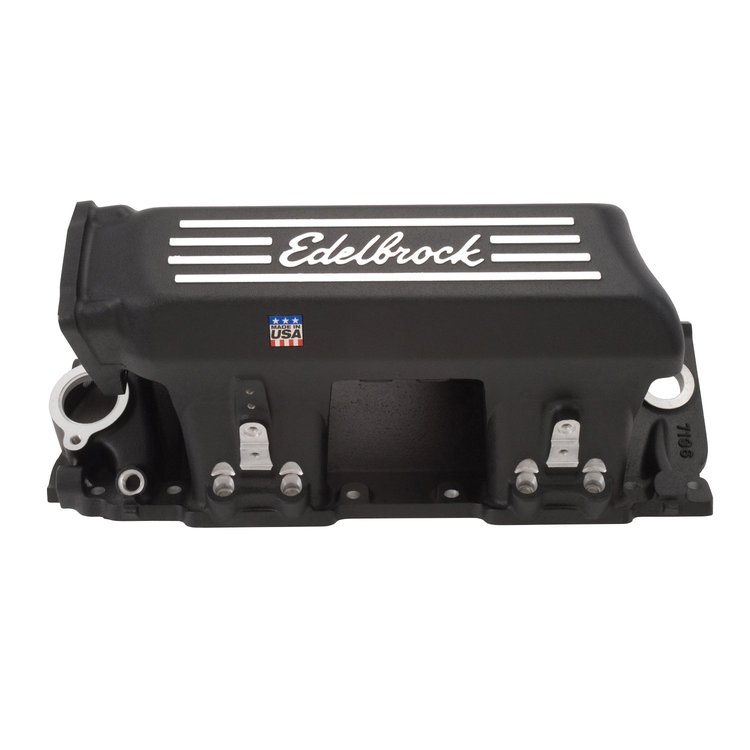

Vehicle Info NeededPro-Flo XT EFI Intake Manifold BB-Chevy
Ships on 09/08/2026
Lowest Price Guarantee- Pro-Flo XT EFI Intake Manifold
- Big Block Chevy
- Rectangle Port Heads
- 1500-6500 RPM Range
- Black Powder Coated Finish
This Pro-Flo XT intake is engineered for high performance 396-502 c.i.d. Chevy V8's with rectangular-port cylinder heads. A large plenum and tapered runners deliver maximum horsepower and broad torque throughout the rpm range of 1500-6500 rpm). It features a 90mm throttle body opening for maximum performance
Installation Notes - Manifold Dimensions: (A) 9.80", (B) 10.00", (C) 17.80', (D) 0.00', (E) 10°
- Manifold not equipped with EGR.
- Recommended intake gasket: Jegs p/n 555-210101
- Throttle Body Recommendations: Edelbrock Pro-Flo XT Throttle Bodies p/n 350-3869 or p/n 350-38693
- Standard LS1 throttle bodies can also be used with Edelbrock adapter p/n 350-2737
- Compatible with Edelbrock BB-Chevy Oval-Port XT fuel rail kit p/n 350-3658
- Compatible with Pico or standard style injectors
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Since founder Vic Edelbrock Sr. began building performance intake manifolds in 1938, Edelbrock has grown into one of the most trusted names in American high-performance parts, from carburetors and intake manifolds to cylinder heads, crate engines, and EFI systems. JEGS has spent decades supplying Edelbrock components to racers, engine builders, and street enthusiasts, backing this extensive lineup with in-house technical support, fast shipping, and a Price Match Guarantee so you can choose proven Edelbrock parts with confidence.
Fuel Injection with Performance and Style!
Edelbrock Pro-Flo XT is engineering at it's finest with the introduction of these EFI intake manifolds. The Pro-Flo XT intakes are engineered with a large plenum and long tapered runners to deliver maximum horsepower and a broad torque throughout the rpm range. Accepts a front mount 90mm throttle body that feeds the intake all the air it needs for maximum performance. Aesthetics are also a major consideration in the design, offering enthusiasts custom looks and choice of as-cast aluminum or black powder coated finish with contrast machine.
| Click Here for Intake Manifold Dimensions |
