Vehicle Info NeededEDELBROCKPART NUMBER: 350-7140

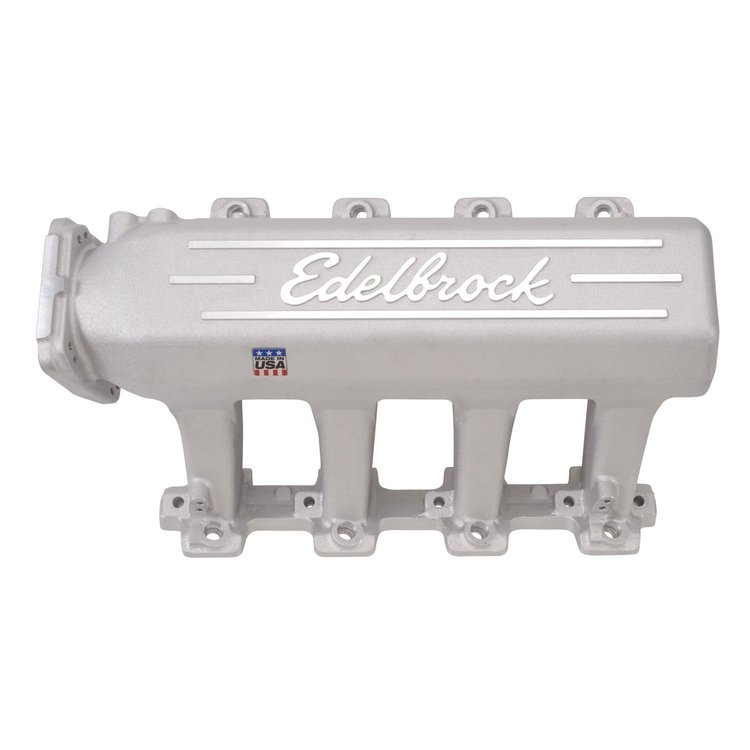

Pro-Flo XT EFI Intake Manifold LS2
$89595
3 left in stock
Ships Today
Lowest Price GuaranteeChevy LS Pro-Flo XT EFI
- Pro-Flo XT EFI Intake Manifold
- GM LS2
- Cathedral Port
- EFI Intake
- 1500-7000 RPM Range
- Satin Finish
Designed for Chevy LS2 motors with OE LS2 or equivalent throttle body. - Manifold Dimensions: (A) 9.70", (B) 10.00", (C) 16.90', (D) 3.10', (E) 15°
- Port Exit Height: 2.75'
- Manifold not equipped with EGR.
Installation Notes: - Uses LS1/LS6 style individual port O-ring seals. Recommended JEGS Intake Gasket: 555-210800
- Throttle Body Recommendations: Will accept OEM GM 90mm or use Edelbrock Pro-Flo XT Throttle Bodies p/n 350-3869 or p/n 350-38693
- Compatible with Edelbrock LS-Series XT fuel rail kit p/n 350-3629
- Compatible with Pico or standard style injectors
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeIntake Manifold
BrandEDELBROCK
Package Height15.6
Package Width16.1
Package Length24.1
Weight23.8 PG
Part CategoryPerformance Parts
Throttle Body Bore Size (Mm)90
Runners RemovableNo
Number Of CarbsOne
Supplemental Bosses Cast-InYes
Plenum MaterialAluminum
EmissionWithout EGR
Engine Make/SizeGM LS
Basic Operating Rpm Range1,500-7,000
Base FinishNatural
Rpm Range1500-6500
Injection StyleMulti-port
Supplemental Boss QuantityEight
Base MaterialAluminum
Plenum FinishNatural
Aftermarket Fuel Rail RequiredYes
Engine Block StyleStock/OEM standard Deck
UsageRacing
Throttle Body IncludedNo
PositionN/A
QuantitySold individually
Cylinder Head TypeStandard
Injectors IncludedNo
Fuel Rails IncludedNo
Intake Section IncludedComplete
EgrWithout EGR
Supplemental Bosses MachinedYes
Runners IncludedYes
Part FitmentSemi Universal
Vendor Part Number7140
Package Qty1
Package TypeEA
