EDELBROCKPART NUMBER: 350-7156PK

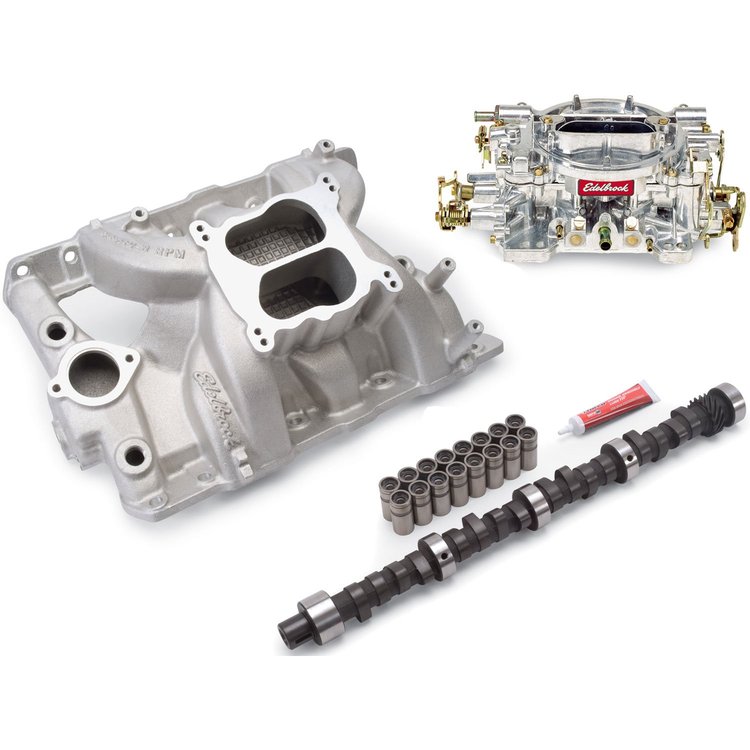

Pontiac Performer RPM Power Package
$1,41385
Pontiac 326-455
- Intake Manifold, Carburetor and Camshaft Kit
- 1965-1979 Pontiac 326-455ci
- 1500-6500 RPM Range
- Satin Finish
Designed for 1965-Up street 326-455ci Pontiac V8s (except Ram Air V). Can also be used for high-performance marine applications.Designed for 1965-Up street 326-455ci Pontiac V8s (except Ram Air V). Can also be used for high-performance marine applications.
Power Package includes matching: - Performer RPM Pontiac Intake 350-7156
- Performer RPM Cam and Lifter Kit 350-7157
- Performer 750 cfm Carburetor w/Manual Choke 350-1407
Installation Notes: - Port exit dimensions: 1.10' x 2.06'
- Manifold height: (A) 6.88' , (B) 8.00'
- Carb pad height = 7.45' (This intake is 1.25' taller than stock)
- 555-210600
- Has clearance for HEI distributor
- Will not fit under Trans-Am shaker hood without modifications.
- For 1968-71, use Edelbrock 350-8015 bracket.
Cam Specs
Operating Range 1500-6500 RPM Duration Advertised 308° Intake/320° Exhaust Duration @ .050' 231° Intake/240° Exhaust Lift @ Valve .470' Intake/.470' Exhaust Lift @ Cam .313' Intake/.313' Exhaust Lobe Separation Angle 113.5° Intake Centerline 112° Intake Timing @ .050" Open 3° BTDC
Close 48° ABDCExhaust Timing @ .050" Open 54° BBDC
Close 6° ATDCEmissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeIntake Manifold/Carburetor Kit
BrandEDELBROCK
Part CategoryPerformance Parts
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
