Made in USA

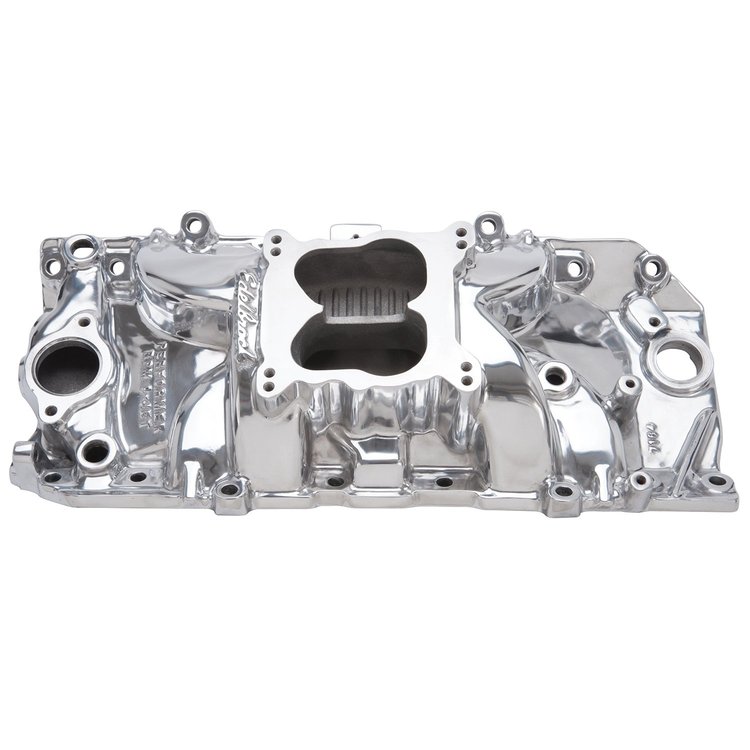

Performer RPM Q-Jet Intake Manifold Big Block Chevy 396-502 (Oval Port)
Product Discontinued
EDELBROCKPART NUMBER: 350-71641

Performer RPM Q-Jet Intake Manifold Big Block Chevy 396-502 (Oval Port)

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Chevy 396-502ci Big Block V8
    Performer RPM Q-Jet Intake Manifold
  • Big Block Chevy 396-502
  • Oval Port Heads
  • Spread Bore 4-bbl Carb Flange (Non-EGR)
  • 1500-6500 RPM Range
  • Polished Finish

    Designed especially for spread-bore carburetors on street 396-502ci Chevy V8s with large oval-port (1975 & earlier). These manifolds offer the latest technology in dual-plane high rise design. No provisions for hot air style chokes. Accepts divorced choke, late-model waterneck, air-conditioning, alternator and HEI equipment. Will not fit under stock hood of Corvette, 1965-67 Chevelle, or 1967-81 Camaro. Carb pad will accept square-bore carbs without adapter.

    Installation Notes:
  • Port exit dimensions: 1.61" x 1.93"
  • Manifold height: (A) 4.45" , (B) 6.00"
  • Carb Pad Height: 5.22" Click here to determine carburetor pad height.
  • Recommended intake gasket; JEGS p/n 555-210102
  • For divorced choke applications use Edelbrock Automatic Divorced Choke Rod p/n 350-9178.

    Since founder Vic Edelbrock Sr. began building performance intake manifolds in 1938, Edelbrock has grown into one of the most trusted names in American high-performance parts, from carburetors and intake manifolds to cylinder heads, crate engines, and EFI systems. JEGS has spent decades supplying Edelbrock components to racers, engine builders, and street enthusiasts, backing this extensive lineup with in-house technical support, fast shipping, and a Price Match Guarantee so you can choose proven Edelbrock parts with confidence.

    Broad 1500-6500 RPM Range Ideal for Street or Competition

    For ultimate street performance, bolt on an Edelbrock Performer RPM Intake Manifold. A dual plane, high-rise design makes incredible power to 6500 RPM with streetable torque for great throttle response. Larger plenums and runners match the free-flowing exhaust, high-lift camshafts, and other modifications of high-output engines (especially Performer RPM Cams and Cylinder Heads that optimize performance). These intakes are not for emissions-equipped engines.

    Show More

    JEGS Easy Kits are designed by JEGS professionals so you get all the parts you need.

Part TypeIntake Manifold
Product LineEdelbrock Performer RPM Intake Manifolds & Kits for Chevrolet
BrandEDELBROCK
Package Height6.0
Package Width11.4
Package Length23.9
Weight18.95 PG
Part CategoryPerformance Parts
Engine Block StyleStock/OEM standard Deck
UsageStreet/Hi-Performance
Number Of CarbsOne
Intake MaterialAluminum
PositionN/A
Intake StyleDual plane
EmissionWithout EGR
QuantitySold individually
Cylinder Head TypeOval Port- Large
Intake FinishPolished
Carburetor QuantityOne
Engine Make/SizeChevy Big Block (396-502)
Intake Section IncludedComplete
Basic Operating Rpm Range1,500-6,500
EgrWithout EGR
Rpm Range1500-6500
Vendor Part Number71641
Package Qty1
Package TypeEA
