Vehicle Info NeededEDELBROCKPART NUMBER: 350-7194

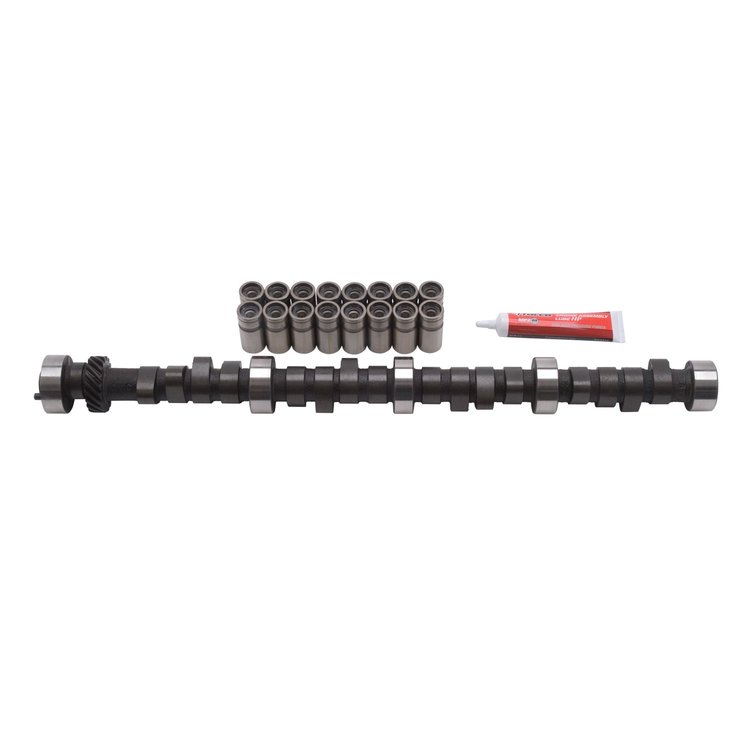

Performer RPM Camshaft Kit for Big Block Chrysler
$54095
1 left in stock
Ships Today
Lowest Price GuaranteeChrysler
- Performer RPM Camshaft Kit
- Big Block Chrysler 383-440ci
- Lift: .480''/.495''
- Duration @ .050: 238°/246°
- Advertised Duration: 300°/308°
- 1500-6500 RPM Range
INSTALLATION NOTES:Operating Range 1500-6500 RPM Duration Advertised 300° Intake/308° Exhaust Duration @ .050' 238° Intake/246° Exhaust Lift @ Valve .480' Intake/.495' Exhaust Lift @ Cam .320' Intake/.330' Exhaust Lobe Separation Angle 110° Intake Centerline 105° Intake Timing @ .050" Open 14° BTDC
Close 44° ABDCExhaust Timing @ .050" Open 58° BBDC
Close 8° ATDCVacuum @ 1000RPM Idle 10" - Do not use late model timing chain and gear sets that are designed for emission-controlled engines. They are machined in a retarded position and are not recommended for this camshaft installation. Use Performer-Link Timing Chain Gear Set 350-7804.
- Do not use dual valve springs. Use recommended Edelbrock valve springs 350-5792.
- Use stock ratio rocker arms only.
- Adjustable pushrods or rocker arms required, for 1968-later.
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft and Lifter Kit
BrandEDELBROCK
Package Height4.1
Package Width7.9
Package Length26.3
Weight15.15 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)246
Cam StyleHydraulic flat tappet
Exh. Duration Advertised (Deg)308
Locks IncludedNo
Engine Make/SizeMopar 383-440
Retainers IncludedNo
Intake Valve Lift With Factory Rocker Arm Ratio (I0.48
Int. Duration @ .050 In. (Deg)238
Assembly Lubricant IncludedYes
Basic Operating Rpm Range1,500-6,500
Pushrods IncludedNo
Gaskets IncludedNo
Rocker Arms IncludedNo
Intake Valve Lift0.48 in (12.192 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)300
Lobe Separation (Deg)110
Rpm Range1000-7000
Lifter StyleHydraulic flat tappet
Advertised Duration300 int./308 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.495
Valve Springs IncludedNo
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.480 int./0.495 exh.
Camshaft Gear Attachment1-bolt
QuantitySold as a kit
Valve Stem Seals IncludedNo
Exhaust Valve Lift0.495 in (12.573 mm)
Advertised Intake Duration300
Intake Duration At 050 Inch Lift238
Exhaust Duration At 050 Inch Lift246
Timing Chain And Gears IncludedNo
Advertised Exhaust Duration308
Lifter TypeHydraulic Flat Tappet
Part FitmentSemi Universal
Duration At 050 Inch Lift238 int./246 exh.
Valve Springs RequiredYes
Lifters IncludedYes
Vendor Part Number7194
Package Qty1
Package TypeEA
